Doors - Rear: Regulator-Window: Removal
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the trim panel from the inside of the rear door (Refer to BODY/DOORS - REAR/TRIM PANEL - REMOVAL) .
- Position the watershield out of the way and using the regulator, move the rear door glass up or down as required to access the two window regulator glass clamp bolts (Refer to BODY/DOORS - REAR/DOOR GLASS - REMOVAL) .
- Loosen the bolt in each of the window regulator glass clamps far enough to release the door glass from the clamps.
- Disengage the door glass from the window regulator glass clamps and lift the glass out of the regulator clamps and into its full up position, then tape the glass securely into place.

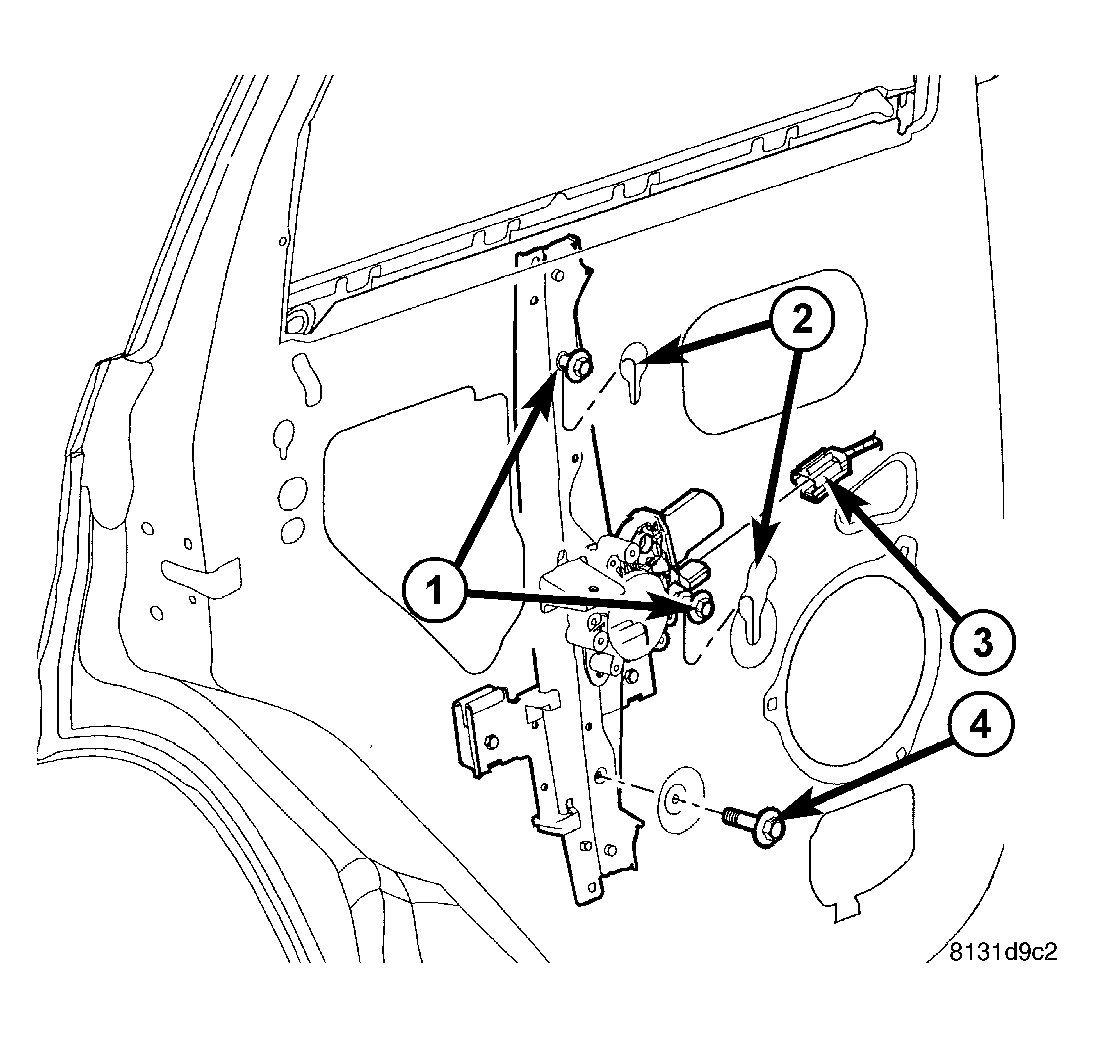

- Remove the bolt (4) that secures the bottom of the window regulator to the inside of the door.
- Loosen the two bolts (1) that secure the regulator to the keyed holes (2) on the inside of the door.
- Lift the regulator upward within the door far enough to disengage the bolts from the two keyed holes in the door.
- Lower the regulator within the door far enough to access and disconnect the wire harness connector (3) from the regulator motor through the large access hole in the door and remove the regulator.
