Doors - Rear: Glass: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

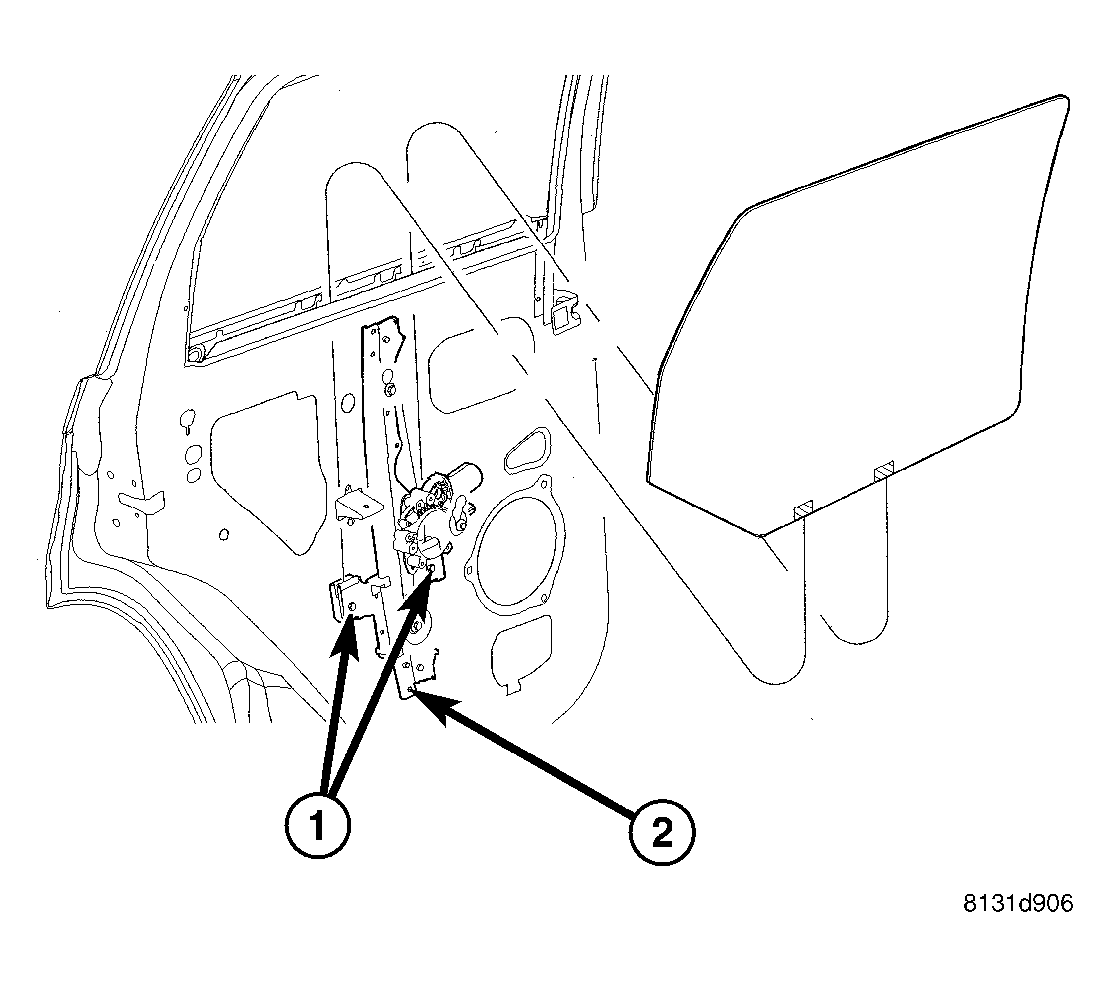

Fig 1: Removing/Installing Rear Door Glass
GC0027875Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the outer belt weatherstrip from the rear door.
  2. Remove the trim panel from the inside of the rear door (Refer to BODY/DOORS - REAR/TRIM PANEL - REMOVAL) .
  3. If equipped, remove the speaker from the inside of the rear door (Refer to ELECTRICAL/AUDIO/SPEAKER - REMOVAL) .
  4. Remove the watershield from the inside of the rear door (Refer to BODY/DOORS - REAR/WATERSHIELD - REMOVAL) .
  5. Using the regulator (2), move the rear door glass up or down as required to access the two window regulator glass clamp bolts (1).
  6. Loosen the bolt in each of the window regulator glass clamps far enough to release the door glass from the clamps.
  7. Disengage the door glass from the window regulator glass clamps.
  8. Lower the regulator down as required for access to remove the door glass.
  9. Carefully rotate the door glass within the window opening and remove the glass from the door through the window opening.
