Doors - Rear: Channel-Glass: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

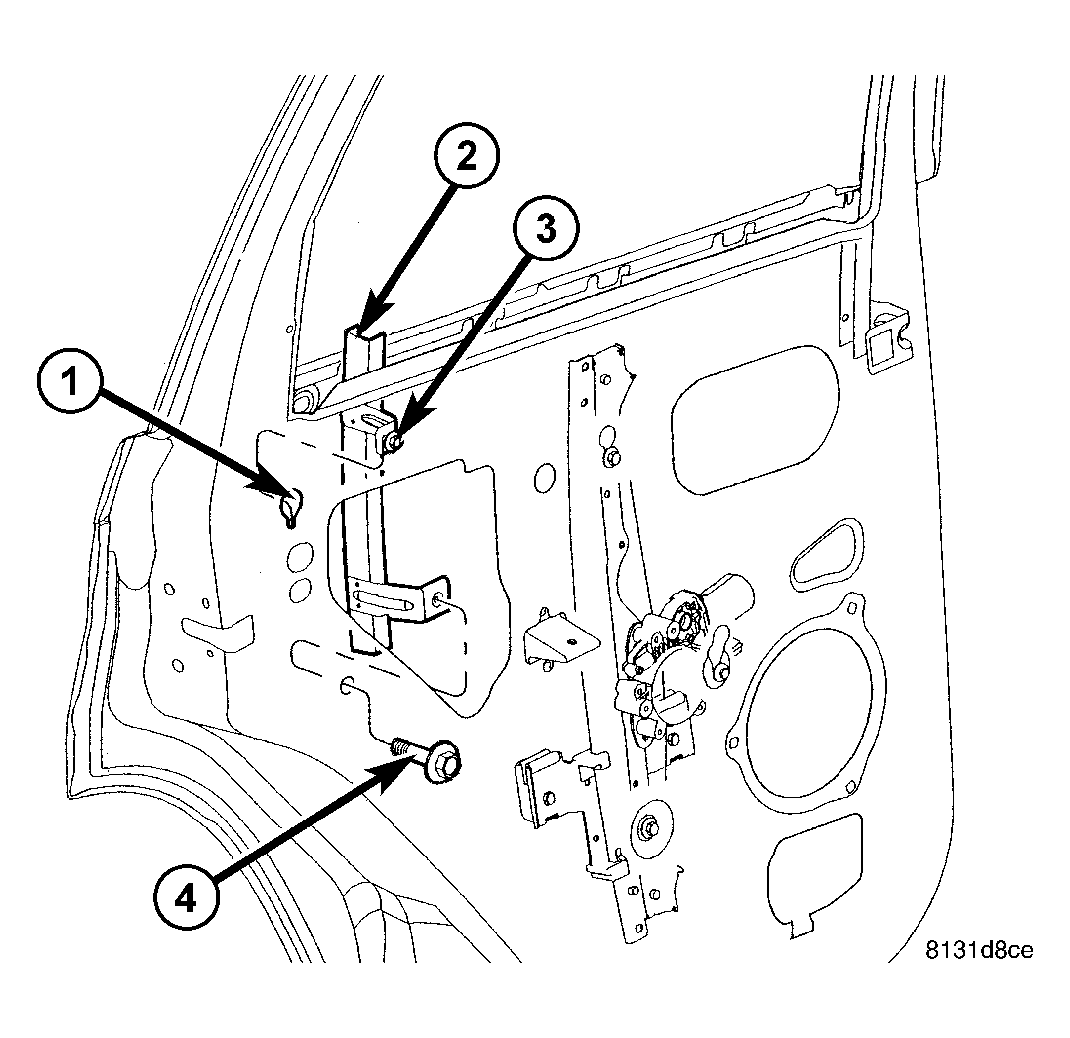

Fig 1: Removing/Installing Rear Door Glass Channel
GC0027871Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the rear door glass (Refer to BODY/DOORS - REAR/DOOR GLASS - REMOVAL) .
  2. Remove the weatherstrip from the rear glass run channel (2).
  3. Loosen the bolt (3) that secures the top of the rear glass run channel to the keyed hole on the inside door panel.
  4. Remove the bolt (4) that secures the bottom of the run channel to the inside door panel.
  5. Lift the rear glass run channel upward within the door far enough to disengage the bolt that secures the top of the run channel to the keyed hole on the inside door panel.
  6. Remove the rear glass run channel from the door.
