Door - Front: Glass: Removal
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

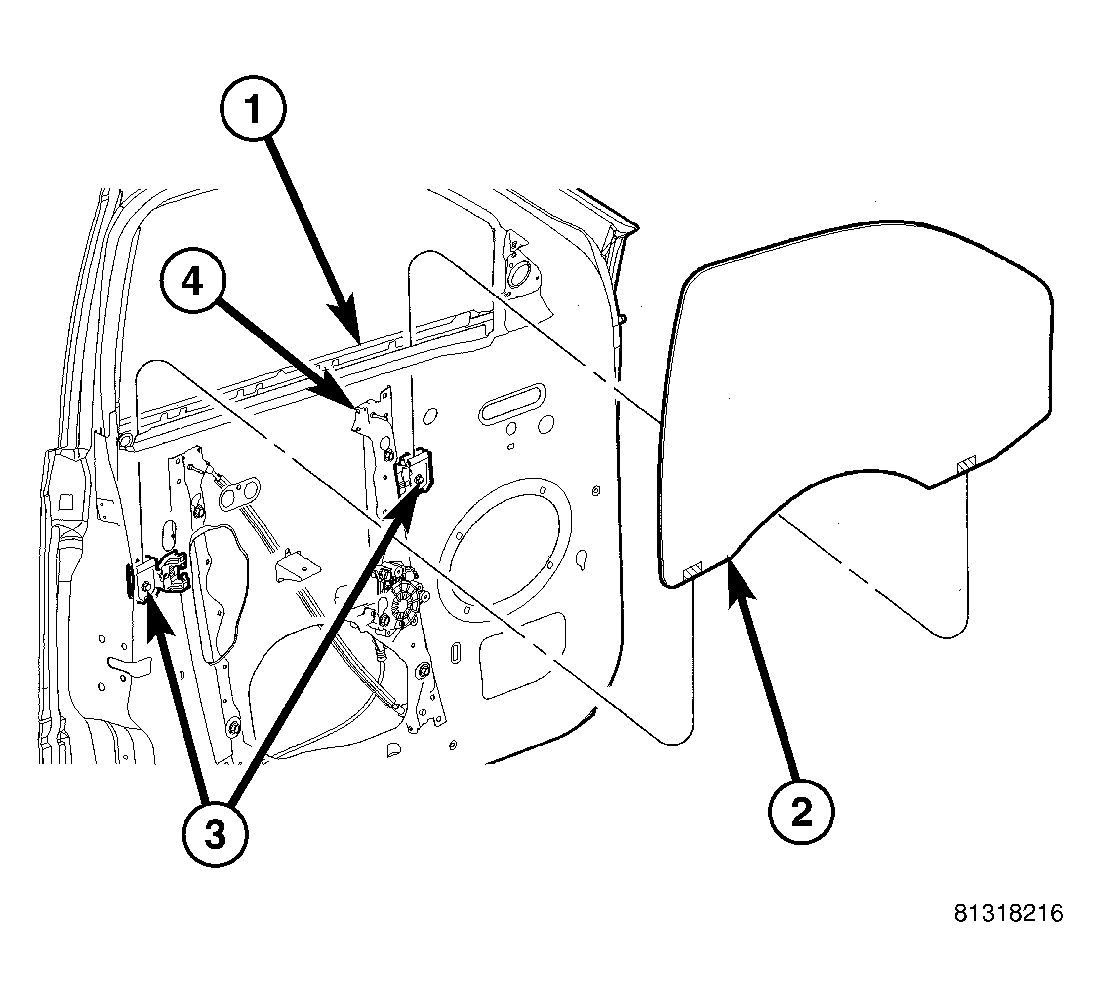

- Remove the outer belt weatherstrip (1) from the front door.
- Remove the trim panel from the inside of the front door (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
- Remove the speaker from the inside of the front door (Refer to ELECTRICAL/AUDIO/SPEAKER - REMOVAL) .
- Remove the watershield from the inside of the front door (Refer to BODY/DOOR - FRONT/WATERSHIELD - REMOVAL) .
- Using the regulator (4), move the front door glass (2) up or down as required to access the two window regulator glass clamp bolts (3).
- Loosen the bolt in each of the window regulator glass clamps far enough to release the door glass from the clamps.
- Disengage the door glass from the window regulator glass clamps.
- Lower the regulator down as required for access to remove the door glass.
- Carefully rotate the door glass within the window opening and remove the glass from the door through the window opening.
