Door - Front: WATERSHIELD: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

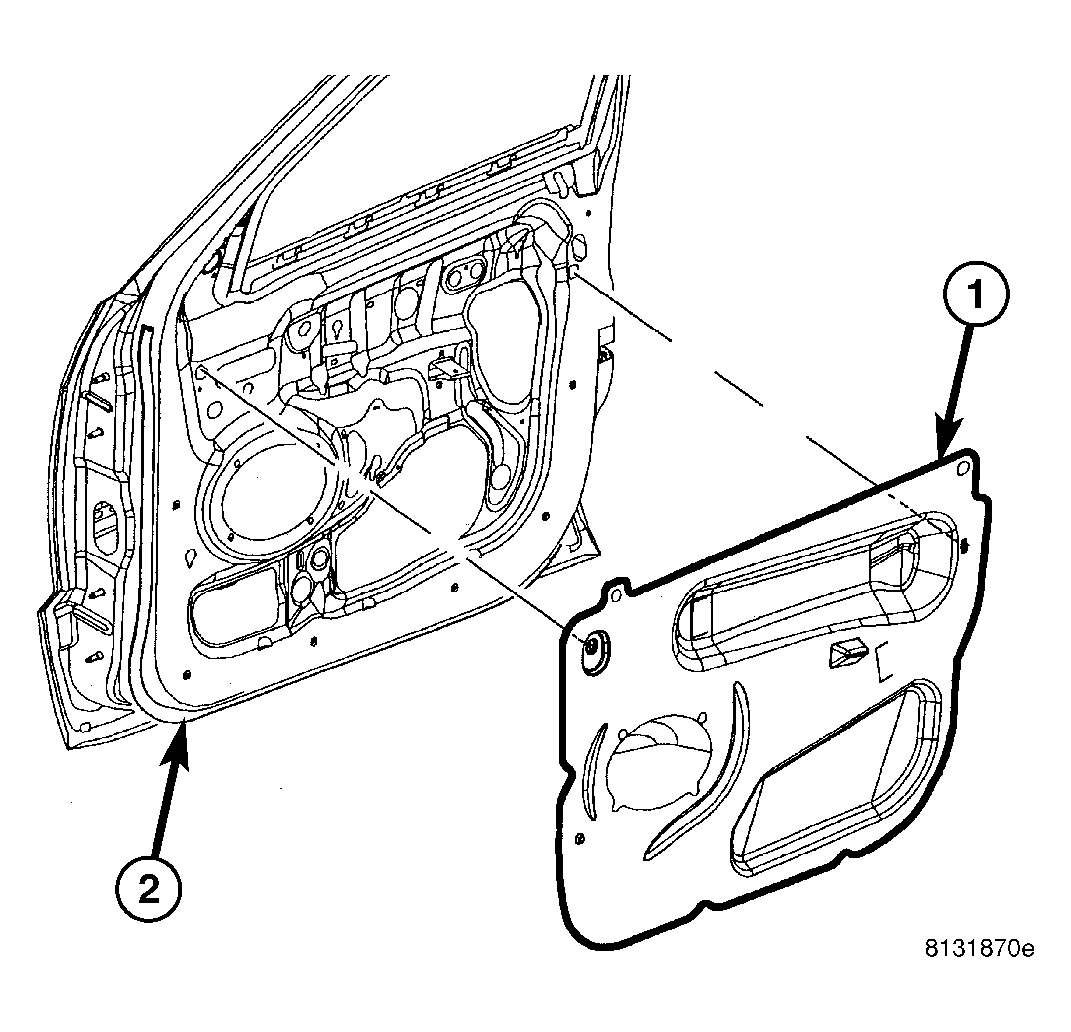

Fig 1: Removing/Installing Watershield
GC0027870Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the trim panel from the inside of the front door (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
  2. Remove the speaker from the inside of the front door (Refer to ELECTRICAL/AUDIO/SPEAKER - REMOVAL) .
    CAUTION: Do not allow the watershield adhesive to become contaminated with dirt or other foreign substances. If the watershield becomes contaminated or damaged, replace it.
  3. Carefully remove the watershield (1) from around the perimeter of the door (2).
  4. Separate the watershield from the interior handle actuator rod and the door wire harness and remove the watershield.
