Door - Front: Channel-Glass: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

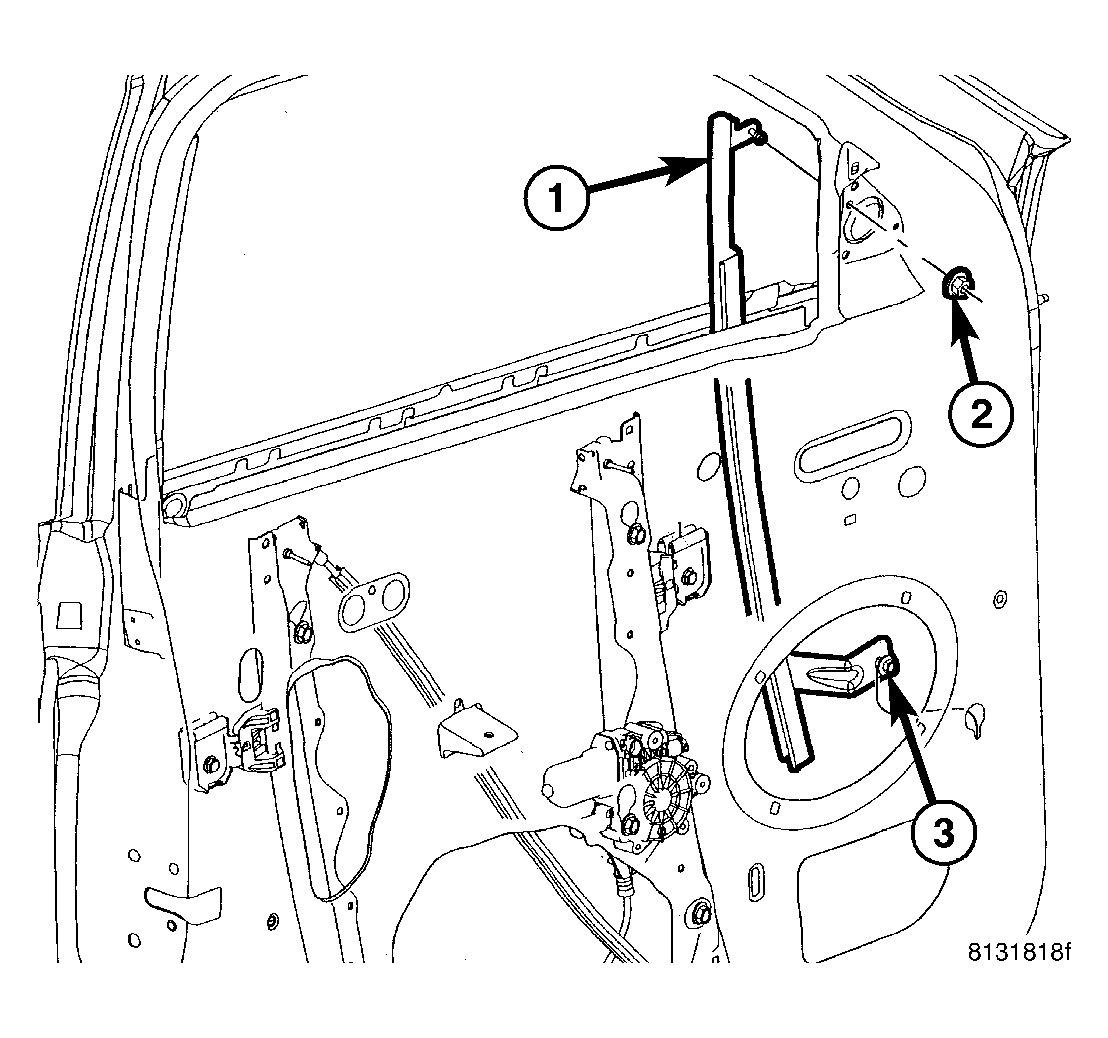

Fig 1: Removing/Installing Front Glass Run Channel
GC0027857Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the outside rearview mirror (Refer to BODY/EXTERIOR/OUTSIDE REARVIEW MIRROR - REMOVAL) .
  2. Remove the front door glass (Refer to BODY/DOOR - FRONT/DOOR GLASS - REMOVAL) .
  3. Remove the weatherstrip from the front glass run channel.
  4. Remove the nut (2) that secures the top of the front glass run channel (1) to the inside door panel.
  5. Loosen the nut (3) that secures the bottom of the run channel to the keyed hole on the inside door panel.
  6. Lift the front glass run channel upward within the door far enough to disengage the nut that secures the bottom of the run channel to the keyed hole on the inside door panel.
  7. Remove the front glass run channel from the door.
