Lower Control Arm: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

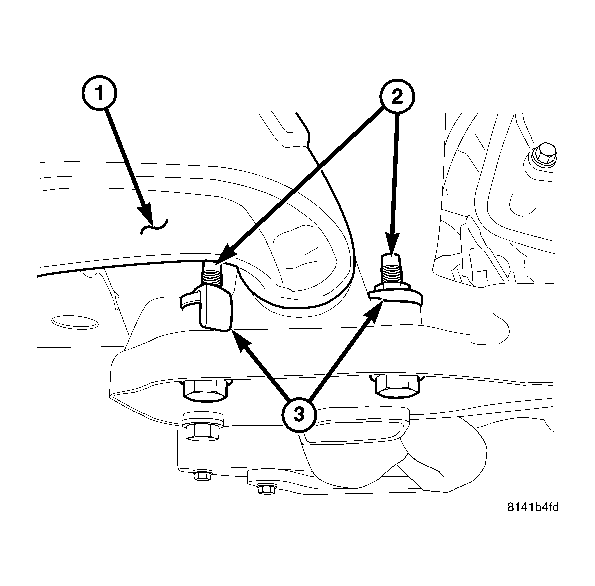

Fig 1: Lower Control Arm Rear Bolts

Courtesy of DAIMLERCHRYSLER CORP.

1 - LOWER CONTROL ARM

2 - BOLTS

Position the lower suspension arm into the frame rail bracket.
Install the rear bolts for the lower control arm to the frame, Tighten to 142 N.m (105 ft lbs).

Install the nut and bolt for the front of the lower control arm Tighten to 169 N.m (125 ft lbs).

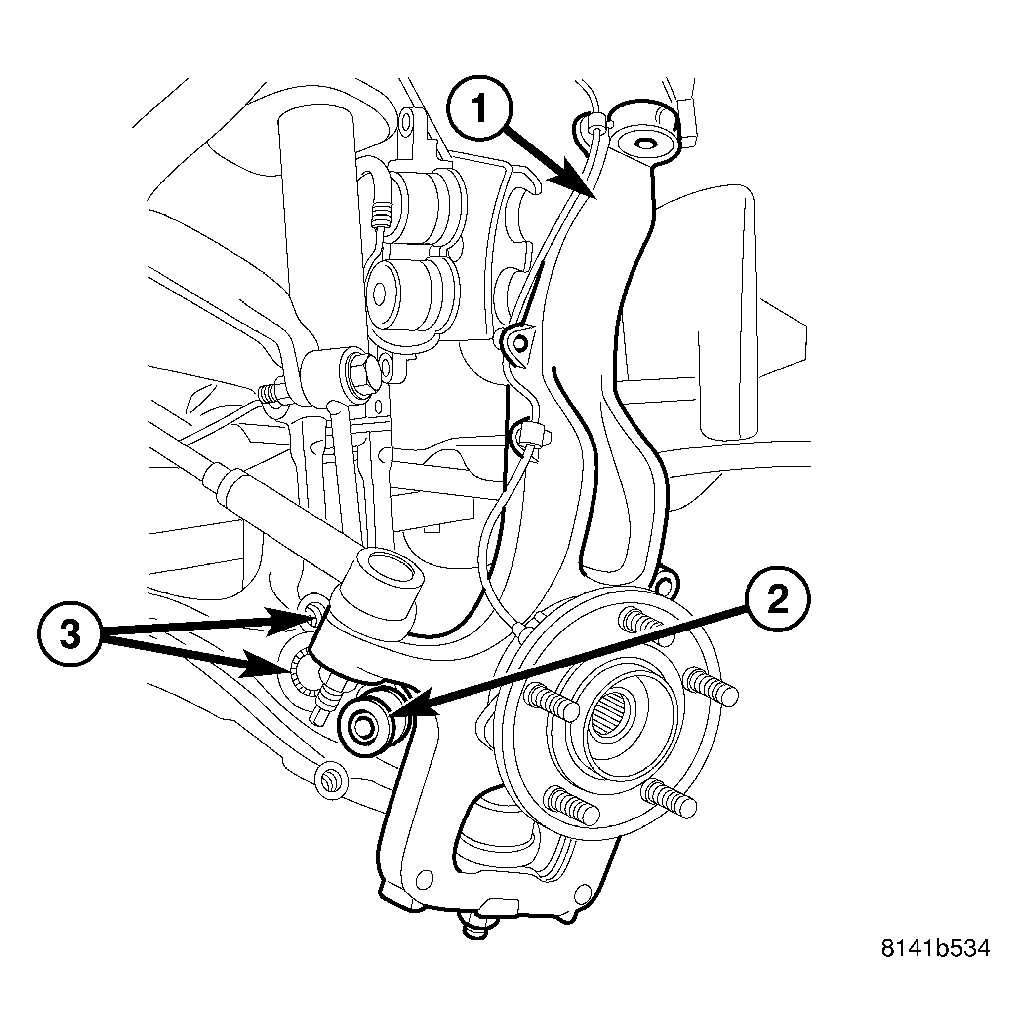

Fig 2: Suspension Lowered

Courtesy of DAIMLERCHRYSLER CORP.

1 - KNUCKLE

2 - CLEVIS BRACKET AND BUSHING

3 - STABILIZER LINK

Install the lower clevis bolt (2) at the lower control arm and tighten to 88 N.m (65 ft. lbs.).

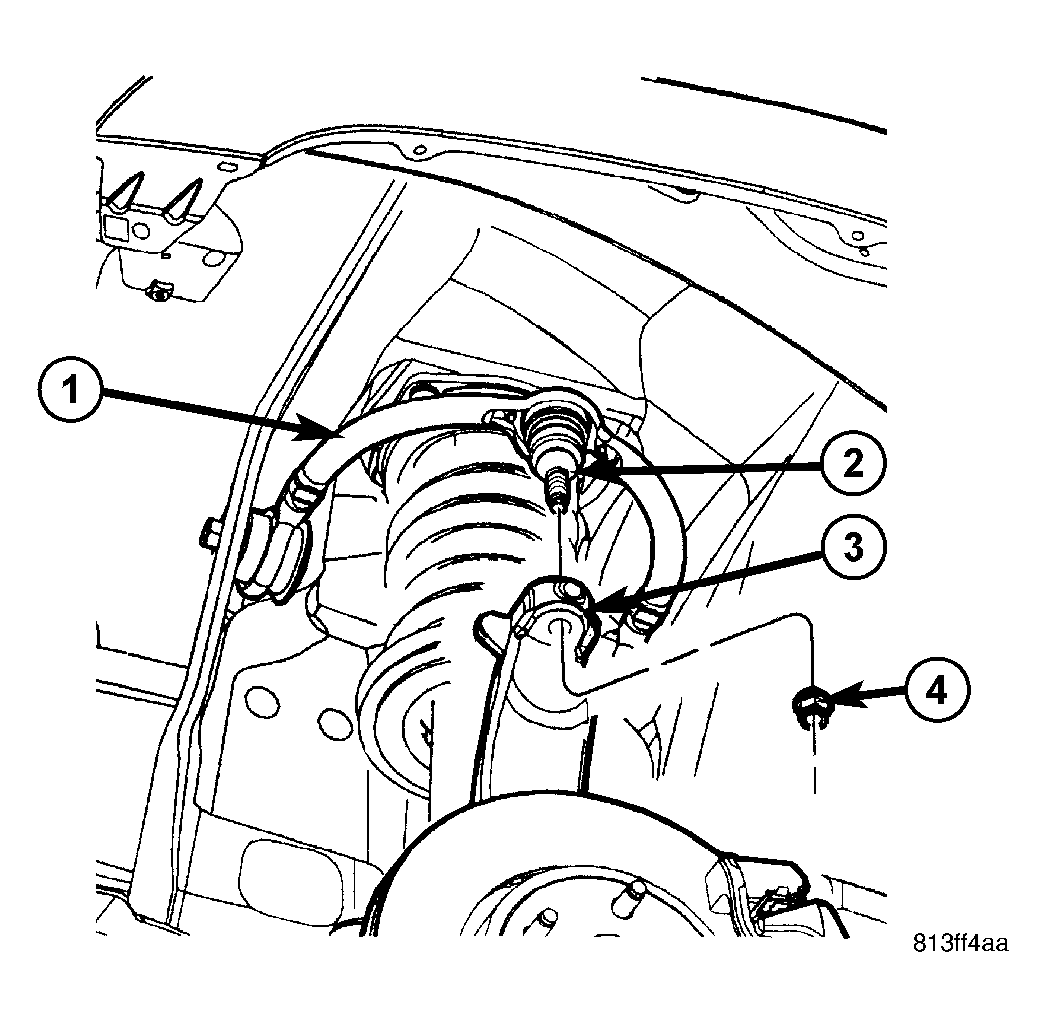

Fig 3: Knuckle Separated

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPPER CONTROL ARM

2 - UPPER BALL JOINT

3 - KNUCKLE

4 - UPPER BALL JOINT NUT

Install the steering knuckle (3) and tighten the nut to 75 N.m (55 ft. lbs.) (Refer to SUSPENSION/FRONT/KNUCKLE - INSTALLATION) .
Install the tire and wheel assembly.
Lower the vehicle.
Perform wheel alignment (Refer to SUSPENSION/WHEEL ALIGNMENT - STANDARD PROCEDURE) .
