Clevis Bracket Bushing

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Clevis Bracket

Courtesy of DAIMLERCHRYSLER CORP.

1 - SHOCK

2 - BOLT

3 - CLEVIS BRACKET

4 - BOLT/NUT

Remove the clevis bracket (3) from the shock (1) (Refer to SUSPENSION/FRONT/CLEVIS BRACKET - REMOVAL) .

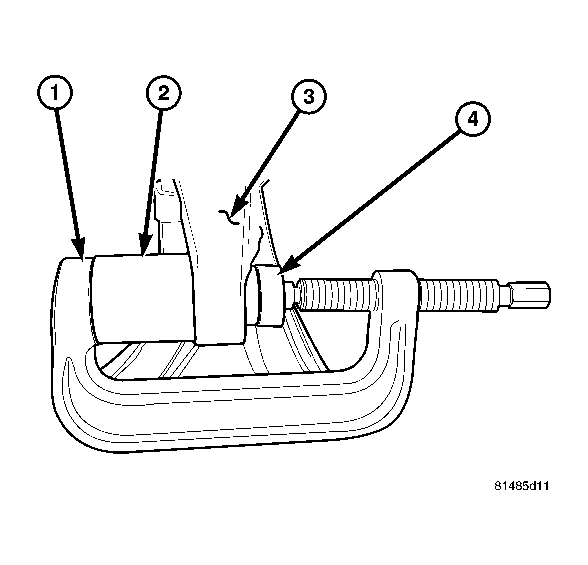

Fig 2: Clevis Bushing Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - C-4212-F PRESS

2 - 9653-2 RECEIVER

3 - LOWER CONTROL ARM

4 - 9653-1 DRIVER

NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

Press the bushing out using special tools C-4212-F (Press) (1), 9653-1 (driver) (4) and 9653-2 (Receiver) (2) from the lower control arm (3).
