Clevis Bracket Bushing

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

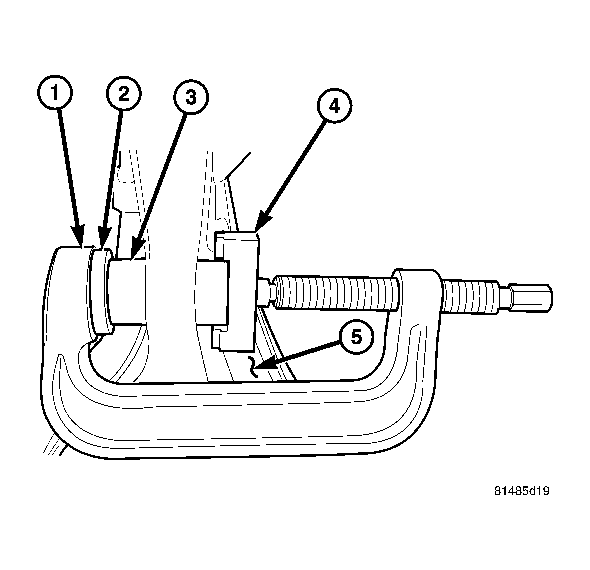

Fig 1: Clevis Bushing Install

Courtesy of DAIMLERCHRYSLER CORP.

1 - C-4212-F PRESS

2 - 9653-3 DRIVER

3 - BUSHING

4 - 9653-4 DEPTH GAUGE

NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

Install the new clevis bracket bushing (3) into the lower control arm (5) using tools C-4212-F (Press) (1), 9653-3 (driver) (2), 9653-4 (Depth gauge) (4) the depth gauge will automatically set the depth of the bushing (3) in the control arm (5).

Fig 2: Clevis Bracket

Courtesy of DAIMLERCHRYSLER CORP.

1 - SHOCK

2 - BOLT

3 - CLEVIS BRACKET

4 - BOLT/NUT

Install the clevis bracket (3) to the shock (1) (Refer to SUSPENSION/FRONT/CLEVIS BRACKET - INSTALLATION) .
