Instrument Panel

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

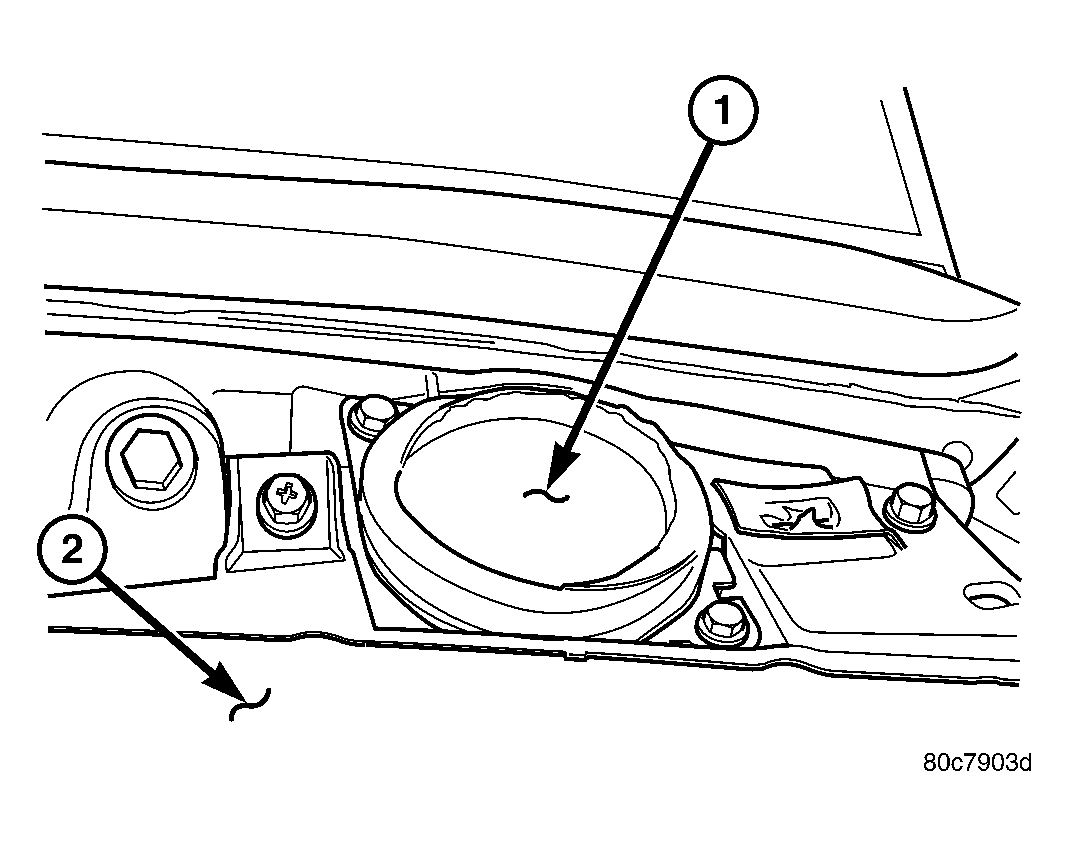

Fig 1: INSTRUMENT PANEL SPEAKER
GC0026350Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the A-pillar trim (Refer to BODY/INTERIOR/A-PILLAR TRIM - REMOVAL) .
  3. Remove instrument panel top cover (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - REMOVAL) .
  4. Remove speaker mounting fasteners. See Fig 1.
  5. Remove speaker (1) and disconnect the wire harness connector.
