Section 521 (Audio System & Video System): Receiver-Satellite: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Remove the right quarter trim panel (Refer to BODY/INTERIOR/QUARTER TRIM PANEL - REMOVAL) .
Remove mounting fasteners. See Fig 1.

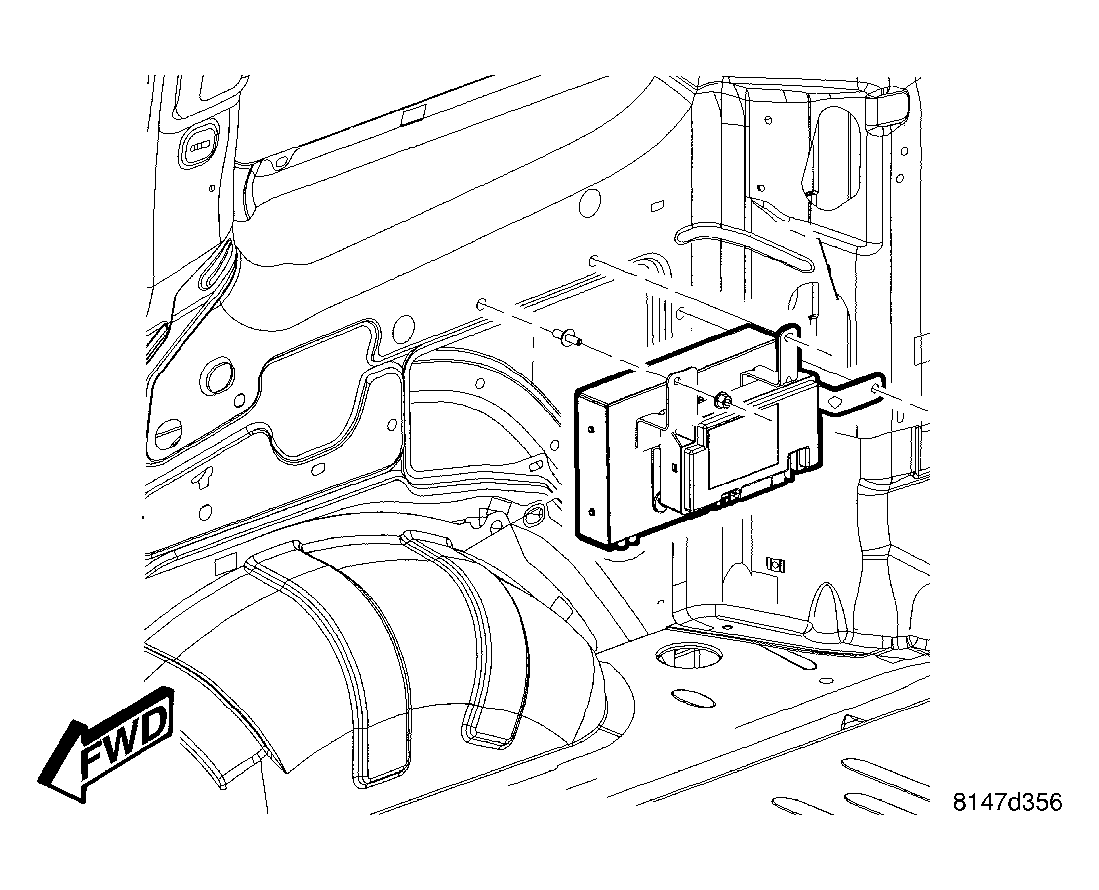

Fig 1: SATELLITE MODULE MOUNTING
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect electrical harness connector. See Fig 2.

Fig 2: SATELLITE MODULE CONNECTORS
Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: SATELLITE MODULE TO BRACKET
Courtesy of DAIMLERCHRYSLER CORP.
Remove the hands free module from the mounting bracket.
Remove the satellite module mounting fasteners. See Fig 3.
