Cd Changer: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove the right rear quarter trim panel. (Refer to BODY/INTERIOR/QUARTER TRIM PANEL - REMOVAL) .
- Disconnect the electrical wire harness connector.

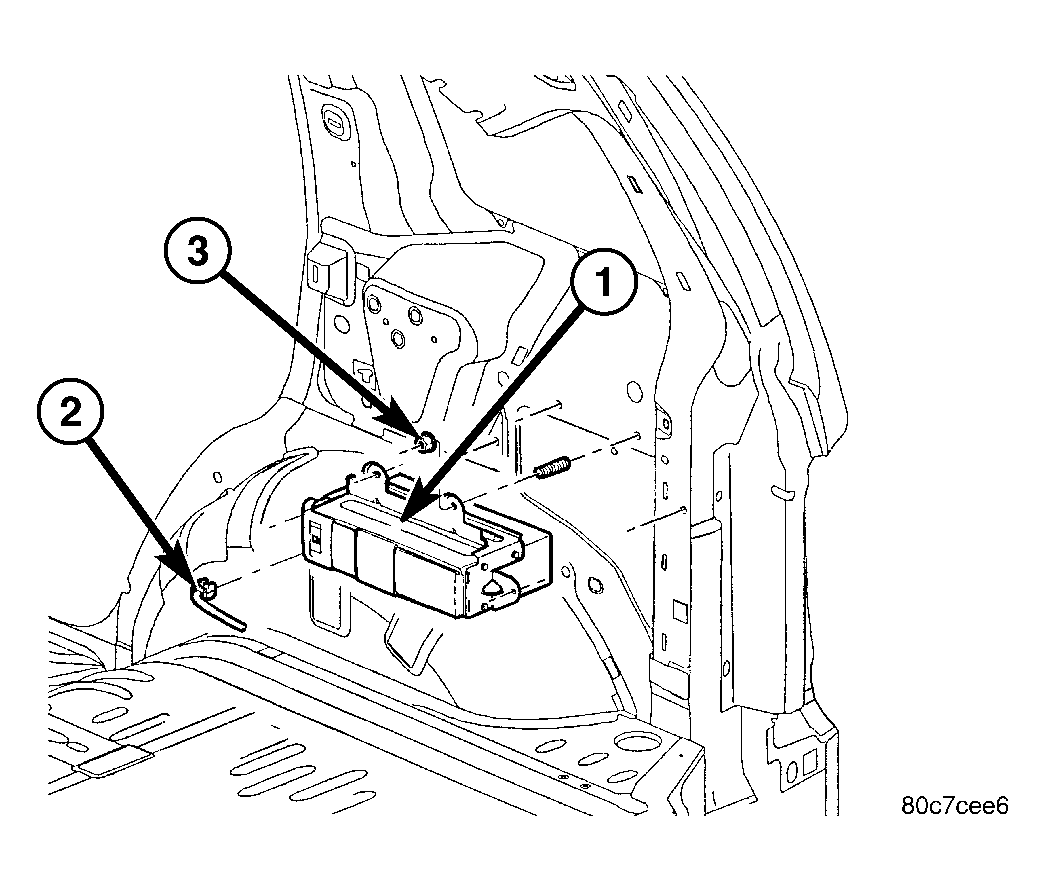

- Remove the mounting fasteners. See Fig 1.
- Remove the CD Changer (1) from the vehicle.
