Antenna Cable - Satellite Radio: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

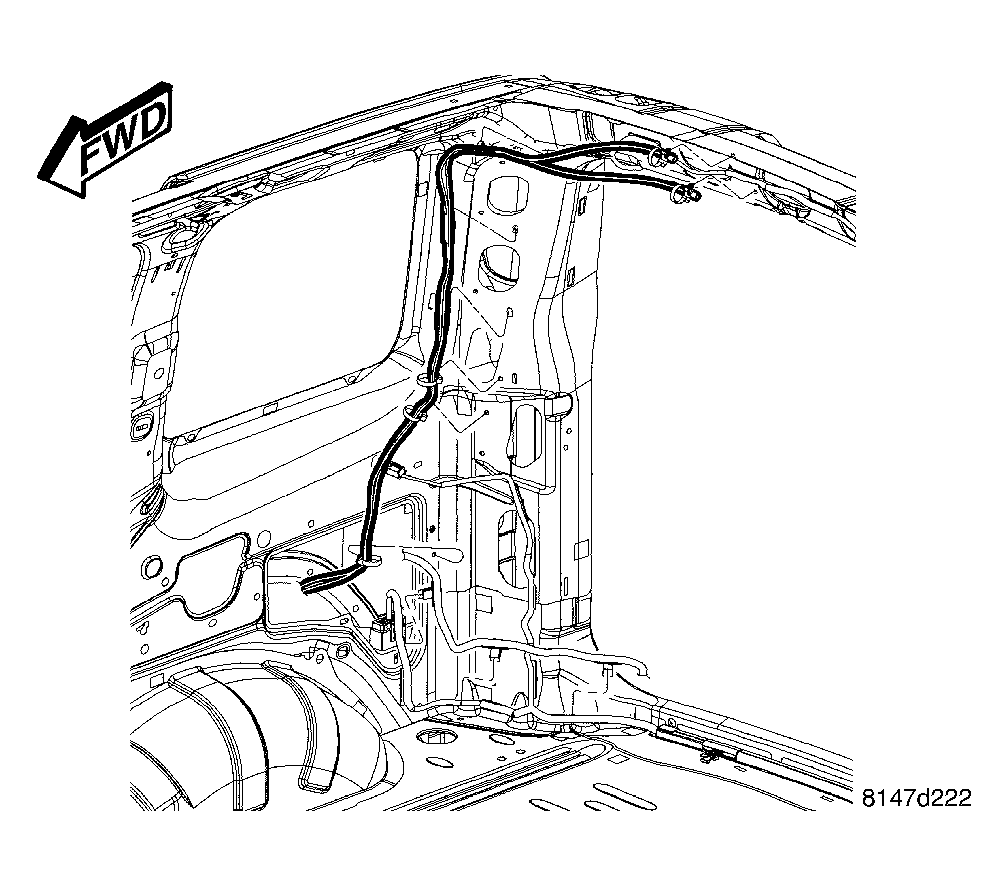

Fig 1: SATELLITE ANTENNA CABLE

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect and isolate the battery cable.
Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
Disconnect antenna cable from antenna.
Remove antenna cable retainers from C-pillar and roof panel. See Fig 1.

Fig 2: SATELLITE MODULE CONNECTORS
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect antenna cable from satellite receiver. See Fig 2.
