Jounce Bumper: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

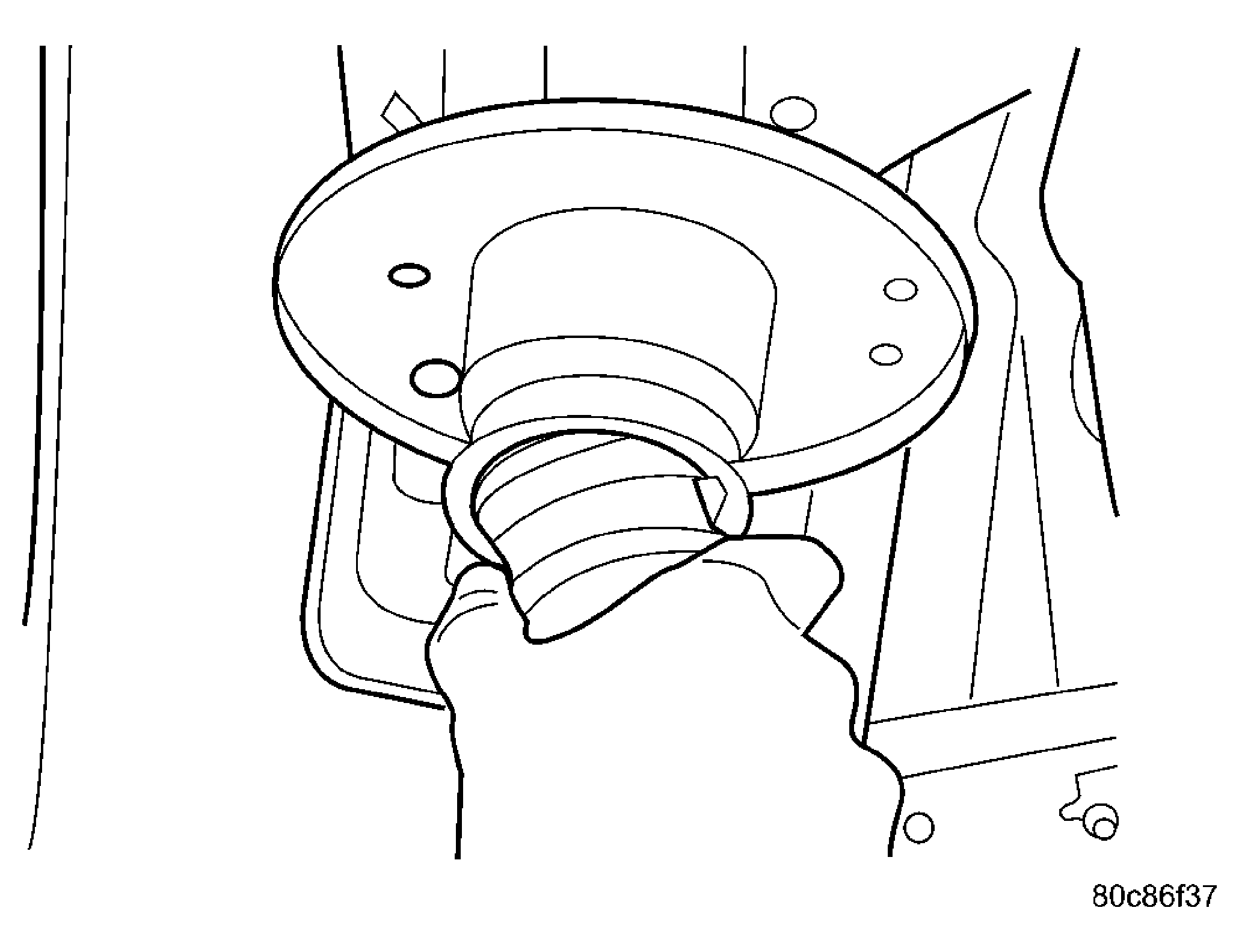

  1. Install the jounce bumper into the mount by twisting the bumper into place. See Figure.
  2. Install the coil spring (Refer to SUSPENSION/REAR/SPRING - INSTALLATION) .
  3. Install the shock (Refer to SUSPENSION/REAR/SHOCK - INSTALLATION) .
