Removal - Left Side

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the left side tire and wheel assembly.
  3. Remove the upper ball joint nut.
  4. Separate the upper ball joint from the steering knuckle using tool C-4150A.
  5. Lower the vehicle.
  6. Remove the battery (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - REMOVAL) .
  7. Unclip the power center and move it to the side out of the way.
  8. Remove the battery tray (Refer to ELECTRICAL/BATTERY SYSTEM/TRAY - REMOVAL) .
  9. Disconnect the battery temperature sensor from the battery tray.
  10. Remove the upper control arm rear bolt by using a ratchet and extension under the steering shaft and positioned by the power steering reservoir. See Fig 1

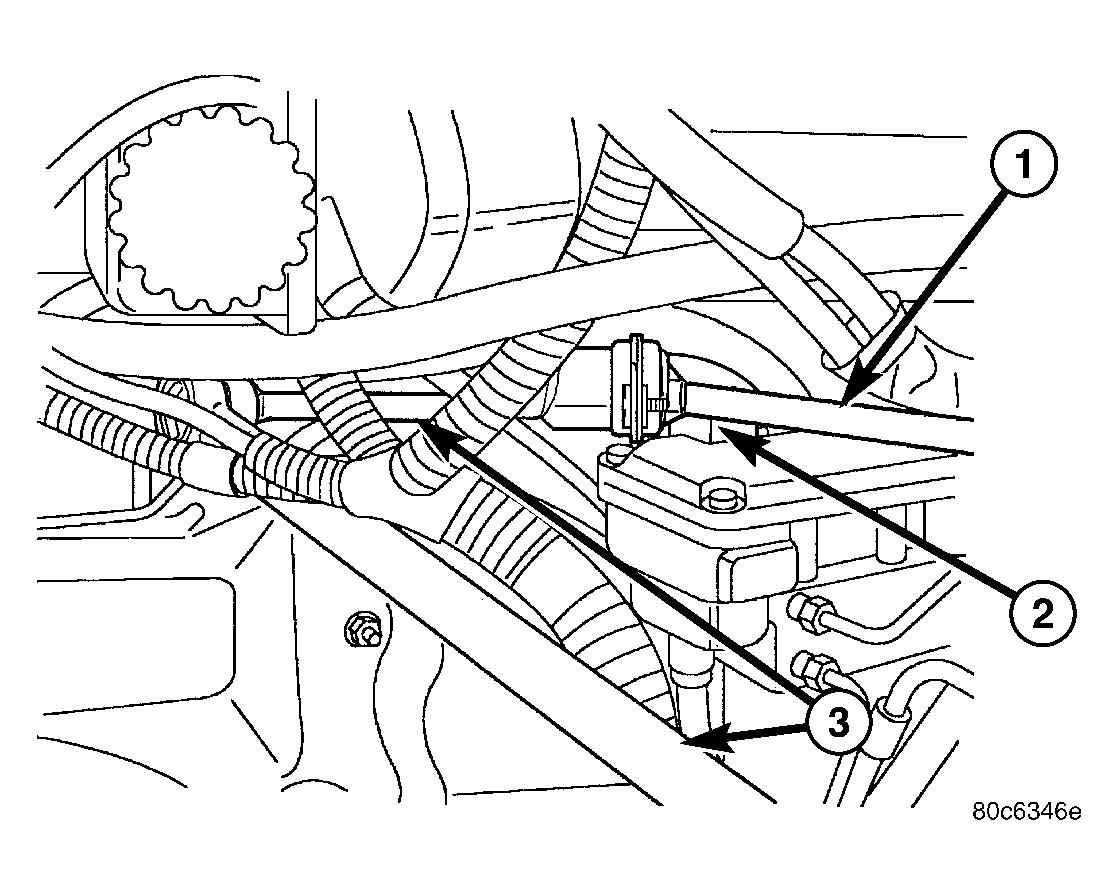

    Fig 1: Rear Bolt
    GC0025566Courtesy of DAIMLERCHRYSLER CORP.
    1 - STEERING SHAFT
    2 - REAR BOLT
    3 - RATCHET WITH AN EXTENSION
  11. Remove the upper control arm front bolt.
  12. Remove the upper control arm from the vehicle.
