Battery Tray: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery from the battery tray (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - REMOVAL) .
  2. Unlatch and remove the PDC from the battery tray.

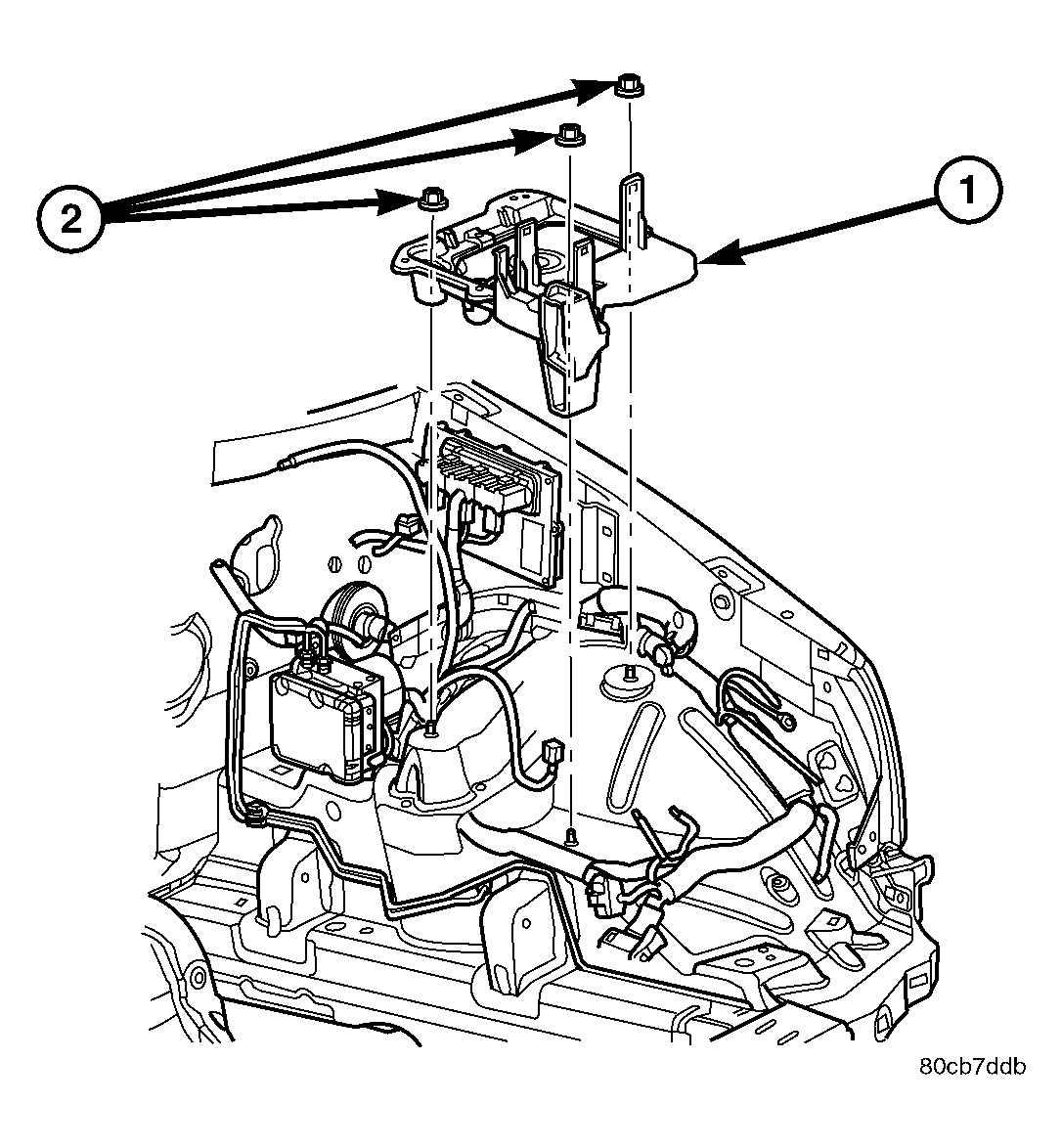

  3. Remove the three nuts that secure the battery tray to the weld studs on the front extension of the left front wheelhouse inner panel. See Figure.
  4. Remove the battery tray from the vehicle.
