Rear Fascia Support: Installation
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

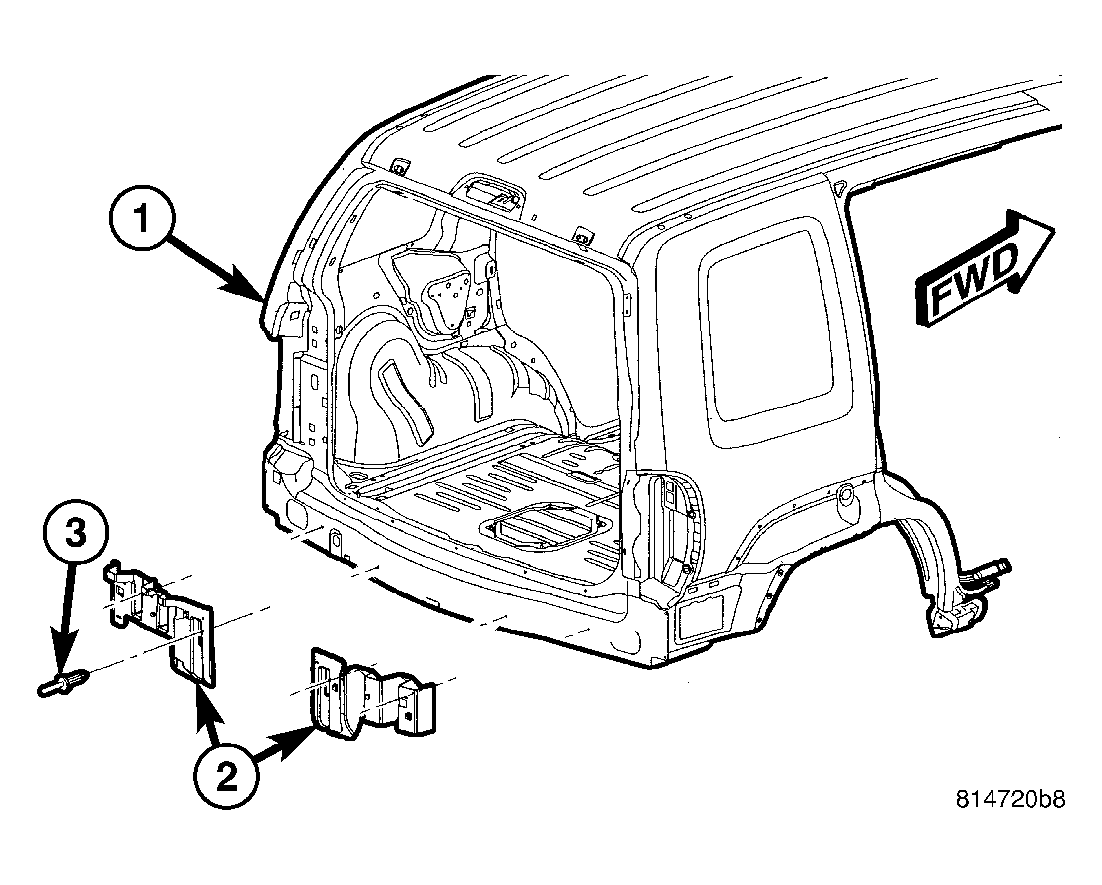

- For export models, install the fascia support and install the seven bolts. See Figure.

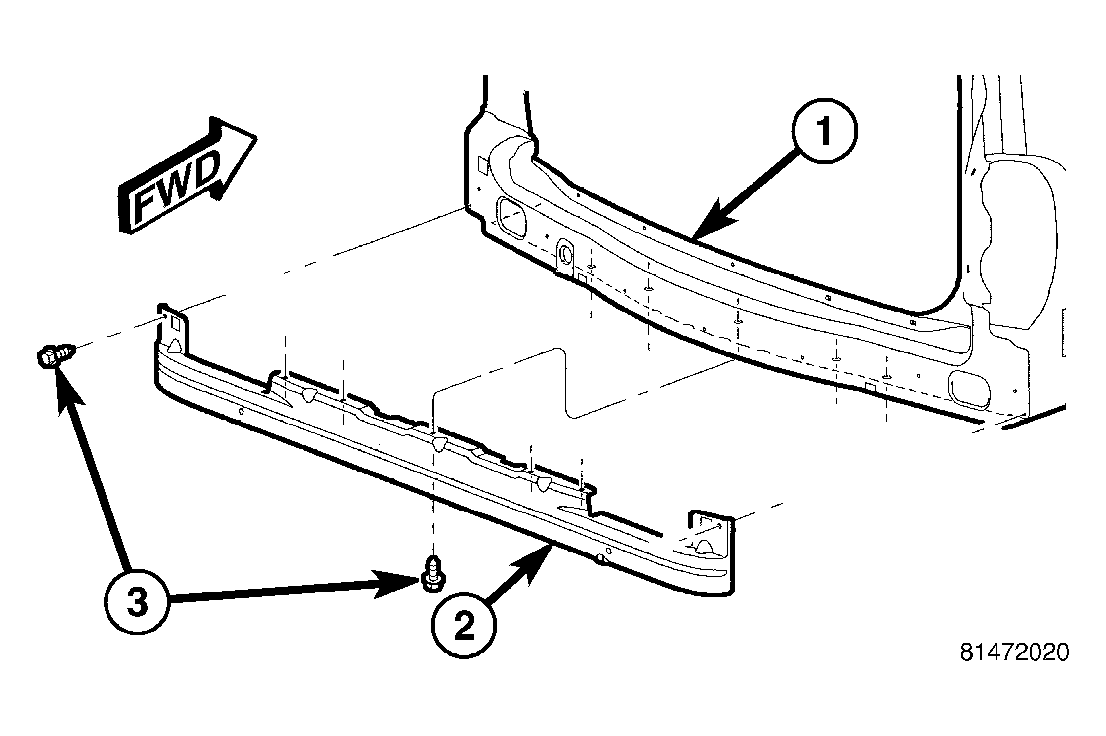

- Install the fascia supports onto the vehicle and install four new rivets. See Figure.
- Install the rear fascia assembly. (Refer to FRAME & BUMPERS/BUMPERS/REAR FASCIA - INSTALLATION)
