Engine Cradle CROSSMEMBER: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install engine support tool 8534 or equivalent.
  2. Raise and support the vehicle.
  3. Remove the lower control arms. (Refer to SUSPENSION/FRONT/LOWER CONTROL ARM - REMOVAL)
  4. Remove the sway bar. (Refer to SUSPENSION/FRONT/STABILIZER BAR - REMOVAL)
  5. Remove the front axle, if equipped. Refer toREMOVAL
  6. Remove the power steering rack. (Refer to STEERING/GEAR - REMOVAL)
  7. Loosen the engine mount through bolts. See Fig 1.

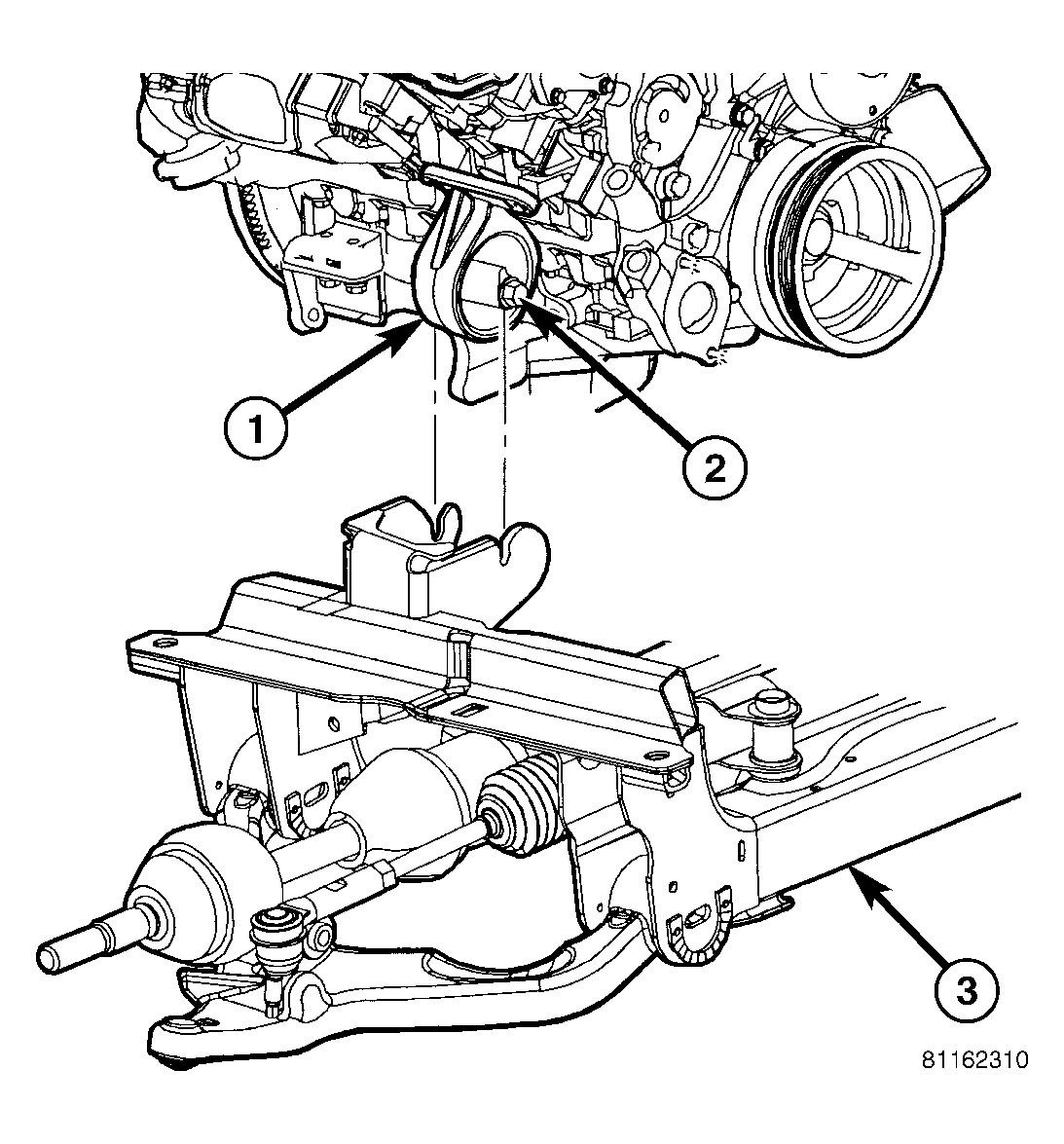

    Fig 1: Engine Mount
    GC0025619Courtesy of DAIMLERCHRYSLER CORP.
    1 - ENGINE MOUNT
    2 - THROUGH BOLT
    3 - ENGINE CRADLE CROSSMEMBER
  8. Support the engine cradle with a suitable lifting device.
  9. Using a grease pencil or equivalent, mark the location of the engine support cradle.
  10. Remove the engine cradle support bolts and remove the engine cradle. See Fig 2.

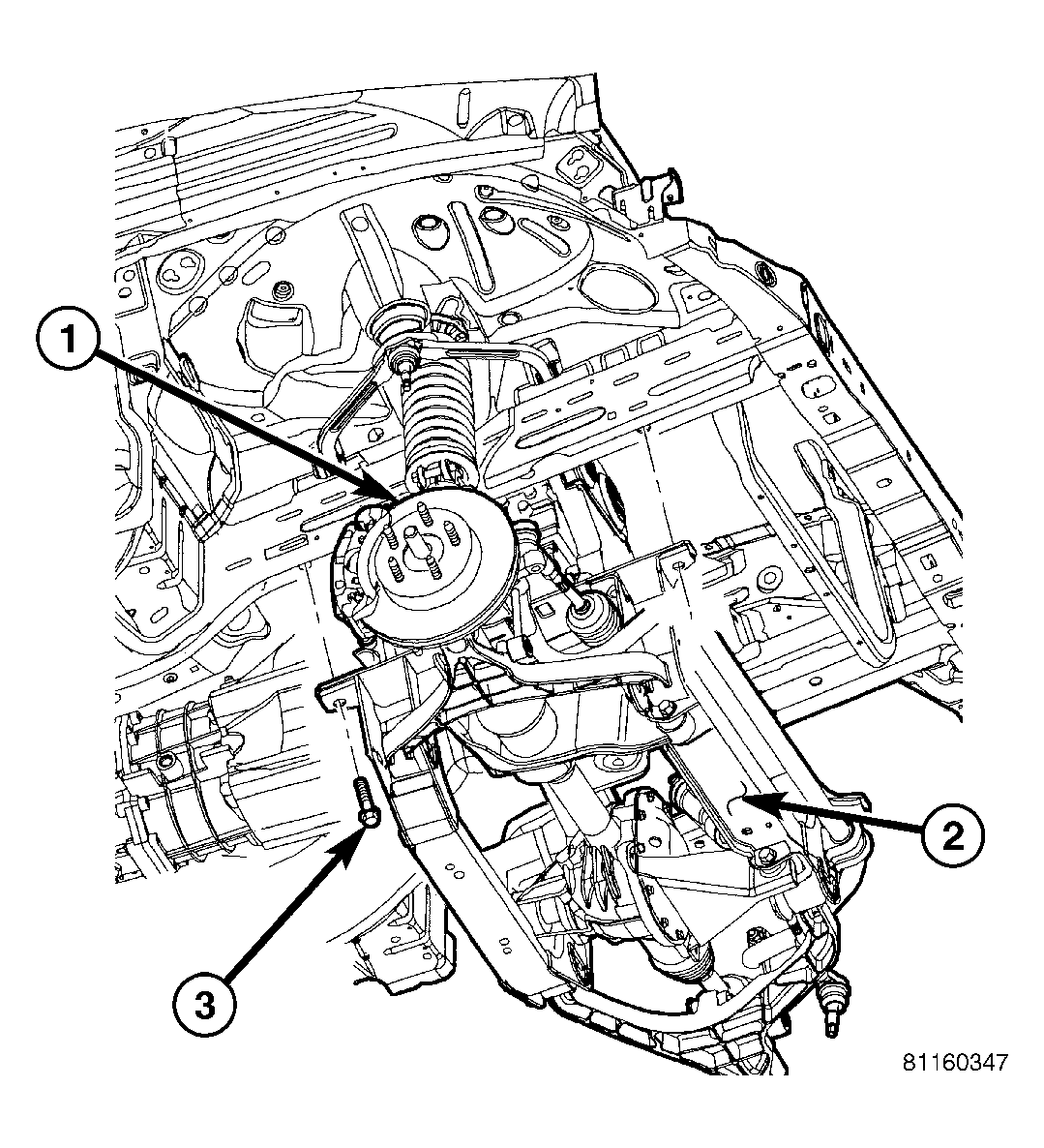

Fig 2: Engine Cradle
GC0025617Courtesy of DAIMLERCHRYSLER CORP.
2 - ENGINE CRADLE CROSSMEMBER
3 - ENGINE CRADLE SUPPORT BOLTS (4)
