Lock Cylinder: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the exterior handle. (Refer to BODY/SWING GATE/EXTERIOR HANDLE - REMOVAL) .
Remove the clip and remove the lock cylinder switch.
Remove the screw and remove the lock cylinder. See Fig 1.

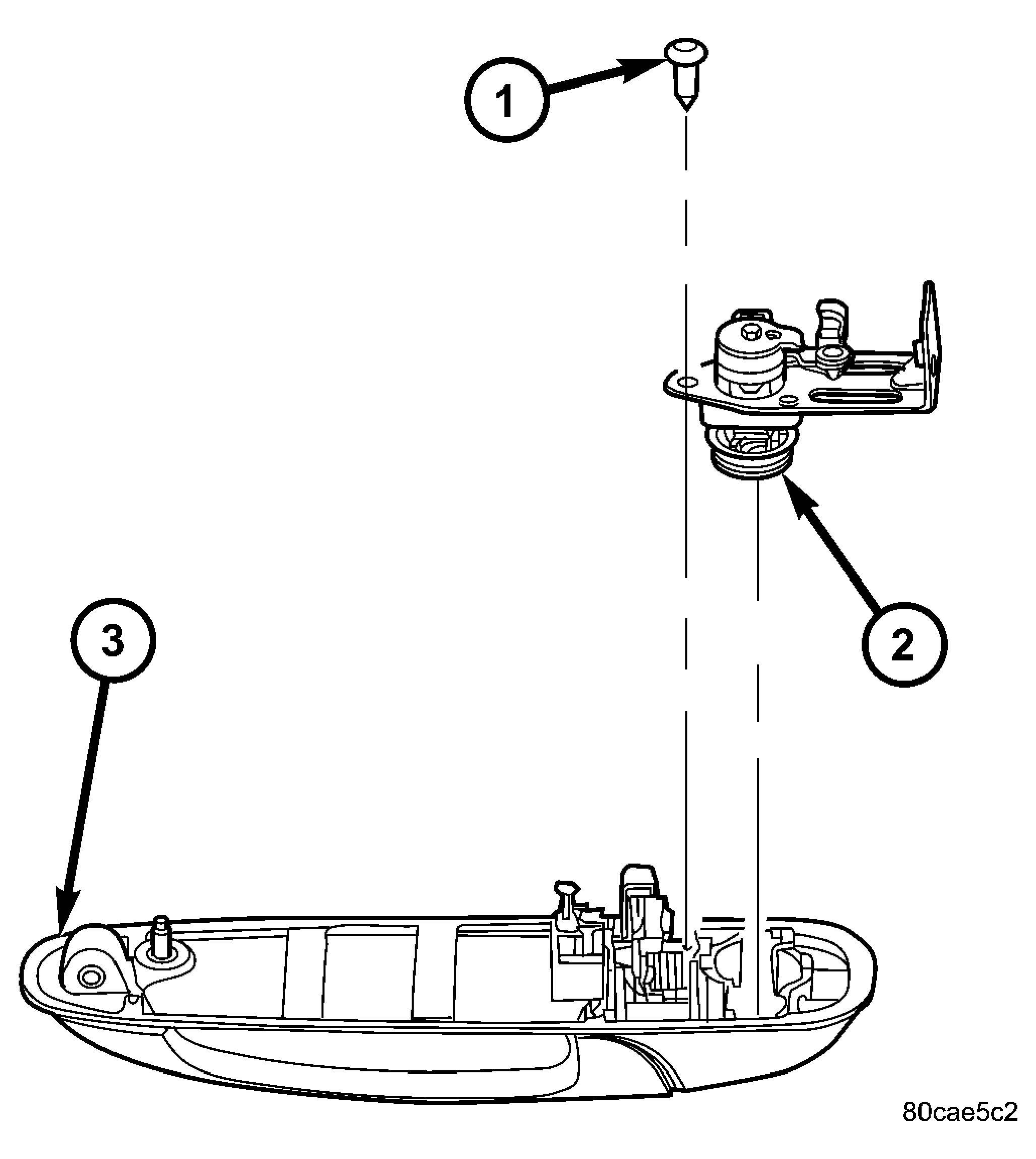

Fig 1: Lock Cylinder

Courtesy of DAIMLERCHRYSLER CORP.

1 - SCREW

2 - LOCK CYLINDER

3 - EXTERIOR HANDLE
