Swing Gate: Latch: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the trim panel and waterdam. (Refer to BODY/SWING GATE/TRIM PANEL - REMOVAL) .

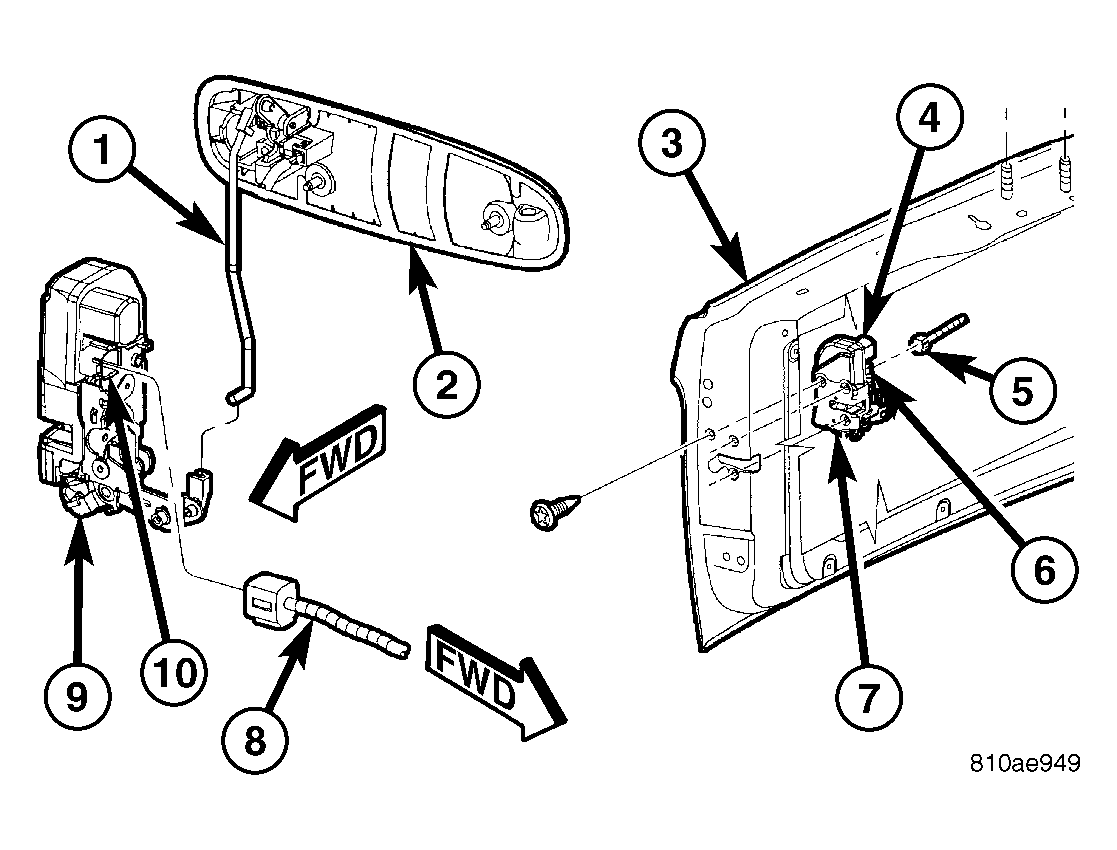

- Disconnect the electrical connector and actuator rod at the clip. See Fig 1.
- Remove the screws and remove the latch.
| 1 - EXTERIOR HANDLE ROD |
| 2 - EXTERIOR HANDLE |
| 3 - SWING GATE |
| 4 - LATCH |
| 5 - WIRE HARNESS |
| 6 - LATCH ELECTRICAL CONNECTOR |
| 7 - LATCH |
| 8 - WIRE HARNESS |
| 9 - LATCH |
| 10 - ELECTRICAL CONNECTOR |
