Module/Frame Assembly: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Install the trough guides. (Refer to BODY/SUNROOF/TROUGH GUIDE ASSEMBLY - INSTALLATION) .
Install the drive motor. (Refer to BODY/SUNROOF/DRIVE MOTOR - INSTALLATION - VEHICLES BUILT ON 9/10/02 AND LATER) .
Install the sunshade. (Refer to BODY/SUNROOF/SUNSHADE - INSTALLATION) .
Remove the backing tape from the foam support pad, if necessary.
Raise rear end of sunroof module assembly and guide into position and start fasteners.
Tighten the fasteners to 9 N.m (80 in. lbs.).
NOTE: If installing the sunroof assembly onto a vehicle built before 9/10/02, it will be necessary to replace the rear drain tube couplings. If installing the sunroof assembly onto a vehicle built on 9/10/02 and later, skip to step 9.

Using a sharp bladed tool, carefully remove the original drain tube couplings from the drain tubes. See Fig 1.

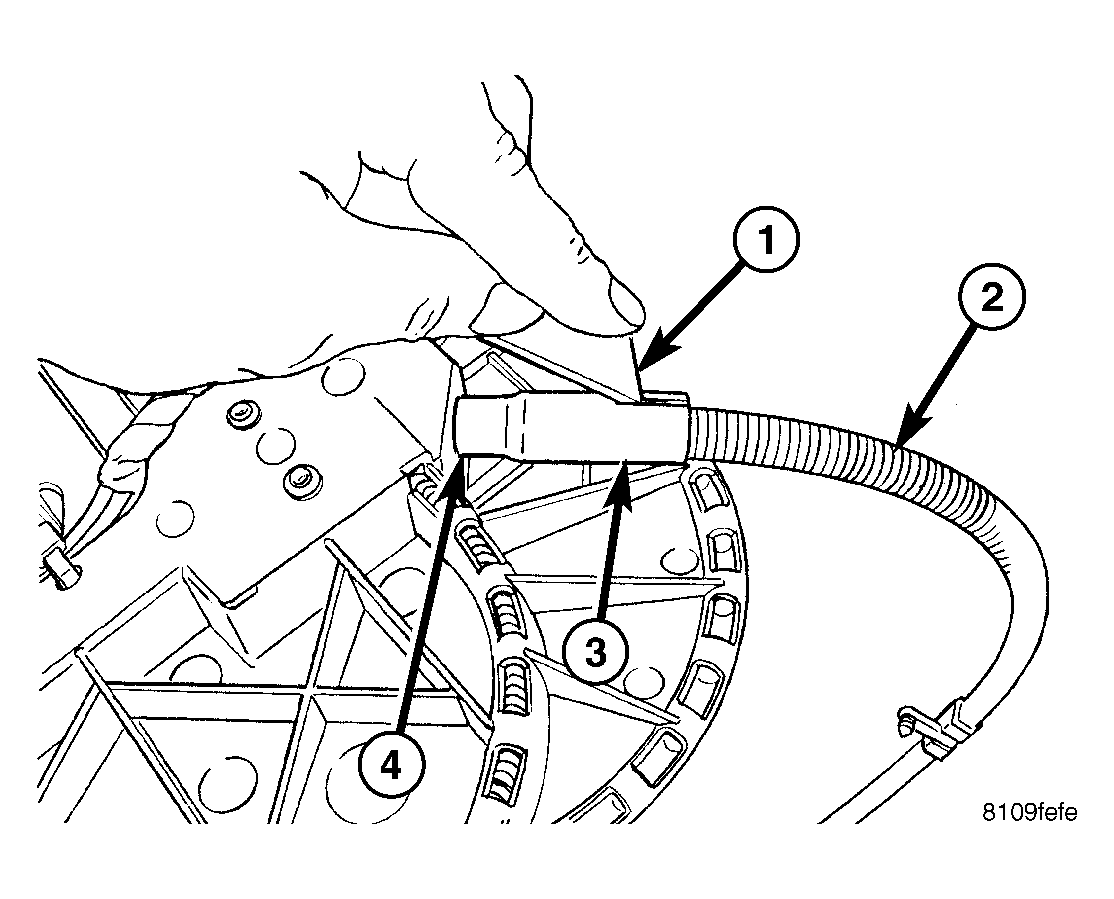

Fig 1: Coupling Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - SHARP BLADED TOOL

2 - DRAIN TUBE

3 - COUPLING

4 - SUNROOF DRAIN TUBE NIPPLE

Using a soap and water solution carefully install the new drain tube couplings onto the drain tubes. See Fig 2.

Fig 2: Coupling Installation
Courtesy of DAIMLERCHRYSLER CORP.

1 - DRAIN TUBE

2 - COUPLING
Connect the drain tubes.
Install the wire harness. (Refer to BODY/SUNROOF/WIRE HARNESS - INSTALLATION) .
Connect battery negative cable.
Temporarily install sunroof switch and perform the sunroof motor teach procedure. (Refer to BODY/SUNROOF/DRIVE MOTOR - STANDARD PROCEDURE - TEACH PROCEDURE) .
Test sunroof operation, adjust glass as necessary. (Refer to BODY/SUNROOF/GLASS PANEL - ADJUSTMENTS) .
Install the headliner. (Refer to BODY/INTERIOR/HEADLINER - INSTALLATION) .
Install the opening trim lace. (Refer to BODY/SUNROOF/OPENING TRIM LACE - INSTALLATION) .
