Window Regulator - Power: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the waterdam. (Refer to BODY/DOOR - FRONT/WATERDAM - REMOVAL) .

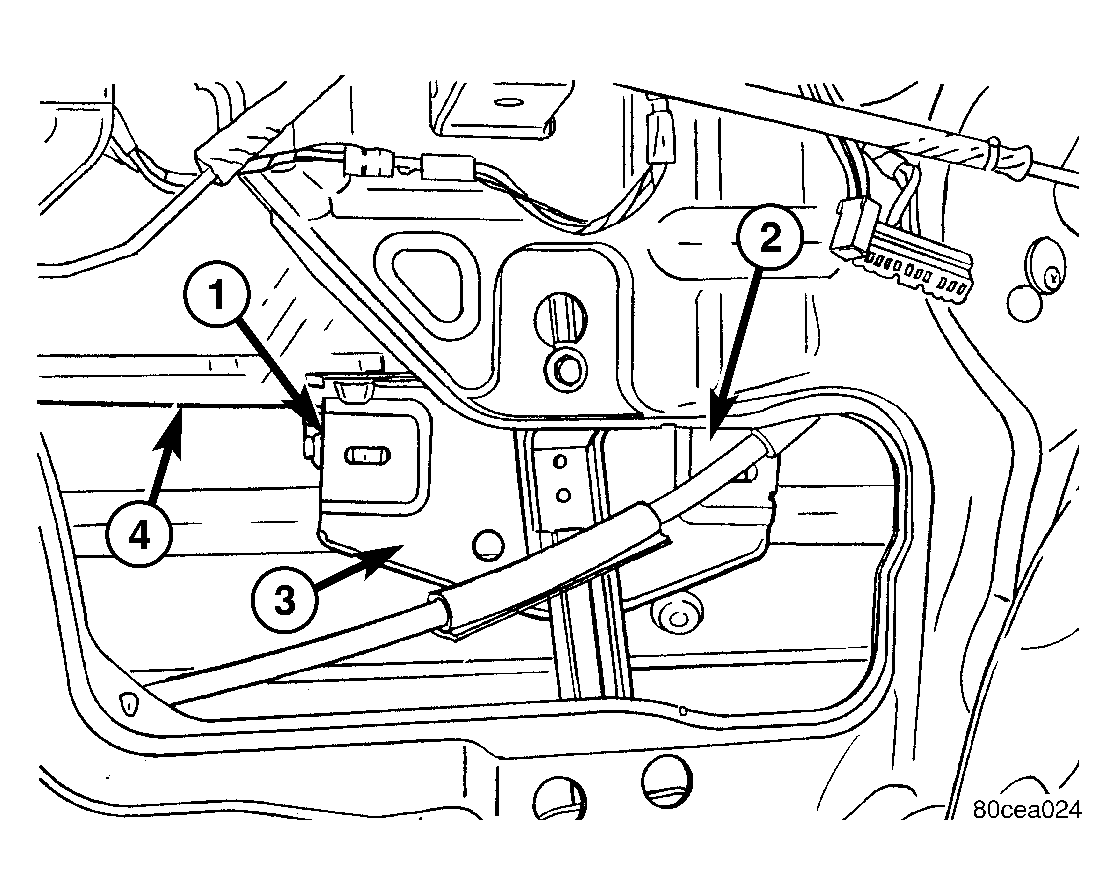

- Raise the glass to the position shown and using a long flat blade or hook type tool, disengage clips attaching glass retainer to regulator lift plate. See Fig 1.
- Disconnect the glass from the regulator lift plate and reinstall the clips.
- Secure the glass in the up position using a wood wedge, tape or equivalent.

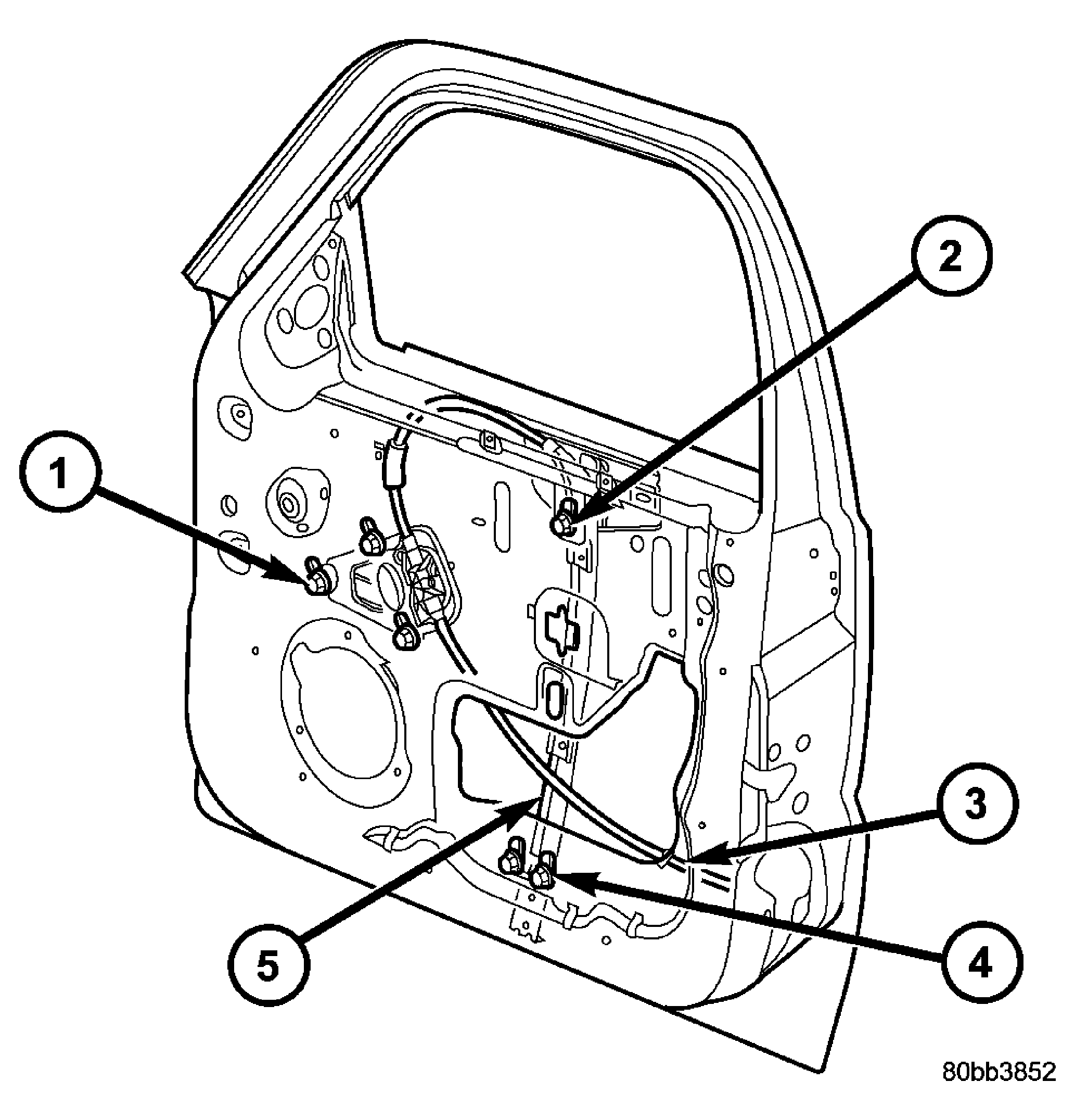

- Loosen the bolts. See Fig 2.
- Disconnect the runout tube clip.
- Disconnect the electrical connector and remove the regulator.
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - DOOR GLASS ATTACHMENT CLIP (2) |
| 2 - DOOR OPENING |
| 3 - REGULATOR LIFT PLATE |
| 4 - DOOR GLASS |
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - BOLTS (3) |
| 2 - BOLT |
| 3 - RUNOUT TUBE CLIP |
| 4 - BOLTS (2) |
| 5 - REGULATOR ASSEMBLY |
