Door - Front: WATERDAM: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not allow the waterdam or adhesive to become contaminated with dirt or other foreign substances.
Do not damage the waterdam during removal and installation.
If the waterdam becomes contaminated or damaged, replace the waterdam.
- Remove the door speaker. (Refer to ELECTRICAL/AUDIO/SPEAKER - REMOVAL) .

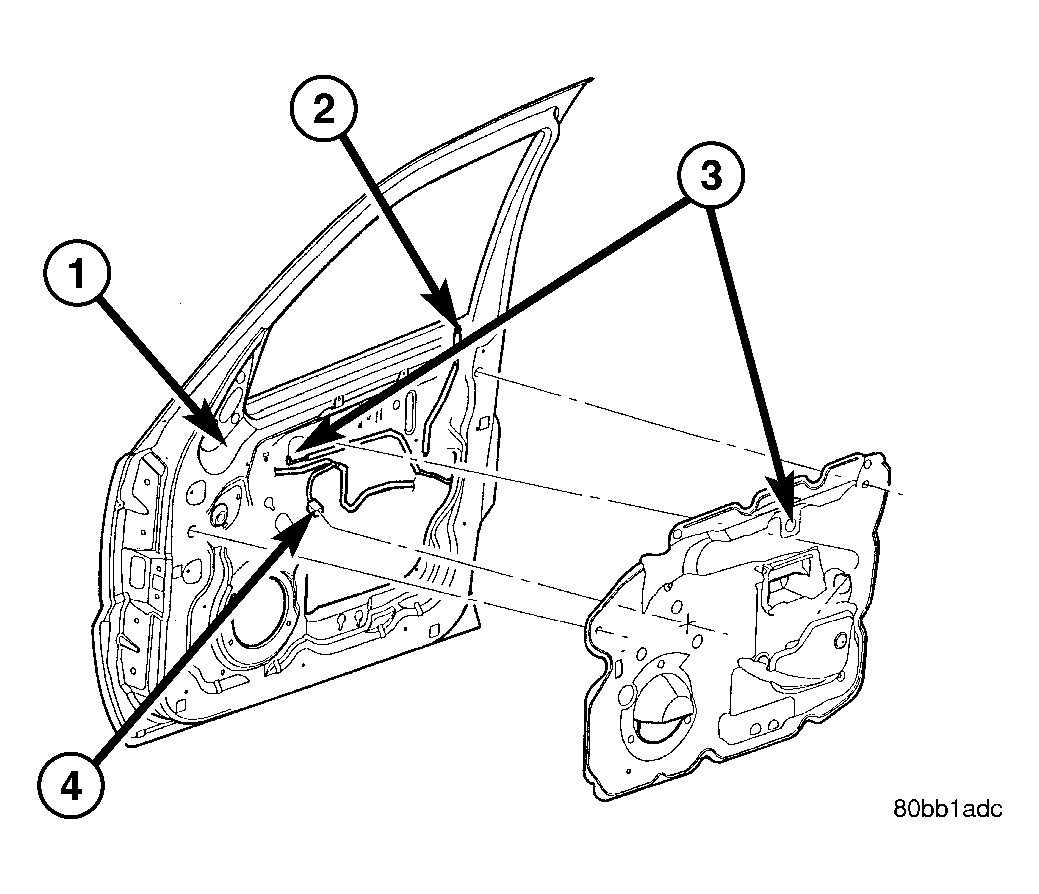

- Separate the waterdam from the inner door panel and off of the latch linkages. See Fig 1.
| 1 - DOOR |
| 2 - LOCK KNOB ROD |
| 3 - INSIDE HANDLE ACTUATOR ROD AND HOLE |
| 4 - ELECTRICAL CONNECTOR |
