Door - Front: Latch: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove the waterdam as necessary to gain access to the latch. (Refer to BODY/DOOR - FRONT/WATERDAM - REMOVAL) .
- Disconnect the exterior handle rod at the handle.
- Disconnect the lock knob rod and lock cylinder link rod at the latch.

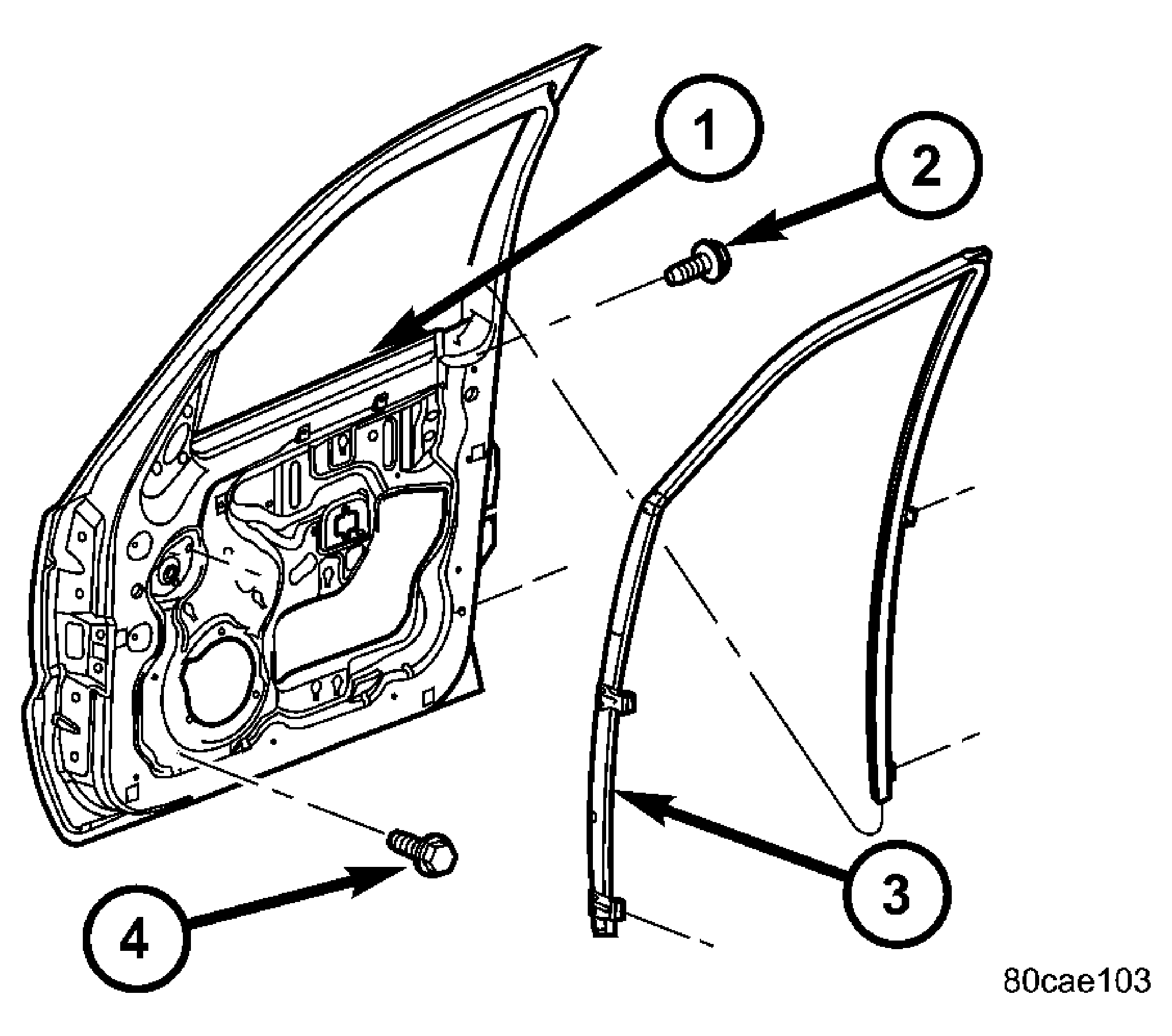

- Remove rear glass run channel bolts and position the channel aside. See Figure.

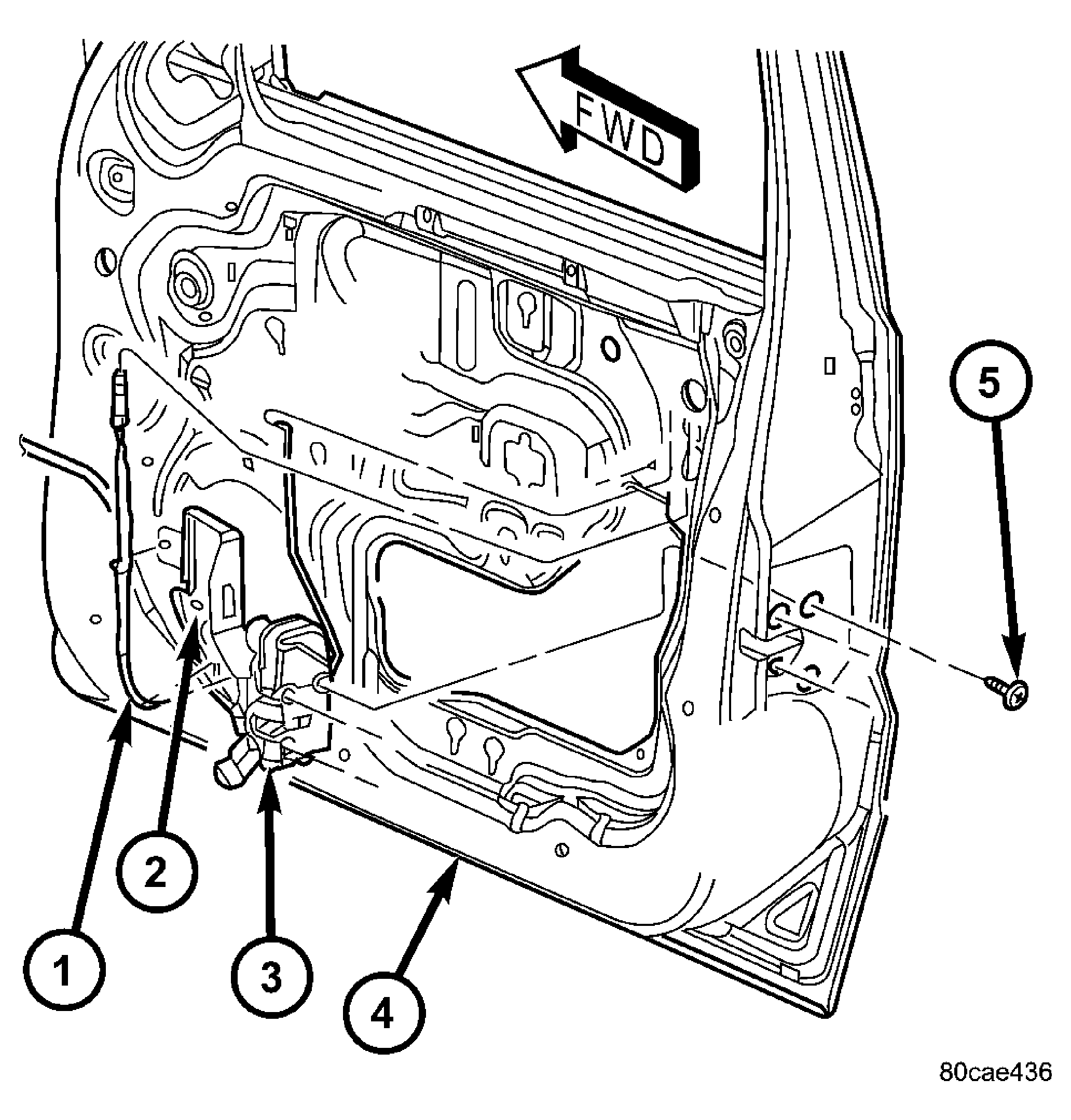

- Remove the screws and remove the latch assembly. See Fig 1.
- Disconnect the electrical connectors.
| 1 - LOCK ACTUATOR ROD |
| 2 - PLASTIC COVER |
| 3 - LATCH ASSEMBLY |
| 4 - DOOR |
| 5 - SCREWS |
