Engine Cover - Front: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove cooling fan and fan drive viscous clutch assembly. Refer to RADIATOR - FAN - VISCOUS .
  3. Remove accessory drive belt (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
  4. Remove cooling fan support (Refer to COOLING/ENGINE/RADIATOR FAN - REMOVAL) .
  5. Remove vibration damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER - REMOVAL) .
  6. Remove timing belt outer cover (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN COVER(S) - REMOVAL) .
    CAUTION: Before removing the cylinder head cover/intake manifold or timing belt the engine must aligned at 90° ATDC. Failure to do so could result in valve and/or piston damage during reassembly. (Refer to ENGINE/VALVE TIMING - STANDARD PROCEDURE) .
  7. Remove timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL) .
  8. Remove timing belt inner cover (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN COVER(S) - REMOVAL) . .
    NOTE: Crankshaft hub has left hand thread.
  9. Remove crankshaft hub.
  10. Remove front engine cover. See Fig 1.

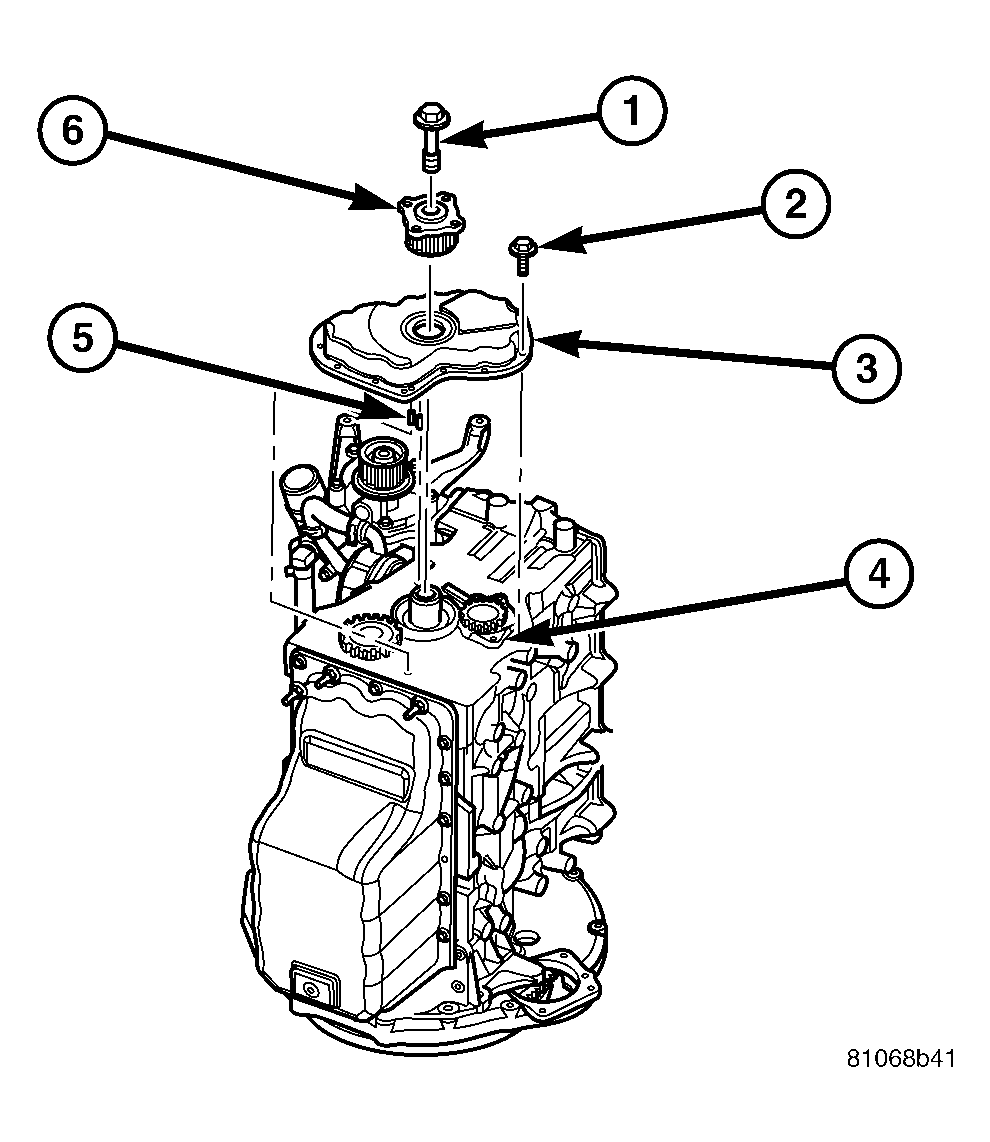

Fig 1: FRONT ENGINE COVER
GC0026184Courtesy of DAIMLERCHRYSLER CORP.
1 - CRANKSHAFT HUB RETAINING BOLT
2 - FRONT COVER RETAINING BOLTS
3 - FRONT COVER
4 - ENGINE BLOCK
5 - FRONT ENGINE COVER ALIGNMENT DOWEL
6 - CRANKSHAFT HUB
