Vibration Damper: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove viscous cooling fan and shroud. Refer to RADIATOR - FAN - VISCOUS .
  3. Remove accessory drive belt (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL) .
  4. Remove vibration damper retaining bolts and damper. See Fig 1.

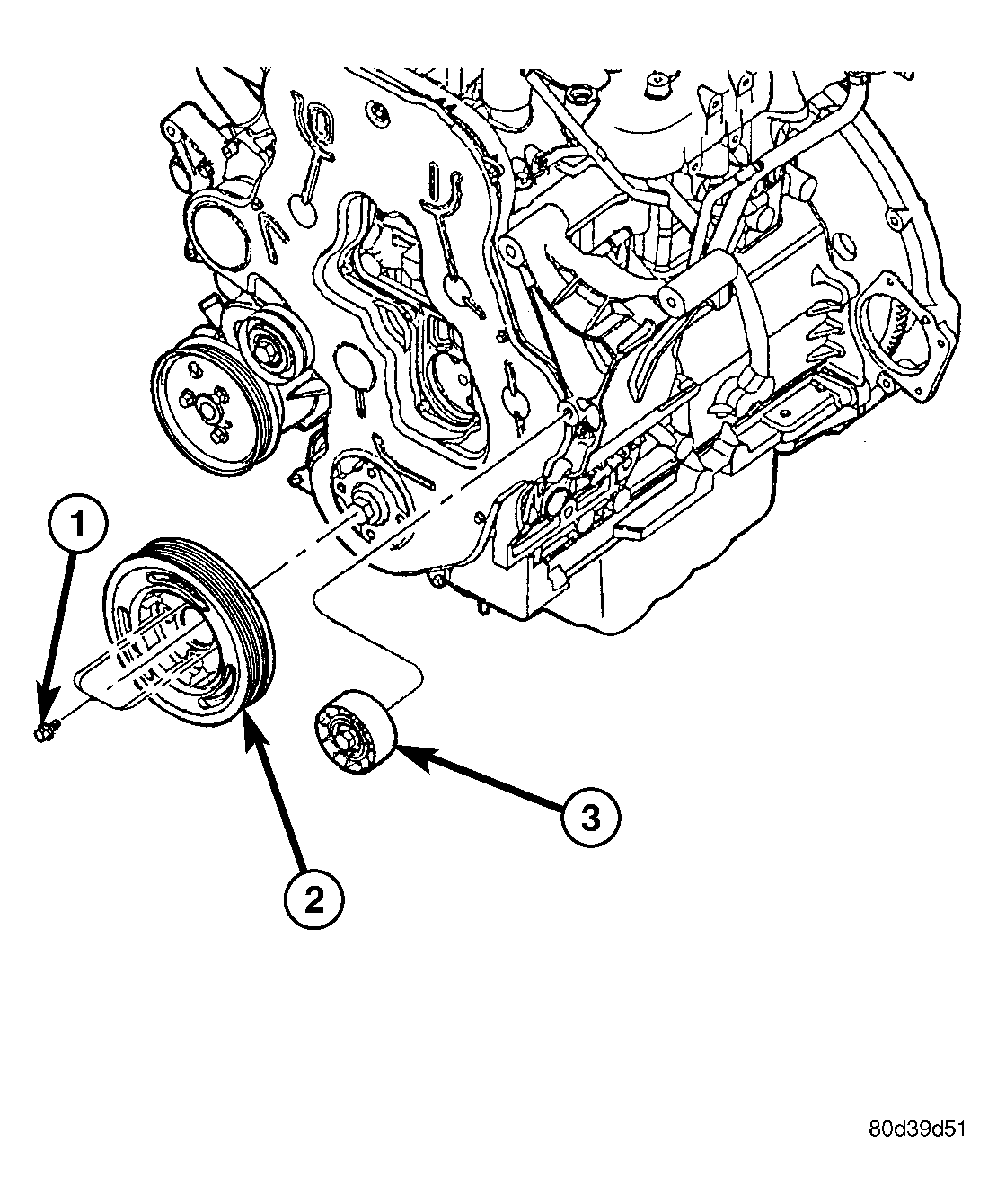

Fig 1: VIBRATION DAMPER
GC0025169Courtesy of DAIMLERCHRYSLER CORP.
1 - VIBRATION DAMPER/CRANKSHAFT PULLEY RETAINING BOLTS
2 - VIBRATION DAMPER/CRANKSHAFT PULLEY
3 - IDLER PULLEY
