Oil Pump: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable from battery.
  2. Remove timing belt. (Refer to ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND SPROCKETS - REMOVAL)
  3. Remove timing belt rear cover. (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S) - REMOVAL)
  4. Remove oil pan. (Refer to ENGINE/LUBRICATION/OIL PAN - REMOVAL)
  5. Remove crankshaft sprocket using Special Tools 6793 and C-4685-C2. See Fig 1.
  6. Remove crankshaft key. See Fig 2.

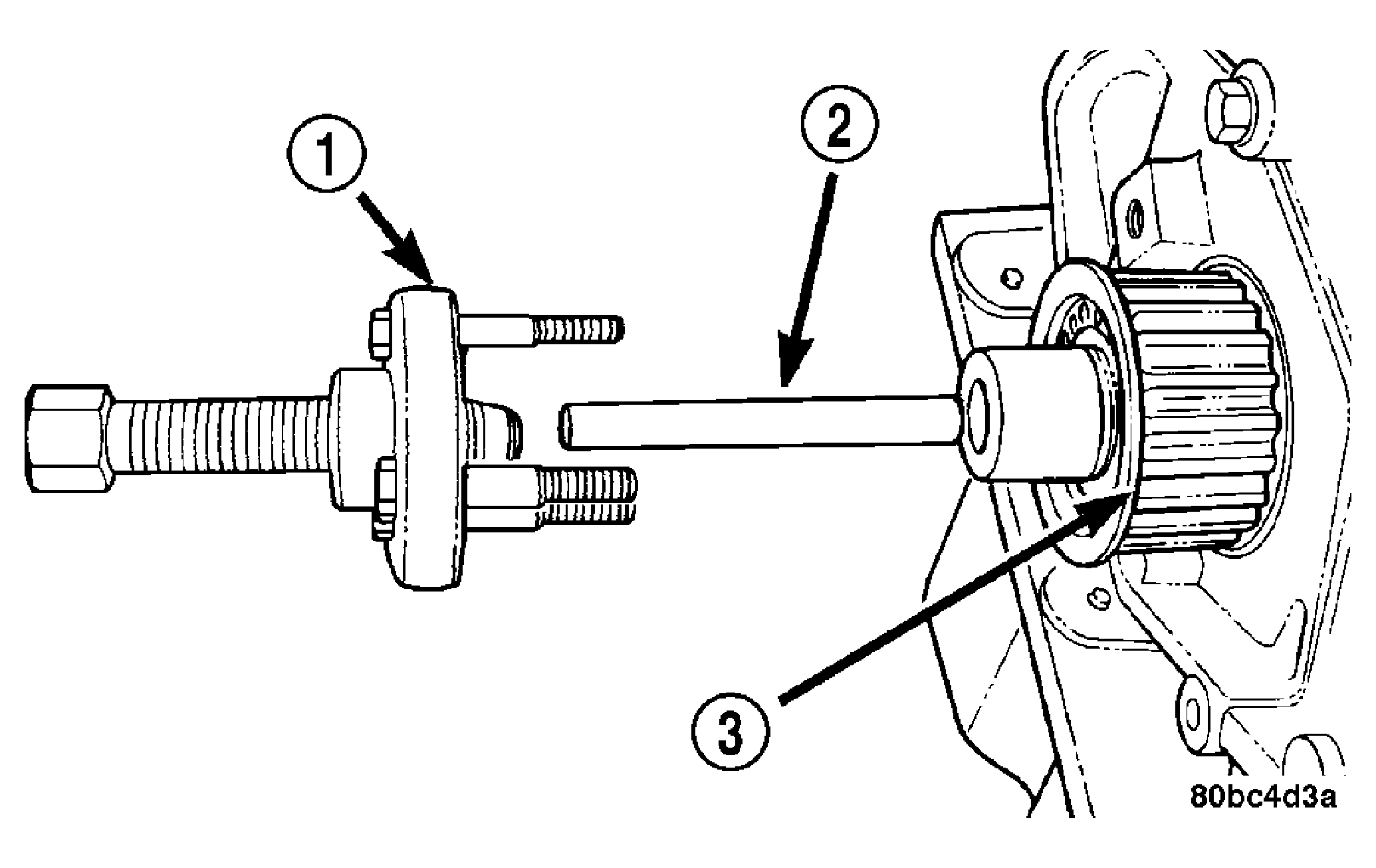

    Fig 1: Crankshaft Sprocket - Removal
    GC0021079Courtesy of DAIMLERCHRYSLER CORP.
    1 - SPECIAL TOOL 6793
    2 - SPECIAL TOOL C-4685-C2
    3 - CRANKSHAFT SPROCKET

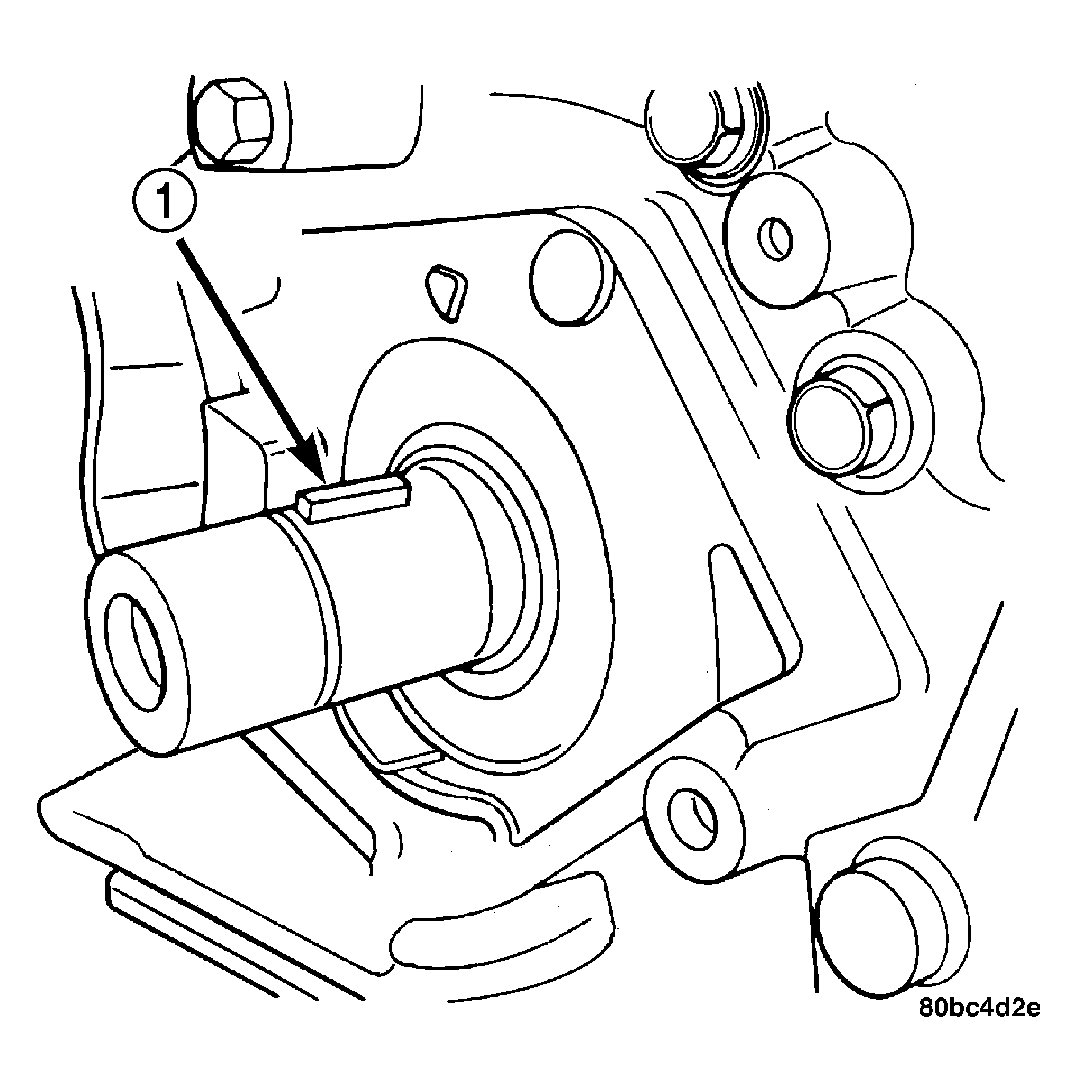

    Fig 2: Crankshaft Key
    GC0021080Courtesy of DAIMLERCHRYSLER CORP.
    1 - CRANKSHAFT KEY
  7. Remove oil pick-up tube.
  8. Remove oil pump and front crankshaft seal. See Fig 3.

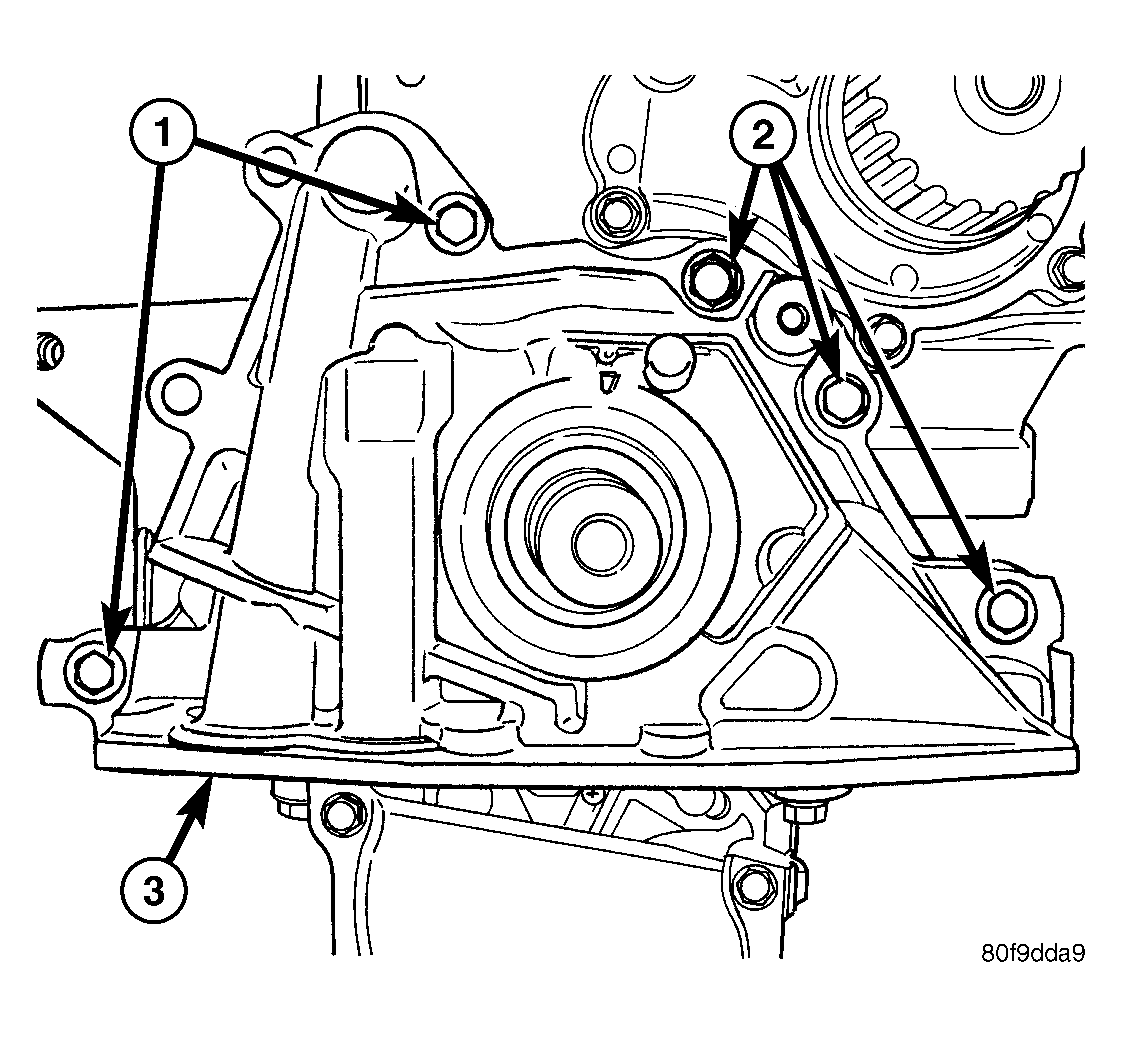

    Fig 3: Oil Pump
    GC0021251Courtesy of DAIMLERCHRYSLER CORP.
    1 - BOLTS
    2 - BOLTS
    3 - OIL PUMP
  9. Disconnect negative cable from battery.
  10. Remove timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT AND SPROCKETS - REMOVAL) .
  11. Remove timing belt rear cover (Refer to ENGINE/VALVE TIMING/TIMING BELT COVER(S) - REMOVAL) .
  12. Remove oil pan (Refer to ENGINE/LUBRICATION/OIL PAN - REMOVAL) .
  13. Remove crankshaft sprocket using Special Tools 6793 and C-4685-C2. See Fig 4.
  14. Remove crankshaft key. See Fig 5.
    Fig 4: Crankshaft Sprocket-Removal
    GC0026084Courtesy of DAIMLERCHRYSLER CORP.
    1 - SPECIAL TOOL 6793
    2 - SPECIAL TOOL C-4685-C2
    3 - CRANKSHAFT SPROCKET
    Fig 5: Crankshaft Key
    GC0026085Courtesy of DAIMLERCHRYSLER CORP.
    1 - CRANKSHAFT KEY
  15. Remove oil pick-up tube.
  16. Remove oil pump and front crankshaft seal. See Fig 6.

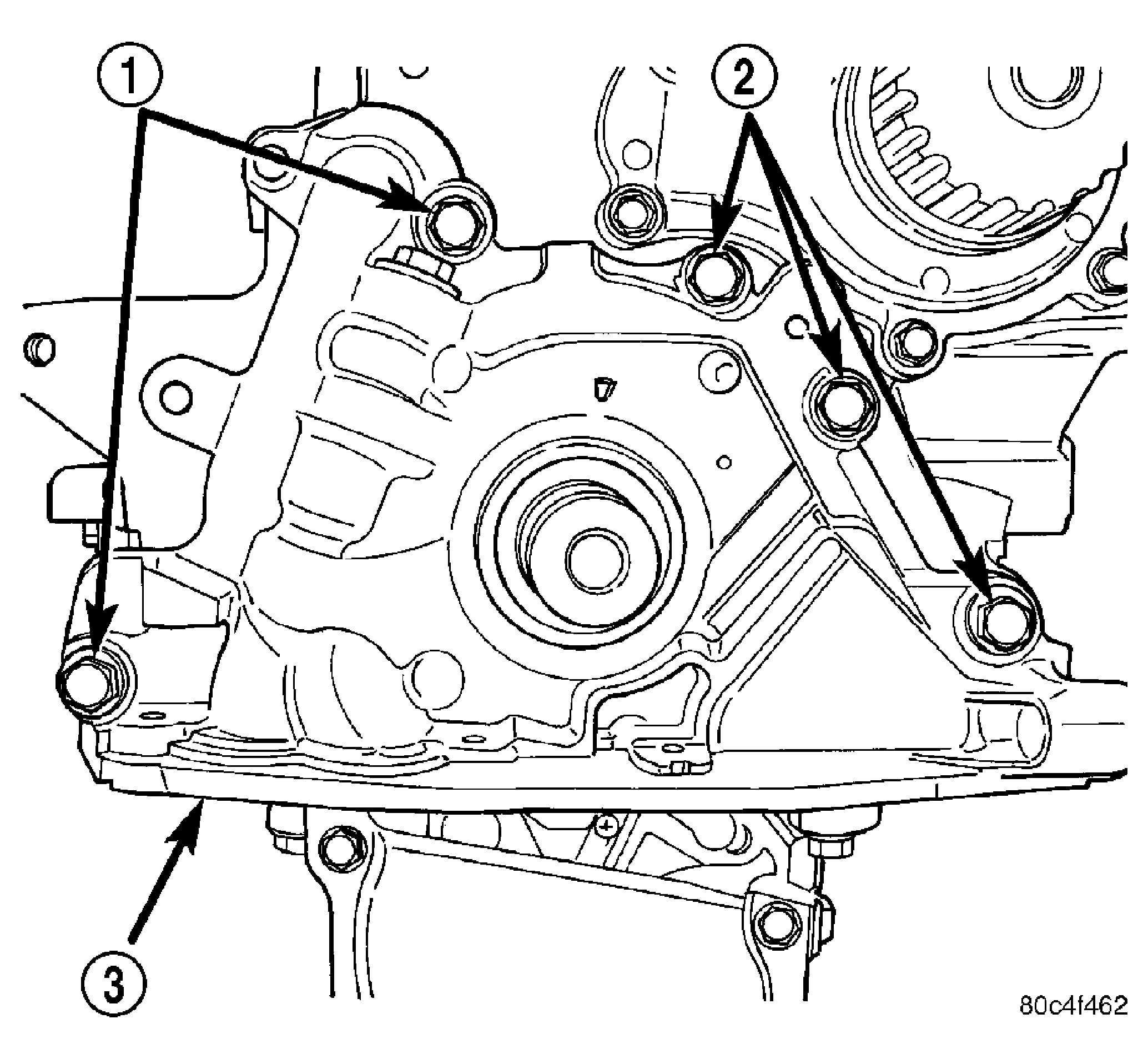

Fig 6: Oil Pump
GC0026087Courtesy of DAIMLERCHRYSLER CORP.
1 - BOLTS
2 - BOLTS
3 - OIL PUMP
