Brakes - Base: Rotors: Removal: Front
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

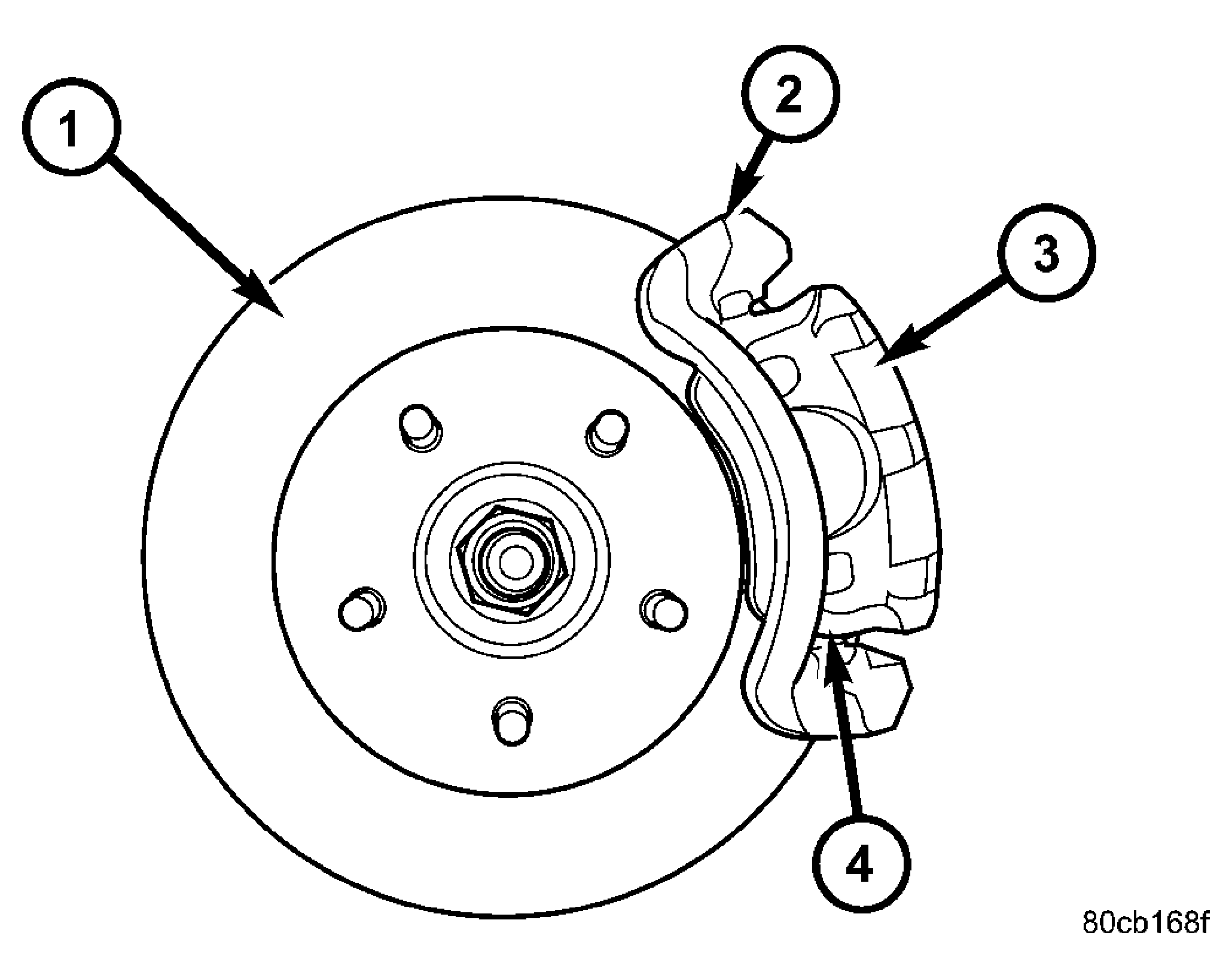

| 1 - DISC BRAKE ROTOR |
| 2 - CALIPER ADAPTER |
| 3 - DISC BRAKE CALIPER |
| 4 - SHOES |
- Raise and support the vehicle.
- Remove the tire and wheel assembly.CAUTION: Never allow the disc brake caliper to hang from the brake hose. Damage to the brake hose will result. Provide a suitable support to hang the caliper securely.
- Remove the caliper adapter (2). See Fig 1. (Refer to BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPER ADAPTER - REMOVAL) .
- Remove the disc brake rotor (1).
