Brakes - Base: Lever: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

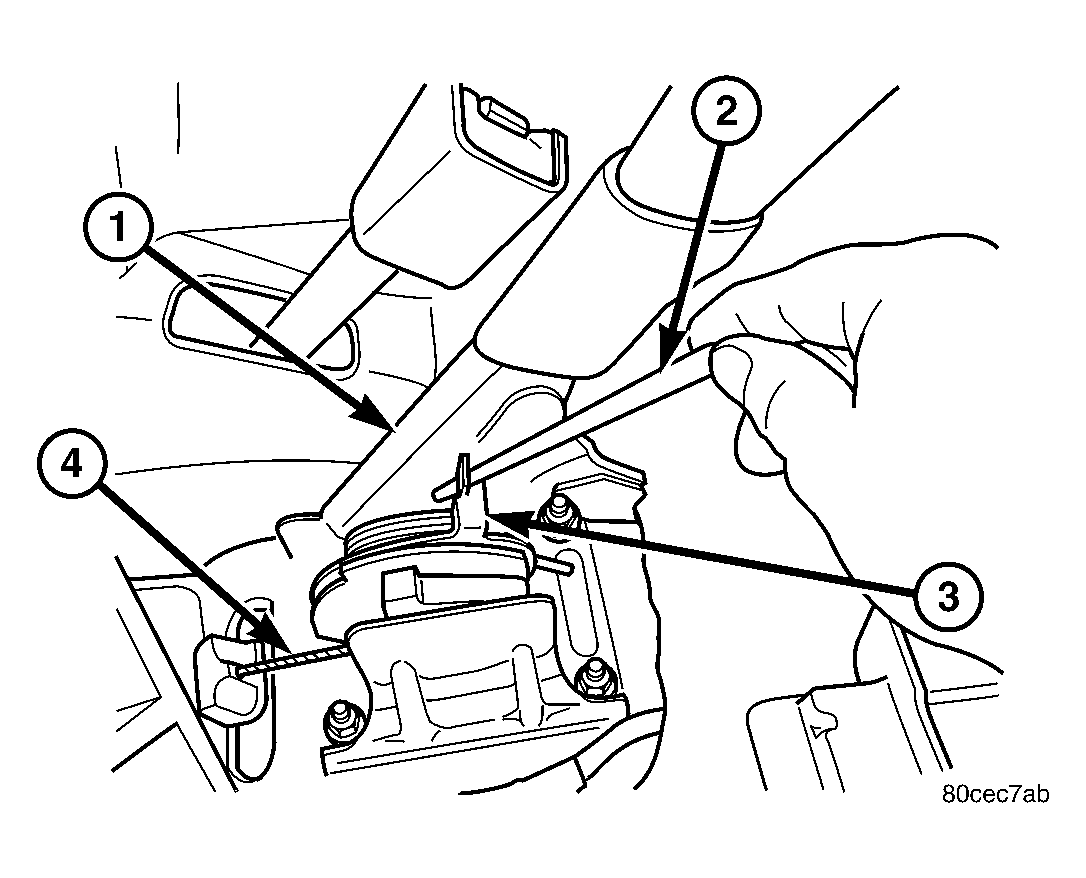

Fig 1: Lock Out Cables

Courtesy of DAIMLERCHRYSLER CORP.

1 - PARKING BRAKE HANDLE

2 - PUNCH

3 - CABLE GUIDE

4 - CABLE

Remove the center floor console, (Refer to BODY/INTERIOR/FLOOR CONSOLE - REMOVAL) .
Lock out the parking brakes. See Fig 1. (Refer to BRAKES/PARKING BRAKE - ADJUSTMENTS) .

Fig 2: Parking Brake Lever
Courtesy of DAIMLERCHRYSLER CORP.

1 - PARK BRAKE LEVER ASSEMBLY

2 - EQUALIZER
Disengage the front cables from the equalizer (2). See Fig 2.
Disconnect the parking brake lamp switch wire. See Fig 2.
Remove the parking brake lever assembly (1) mounting bolts. See Figure.
Remove the lever assembly (1).
