Parking Brake Pedal Mechanism: Removal
WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.
- Reload parking brake mechanism. See Reloading Self Adjuster under ADJUSTMENTS.
- Remove the brake warning light wire from the park brake mechanism switch. See Fig 1 .
- Using a screw driver, pry the park brake cable retaining clip from the park brake cable.
- Remove the 1 bolt holding park brake pedal assembly to door frame. Loosen but do not remove the 2 bolts attaching park brake pedal mechanism to inner body panel.
- Remove park brake pedal mechanism and cable as an assembly from body of vehicle.

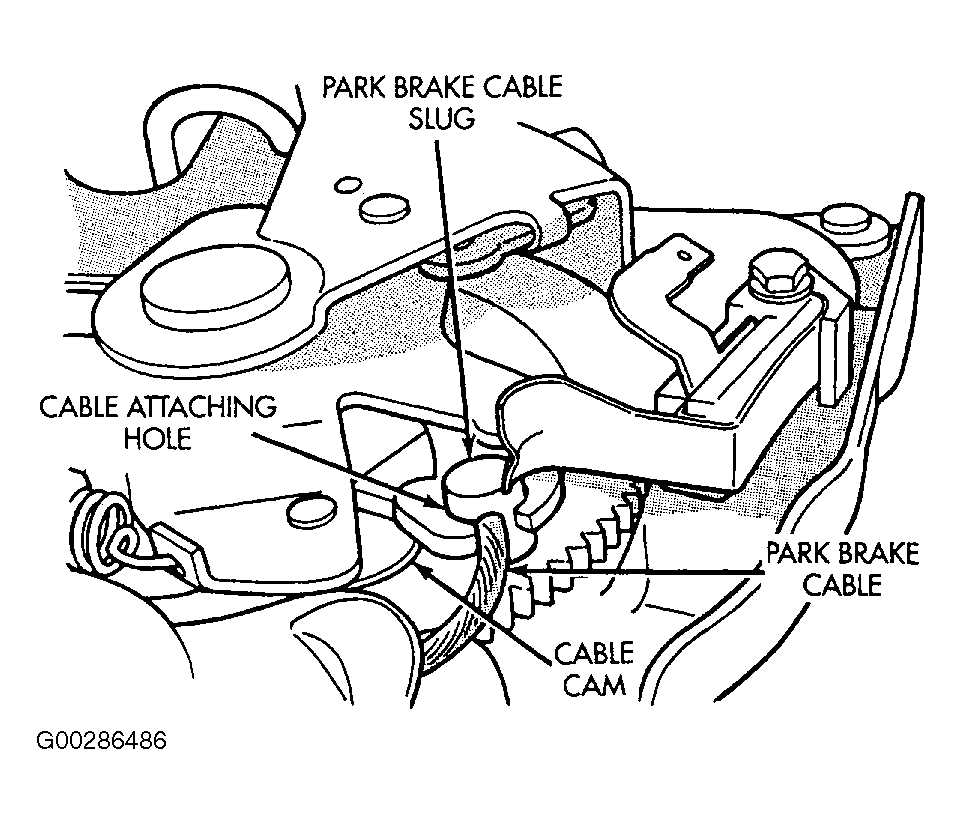

- After park brake pedal assembly is removed from vehicle body. Rotate park brake cable to align cable with notch in cable attaching hole on park brake pedal mechanism. See Fig 2 . Lift lead slug of park brake cable, out of retaining hole in park brake mechanism, then remove park brake cable from park brake mechanism.
