Reloading Self Adjuster

WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a 1/4 INCH drive ratchet and extension into 1/4 INCH square hole located in sector of park brake pedal mechanism. See Fig 1 .
  2. Pull on ratchet and extension, rotating sector toward rear of vehicle until ratchet extension contacts back of park brake pedal. This will fully wind sector spring.
  3. Insert a pin or drill bit into park brake lever mechanism to lock sector in place. See Fig 2 . Pin used to lock sector, should be 1/8 INCH in diameter by 2 INCHES long to go through both sides of park brake mechanism.
  4. When repairs are complete, adjust rear brakes before adjusting parking brake. On drum-in-hat type of rear disc brake adjust shoe diameter 6.75 INCH (171.5 mm).

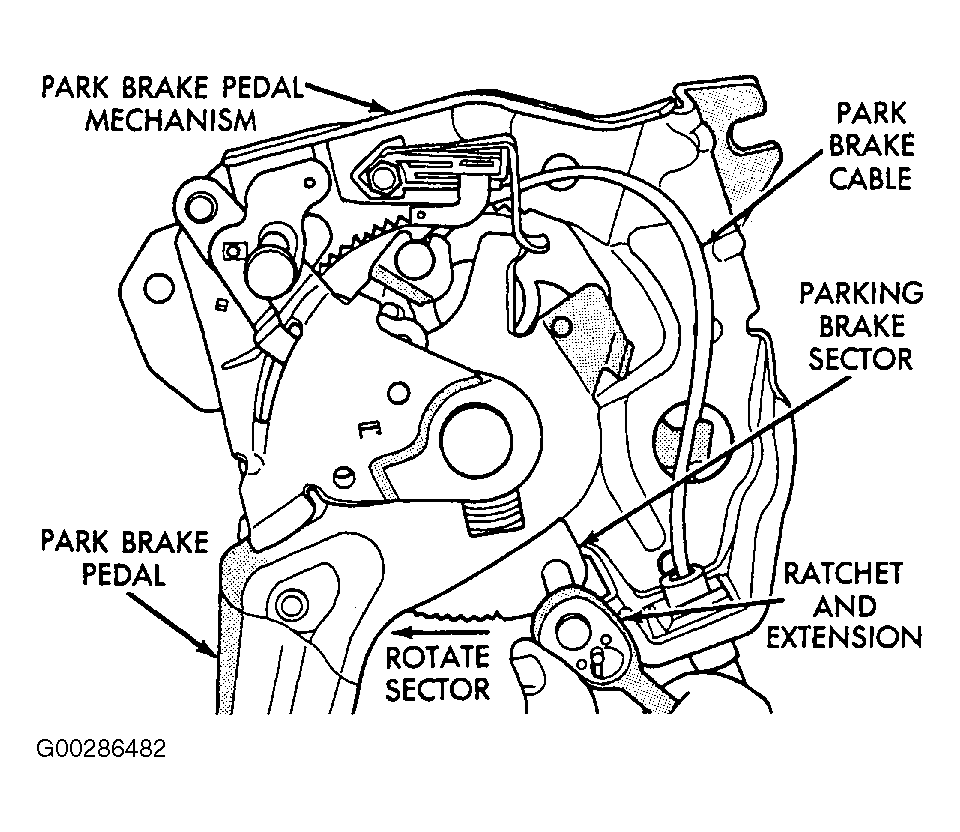

Fig 1: Winding Park Brake Sector Spring
G00286482Courtesy of CHRYSLER CORP.

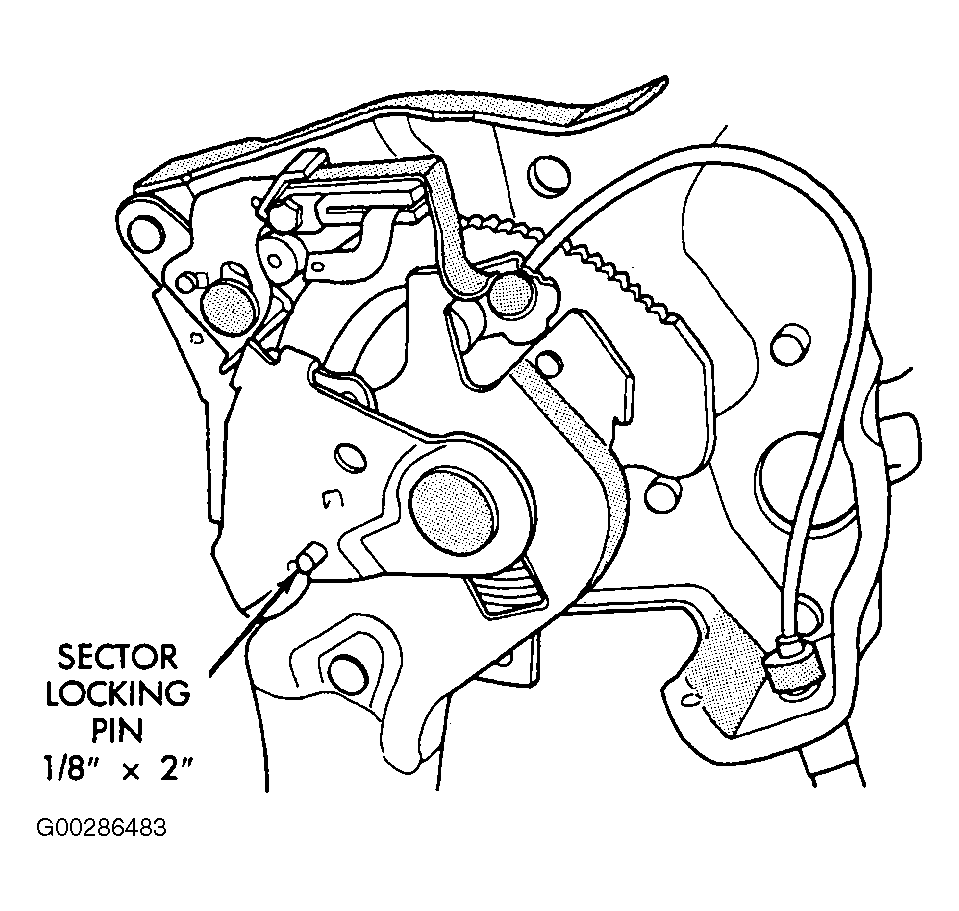

Fig 2: Locking Pin Installed In Park Brake Mechanism
G00286483Courtesy of CHRYSLER CORP.
