Valve Seats

WARNING: This page is about a different car, the 1995 Jeep Wrangler and 1994 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

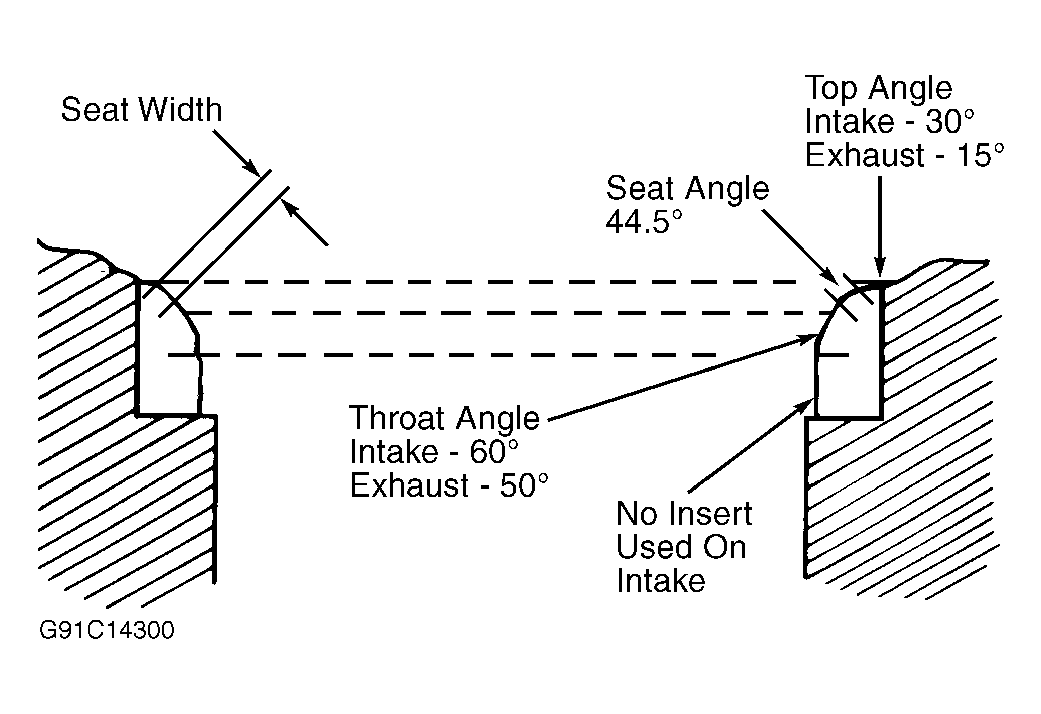

Reface valve seats to specification. Remove only enough metal to provide smooth finish. Use tapered stones to obtain specified seat width. See Figure. Seat width runout should not exceed .0025" (.063 mm) after refacing. See CYLINDER HEAD  table under ENGINE SPECIFICATIONS.
