Water Pump: Installation
WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee, 1995 Dodge Ram Wagon, 1995 Dodge Ram Van, 1995 Dodge Pickup, and 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

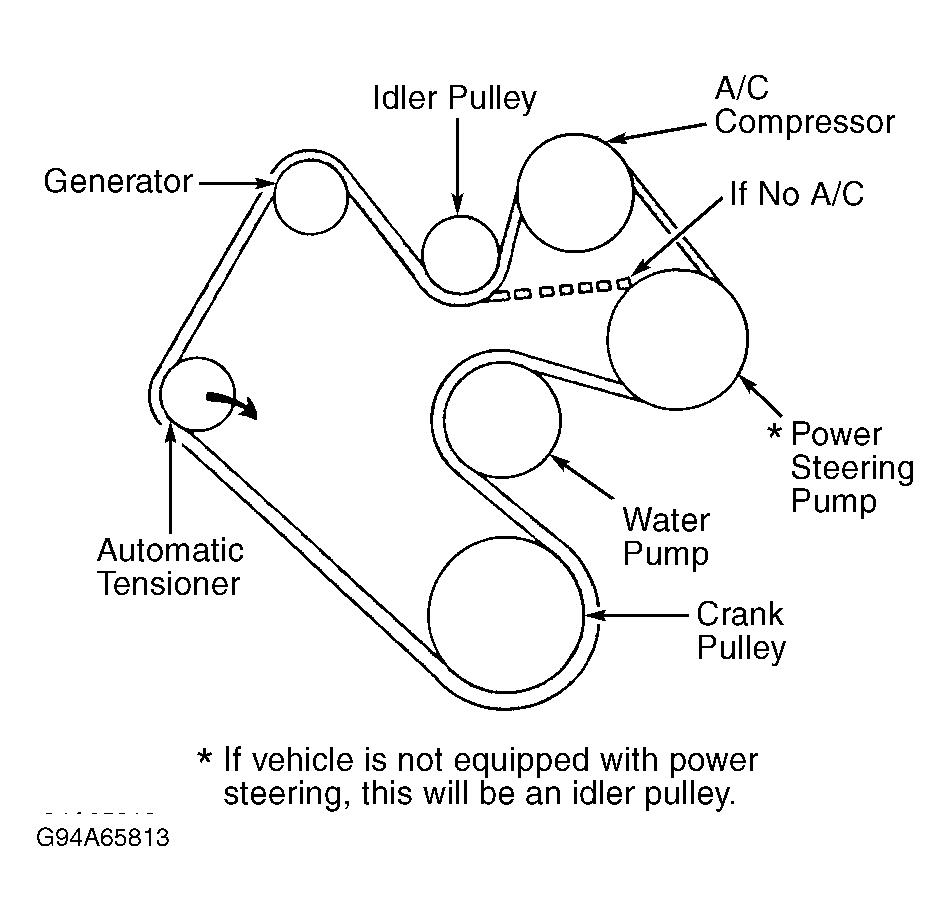

To install, reverse removal procedure using NEW gasket. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Fill system with coolant. Ensure accessory drive belt is installed in original direction to ensure proper rotation of water pump. See Fig 1.
