Timing Chain: Installation

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee, 1995 Dodge Ram Wagon, 1995 Dodge Ram Van, 1995 Dodge Pickup, and 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Install timing chain and sprockets. Ensure timing marks are aligned. See Fig 1. Install camshaft sprocket bolt and tighten to specification. See TORQUE SPECIFICATIONS .
Ensure camshaft end play is within specification. See CAMSHAFT table under ENGINE SPECIFICATIONS. If end play is not within specification, replace thrust plate, located between camshaft sprocket and camshaft. To install remaining components, reverse removal procedure.

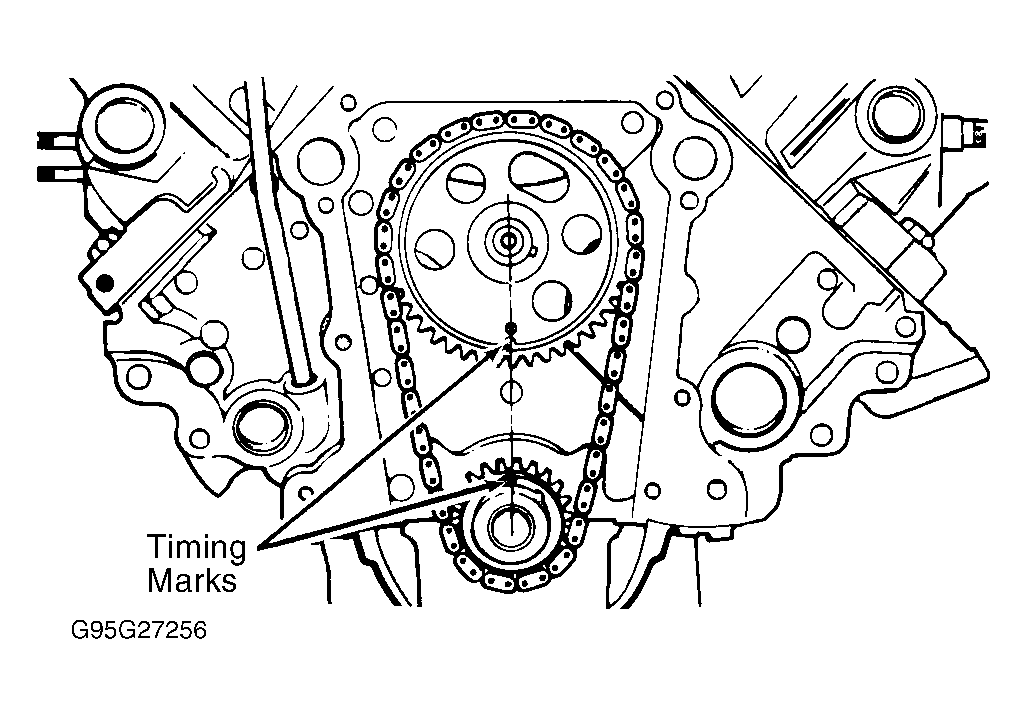

Fig 1: Aligning Timing Marks

Courtesy of CHRYSLER CORP.
