Installation (Ram Pickup & Ram Van/Wagon)
WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee, 1995 Dodge Ram Wagon, 1995 Dodge Ram Van, 1995 Dodge Pickup, and 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

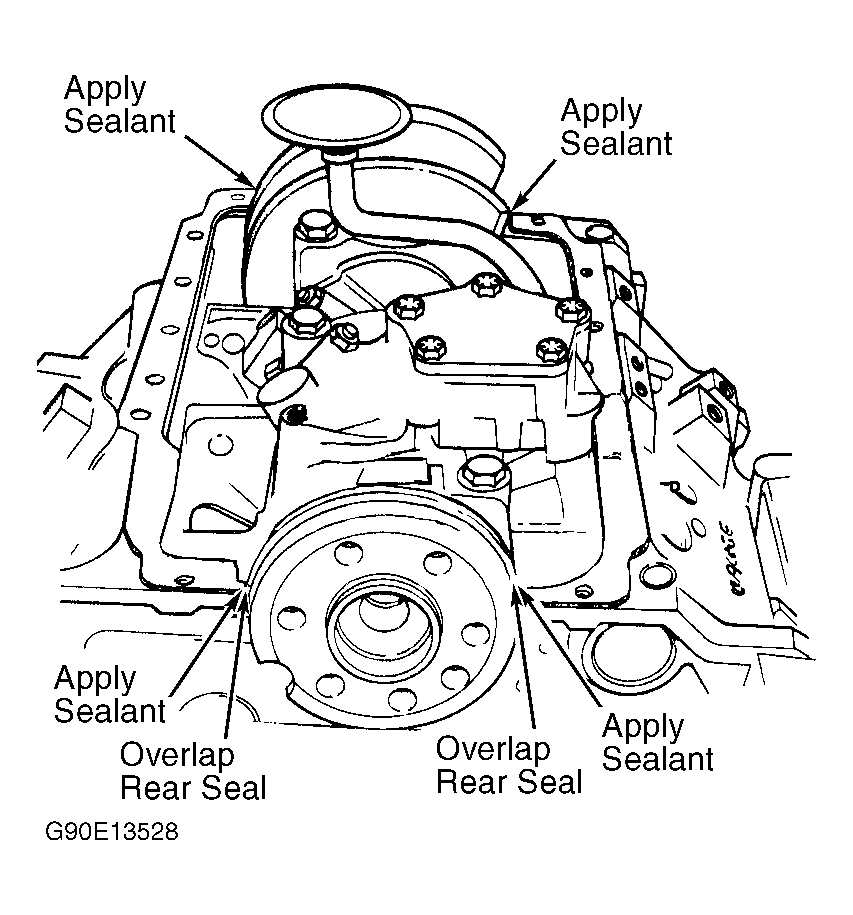

To install, reverse the removal procedure. Before installing the oil pan, apply RTV sealant where front cover contacts cylinder block, oil pan side gaskets meet end seals and end seals contact cylinder block. See Figure. Tighten bolts to specification. Refer to TORQUE SPECIFICATIONS . To install remaining components, reverse removal procedure.
