Intake Manifold: Removal
WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee, 1995 Dodge Ram Wagon, 1995 Dodge Ram Van, 1995 Dodge Pickup, and 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Release fuel pressure. See FUEL PRESSURE RELEASE . Disconnect negative battery cable. Drain cooling system. Disconnect accelerator, cruise control, and transmission kickdown cables. Disconnect fuel lines at throttle body.
- Remove engine cover (Ram Van/Wagon), air cleaner, and alternator. Disconnect necessary electrical wiring, coolant hoses and vacuum hoses. Remove distributor cap and spark plug wires. Remove valve covers (if necessary).

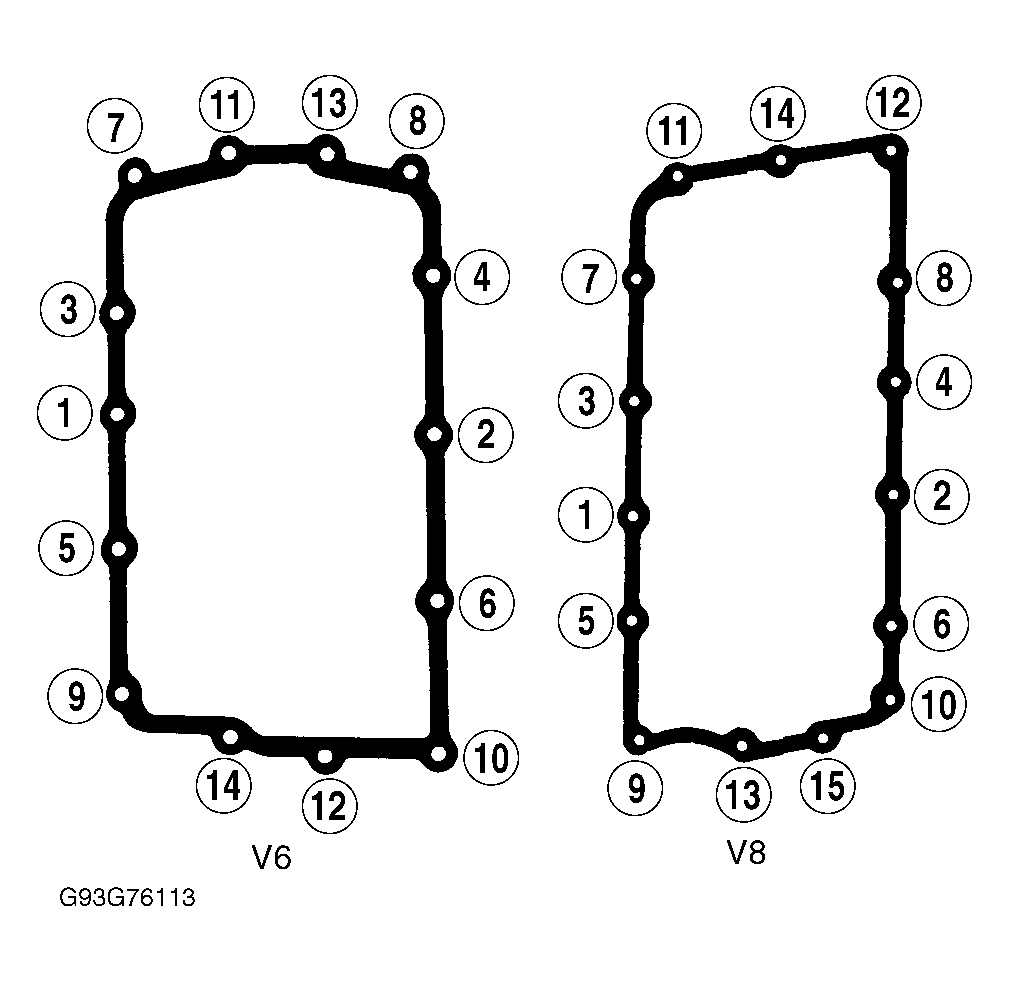

- Remove bolts, intake manifold and gaskets. Separate throttle body from intake manifold (if necessary). Turn intake manifold upside-down and remove plenum pan (if necessary).
