Removal & Installation: Camshaft: Installation
WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee, 1995 Dodge Ram Wagon, 1995 Dodge Ram Van, 1995 Dodge Pickup, and 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure cup plugs are installed in oil passages behind thrust plate. Lubricate camshaft and bearings, and install within 2" (50.8 mm) of final installation location.

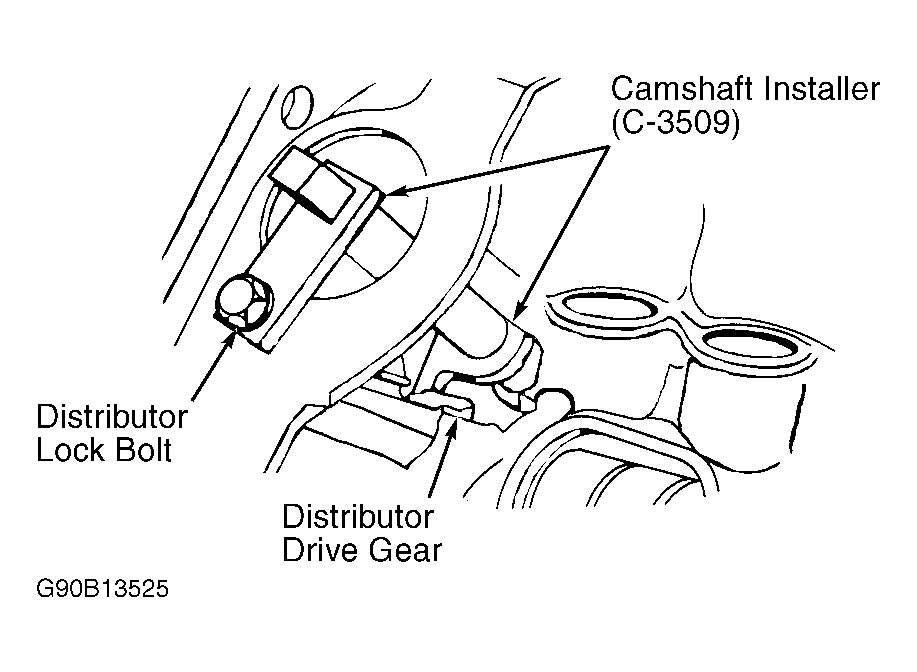

- Install Camshaft Installer (C-3509) with long area behind distributor drive gear. See Fig 1. This prevents camshaft from contacting plug, located in rear of cylinder block. Install distributor lock bolt to retain camshaft installer.
- Install the camshaft thrust plate and the oil tab. Ensure the tang engages with the lower right hole of the camshaft thrust plate. Tighten camshaft thrust plate bolts to specification. Refer to TORQUE SPECIFICATIONS . Top edge of oil tab should be flat against camshaft thrust plate for timing chain lubrication.
- To install remaining components, reverse removal procedure. Check camshaft end play. If end play exceeds specification, replace thrust plate. See CAMSHAFT table under ENGINE SPECIFICATIONS. Ensure components are installed in original location.
CAUTION:
DO NOT allow engine RPM to exceed fast idle until valve lifters have filled with oil and become quiet.
