General Procedures: Adjustment

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshafts.

    Refer to: Left Camshaft  .

    Refer to: Right Camshaft  .

  2. CAUTION:
    • Do not use a magnet to remove the tappet.
    • Use the following formula to calculate the required bucket thickness. Original thickness + measured clearance - desired clearance = required bucket thickness.
    G11309615

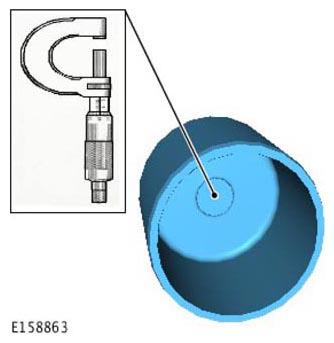

    Remove the tappet and measure the thickness checking it against the specification table, replace if necessary. Refer to: SPECIFICATIONS .
