Removal And Installation: Installation
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
-
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Jaguar approved cleaning fluid (Loctite 7063) is used to clean the mating faces.

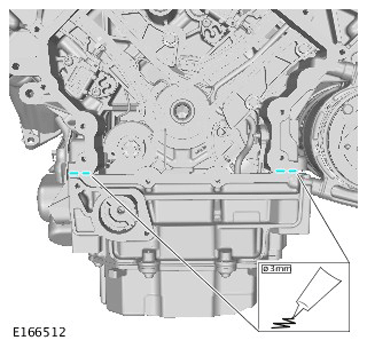

NOTE: Install a new lower timing cover.Apply RTV sealant (Loctite 5901G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.
-
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Jaguar approved cleaning fluid (Loctite 7063) is used to clean the mating faces.

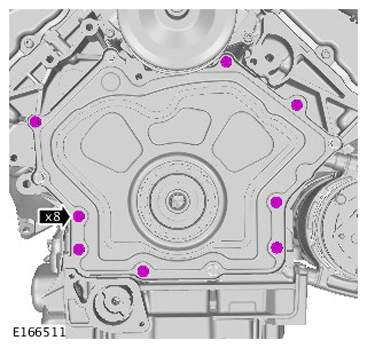

NOTE: Install a new lower timing cover.Install the bolts, but do not tighten fully at this stage.
Special Tool(s): 303-1433
-
NOTE:

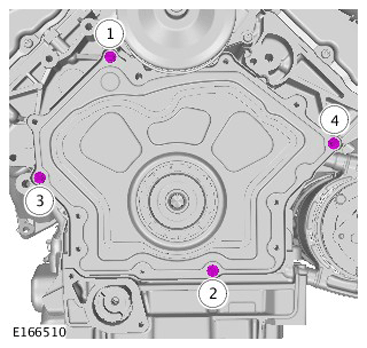

- Tighten the bolts in the indicated sequence.
- Special tools shown removed for clarity.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Torque Specification: 12 Nm
-
NOTE: Special tools shown removed for clarity.

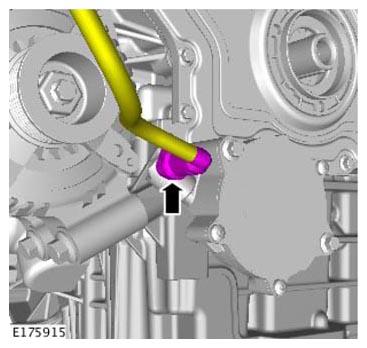

Torque Specification: 12 Nm
- Remove the special tools.
-
NOTE: Lubricate the seal with clean engine oil.
Torque Specification: 12 Nm

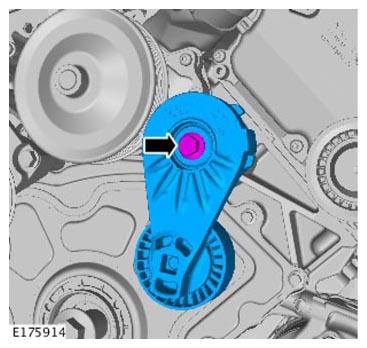

Torque Specification: 48 Nm
- Refer to: Crankshaft Pulley - Installation
- Refer to: Accessory Drive Belt (Installation).
- Connect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
- Refer to: Engine Oil Draining and Filling (General Procedures).
