Front Dynamic Balancer: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

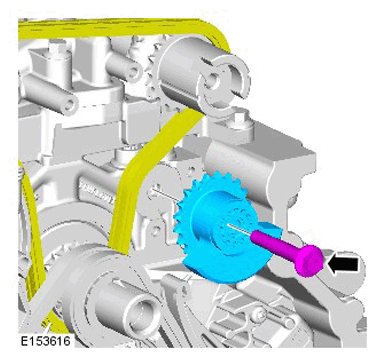

  1. G11286985

    Torque Specifications:

    Stage 1 25 Nm

    Stage 2 30°

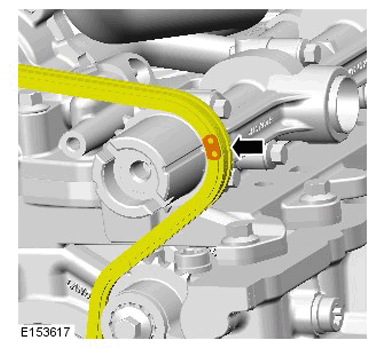

  2. G11286987

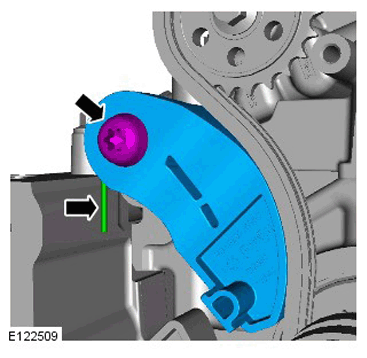

  3. G11285218

    Torque Specification: 21 Nm

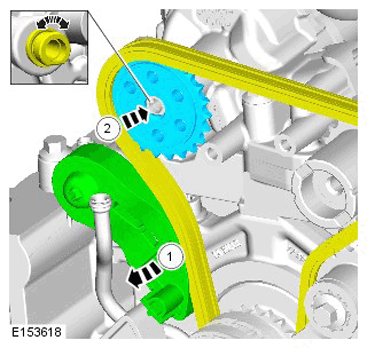

  4. G11286988

    Using a suitable tool, compress the timing chain tensioner.

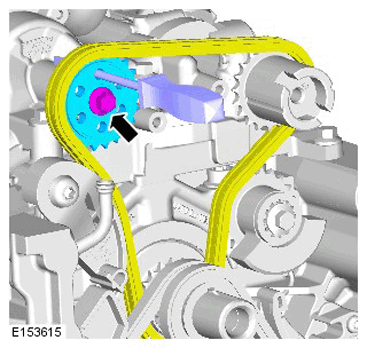

  5. CAUTION: Using a suitable tool, lock the component.
    G11286984

    Torque Specification: 21 Nm

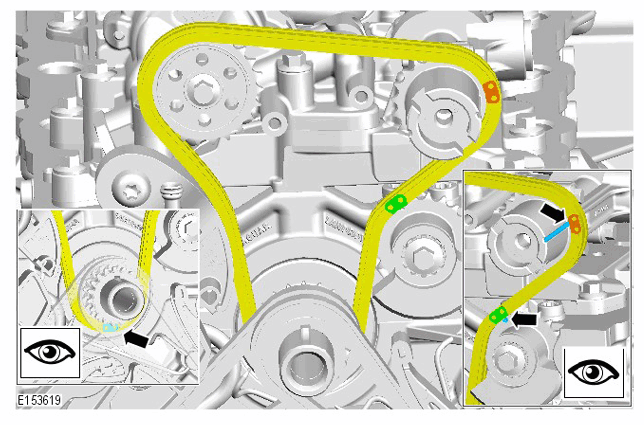

  6. G11286990

    Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.

    Special Tool(s):  JLR-303-1621

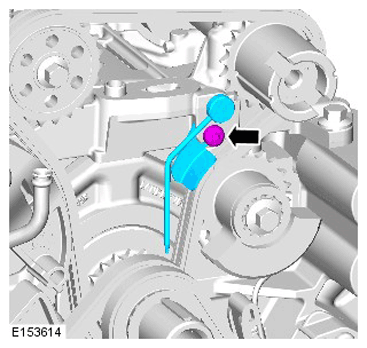

  7. G11286982

    Torque Specification: 11 Nm

  8. Refer to: Oil Pan - AWD - Installation .

    Refer to: Oil Pan Extension - RWD - Installation .
