Lower Timing Cover (G2498217): Installation

The following step(s) applies to:

All vehicles

1. Install a new drive chain cap.

   Renew Part: Timing chain plug Quantity: 1 .

2. CAUTION:

   • Take extra care not to damage the lower timing cover or the dowel pins.
   • Failure to position the dowels as shown in the illustration may result in engine damage.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

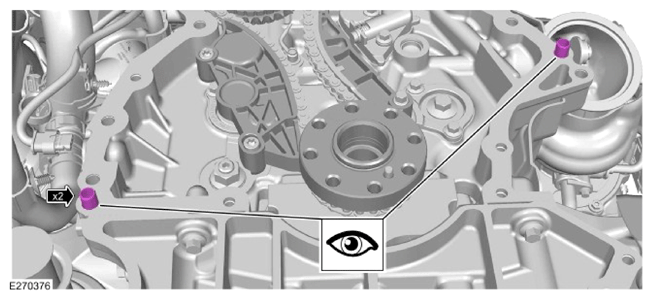

   Use a suitable tool to position the dowels as shown in the illustration.

3. CAUTION: Failure to position the dowels as shown in the illustration may result in engine damage.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

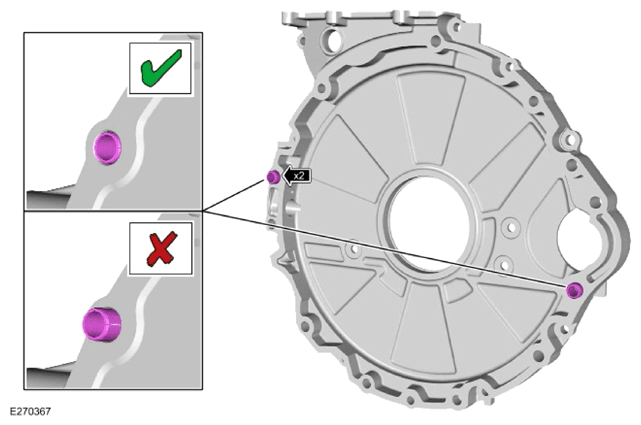

   Use a suitable tool to position the dowels as shown in the illustration.

4. CAUTION: Make sure that the mating faces are clean and free of foreign material.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

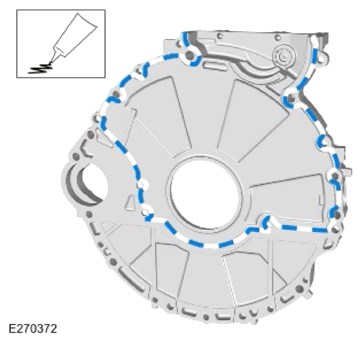

   Apply a 3 mm diameter bead of sealant, to the area shown.

   Refer to: SPECIFICATIONS

5. CAUTION: Take care not to damage the cylinder head gasket when installing the lower timing cover.
   NOTE: The lower timing cover must be installed within 7 minutes of the sealant application.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

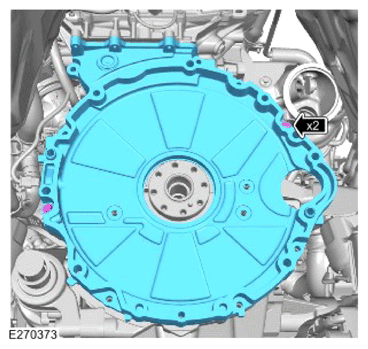

   • Install the lower timing cover.
   • Install and tighten the 2 bolts shown to allow the dowels to be pushed into the correct position.

     Torque  : 25 Nm

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

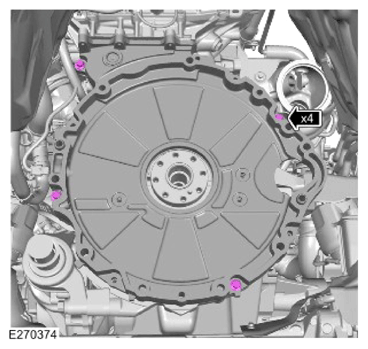

   • Install 2 additional bolts as shown.
   • Tighten the 4 bolts.

     Torque  : 25 Nm

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

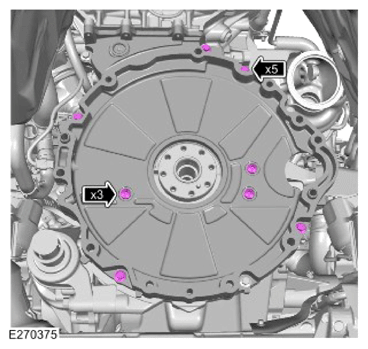

   Install and tighten the remaining 8 bolts.

   Torque

   1. M8x35 Hex bolts: 25 Nm
   2. M8x30 Torx bolts: 25 Nm

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

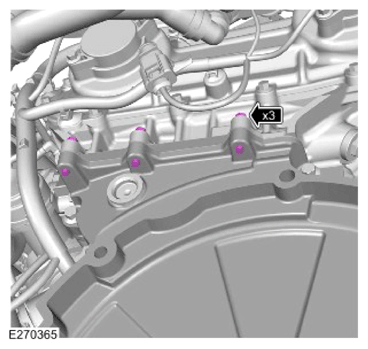

   Install and tighten the 3 lower timing cover upper bolts.

   Torque  : 12 Nm

9. Install the CKP.

   Refer to: CRANKSHAFT POSITION SENSOR (G1998396)

10. Install the crankshaft rear seal.

    Refer to: CRANKSHAFT REAR SEAL (G2498209)

11. Connect the 12V system.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

    The following step(s) applies to:

    Plug in hybrid electric vehicles only

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Power Up the HV  system. Only technicians qualified to EVAP  level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the EV  Safety Rules.

    Refer to: PHEV POWER DOWN/UP - COMPLETE VEHICLE - PATHFINDER
