Engine Front Cover - Vehicles With: PHEV (G2756532): Installation

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Inspect the front cover and replace if necessary.
    • Make sure that the surface of the front cover and the engine is clean and free of foreign material.
    • Steps 1-4 must be completed within 7 minutes of starting to apply the RTV.

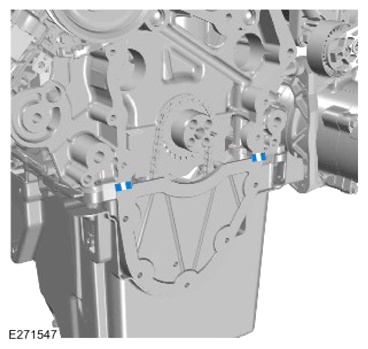

    G15617707Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Apply RTV sealant in the position shown.

    Refer to: SPECIFICATIONS

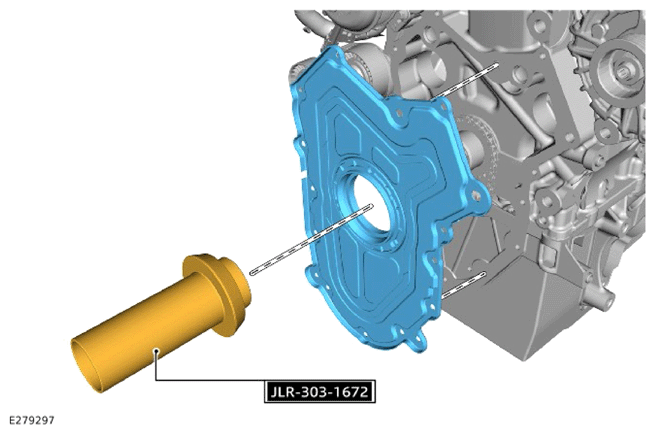

  2. G15617708Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the engine front cover.
    • Use the front cover alignment tool to align the front cover.

      Special Tool(s): JLR-303-1672

  3. CAUTION: Do not fully tighten the bolts at this stage.

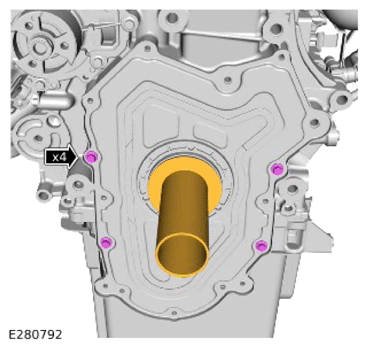

    G15617709Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and finger tighten the 4 bolts.

  4. CAUTION: Continuous forward pressure must be applied on the tool.

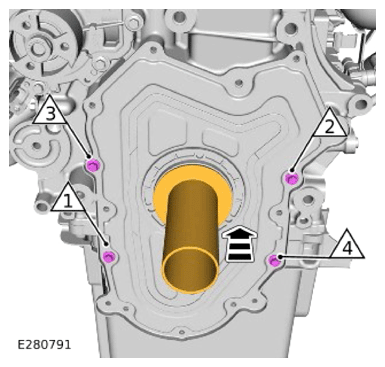

    Fig 1: Engine Front Cover Tightening Sequence
    G15617710Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fully tighten the 4 bolts in the sequence illustrated.

    Torque  : 12 Nm

  5. CAUTION: This step must be completed within 40 minutes of starting to apply the RTV.

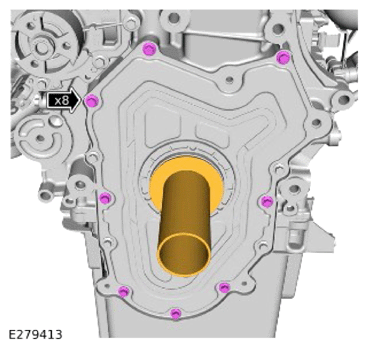

    G15617711Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 8 bolts.

    Torque  : 12 Nm

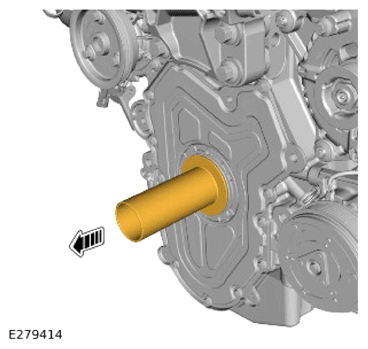

  6. G15617712Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the front cover alignment tool.

    Special Tool(s): JLR-303-1672

  7. CAUTION: This step is only required if the front cover is re-used.

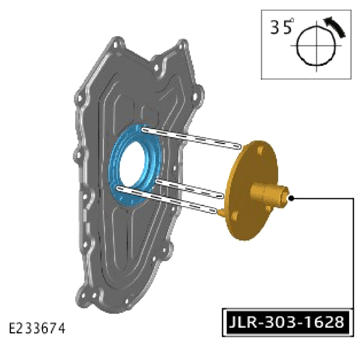

    G15617713Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1628

    • Rotate the special tool and the crankshaft front seal 35° in a counter clockwise direction.
    • Remove the special tool and the crankshaft front seal.
    • Remove and discard the crankshaft front seal.
  8. CAUTION: This step is only required if the front cover is re-used.

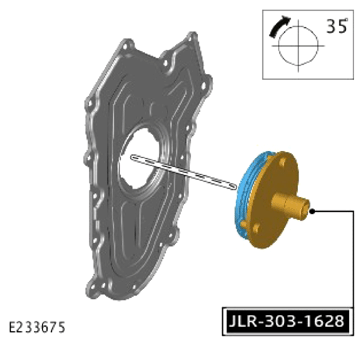

    G15617714Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new crankshaft front seal to the special tool.

      Special Tool(s): JLR-303-1628

      Renew Part: Crankshaft front oil seal Quantity: 1 .

    • Install the special tool and the crankshaft front seal.
    • Rotate the crankshaft front seal and special tool 35° in a clockwise direction.
    • Remove the special tool.

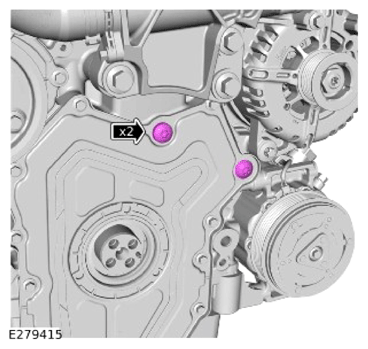

  9. G15617715Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 2 bolts.

    Torque  : 25 Nm

    • Install the engine coolant pump wiring harness bracket.
    • Install and tighten the bolt.

      Torque  : 10 Nm

    • Install the BISG  tensioner.
    • Install and tighten the bolt.

      Torque  : 47.5 Nm

  12. Install the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY - VEHICLES WITH: PHEV (G2756530)

  13. Fill the engine with the correct amount of engine oil.

    Refer to: ENGINE OIL VACUUM DRAINING AND FILLING (G1997675)

  14. Connect the 12V system.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
