Cylinder Head (G2498210): Installation

The following step(s) applies to:

All vehicles

1. Inspect the cylinder head face for distortion.

   Refer to: CYLINDER HEAD DISTORTION

2. CAUTION: Make sure that the dowels and dowel holes are clean and free from debris and foreign material.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

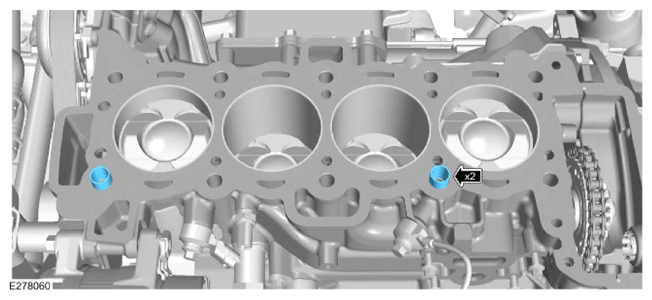

   Install the 2 cylinder head locating dowels.

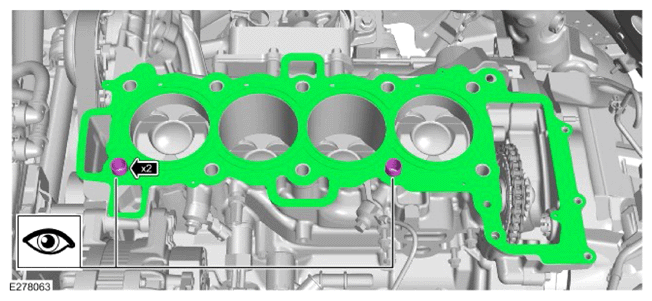

3. NOTE: The cylinder head gasket must be installed onto the cylinder block so that it aligns with the dowels.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Install a new cylinder head gasket.

   Renew Part: Cylinder head gasket Quantity: 1 .

4. WARNING: This step requires the aid of another technician.
   CAUTION:

   • Make sure that the component is correctly located on the locating dowels.
   • Bolts must be tightened in the sequence illustrated.
   • Bolts must be released in the sequence illustrated.

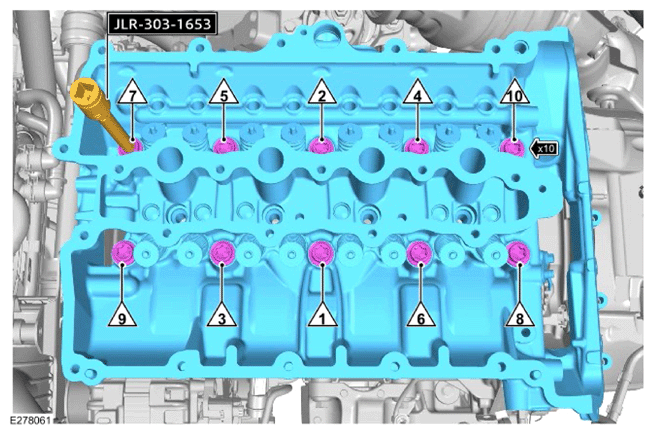

   Fig 1: Cylinder Head Tightening Sequence

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
   • With the aid of another technician install the cylinder head.
   • Use the special tool to install and tighten the 10 new cylinder head bolts.

     Install the Special Tool(s): JLR-303-1653

     Renew Part: Cylinder head bolts Quantity: 10 .

     Torque

     1. Stage 1: 30 Nm
     2. Stage 2: 62 Nm
     3. Stage 3: Loosen 180°
     4. Stage 4: 62 Nm
     5. Stage 5: 115°

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

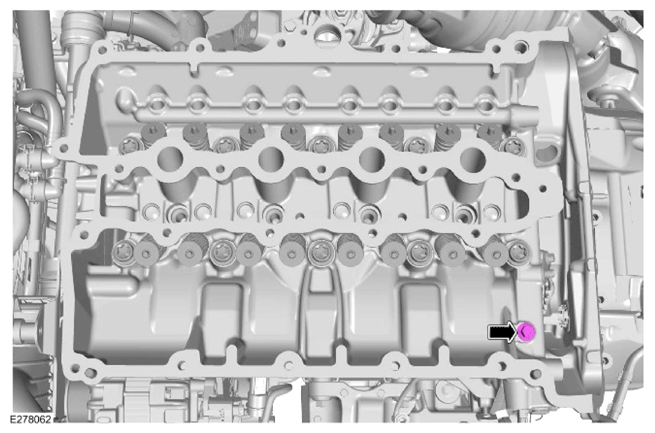

   Install and tighten the remaining bolt to the cylinder head.

   Torque  : 25 Nm

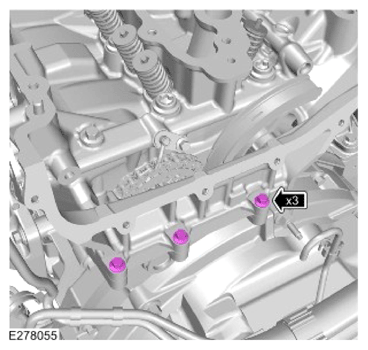

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Install and tighten the 3 bolts.

   Torque  : 12 Nm

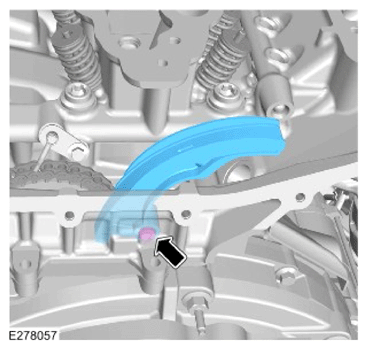

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new secondary timing chain tensioner arm.

     Renew Part: Timing chain tensioner arm Quantity: 1 .

   • Install and tighten the new bolt.

     Torque  : 25 Nm

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

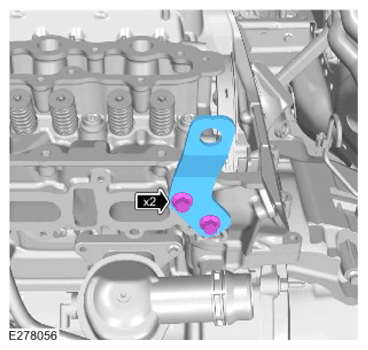

   • Install the engine lifting bracket.
   • Install and tighten the 2 bolts.

     Torque  : 25 Nm

9. CAUTION: Make sure that the components are clean, dry and free from corrosion and foreign material.
   NOTE: Make sure the components are installed to their original positions.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

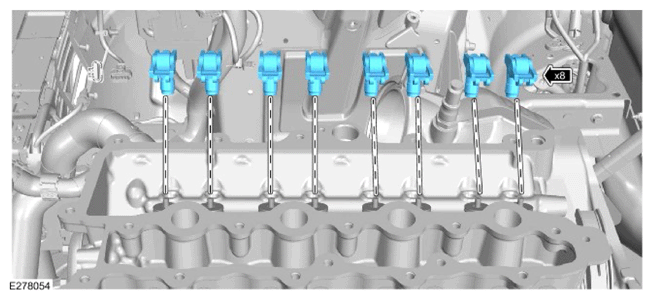

   • Lubricate the 8 hydraulic valve tappets with clean engine oil.

     Refer to: SPECIFICATIONS

   • Install the 8 hydraulic valve tappet and roller finger camshaft follower assemblies to their original position.

10. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

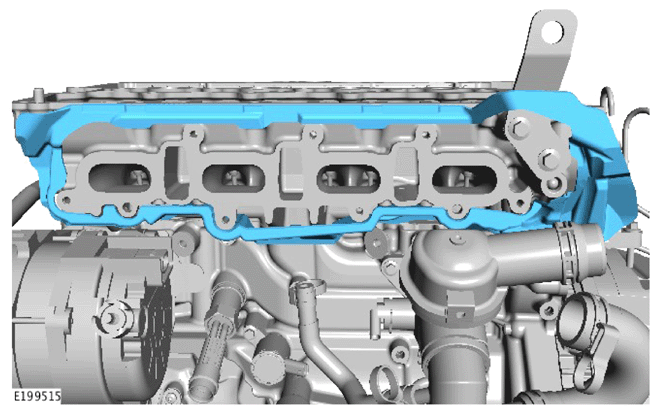

    Install the side NVH  pad.

11. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the front NVH  pad.

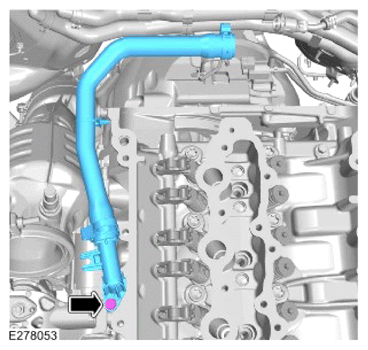

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the coolant pipe to the cylinder head assembly.
    • Install and tighten the bolt.

      Torque  : 8 Nm

13. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

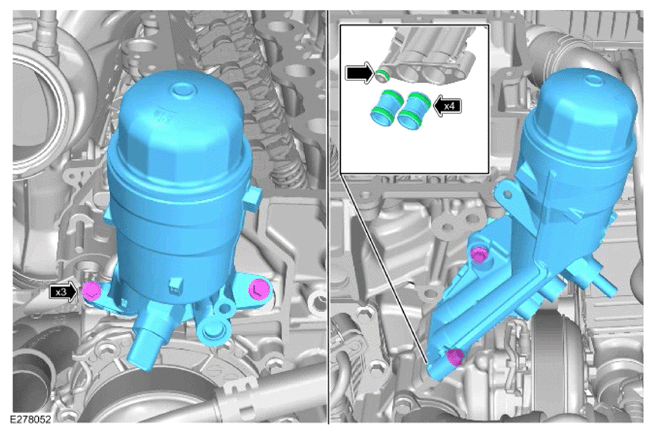

    • Install 5 new O-ring seals to the oil filter housing assembly.

      Renew Part: Oil filter housing inlet/outlet O-ring seals Quantity: 4 .

      Renew Part: Oil filter housing drain port O-ring seal Quantity: 1 .

    • Install the oil filter housing.
    • Install and tighten the 3 bolts.

      Torque  : 12 Nm

14. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

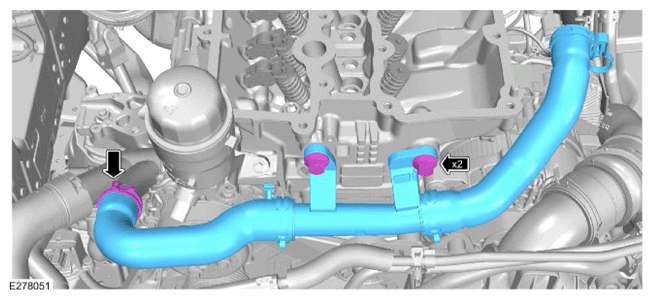

    • Install the coolant pipe assembly.
    • Secure the coolant hose clamp.
    • Install and tighten the 2 bolts.

      Torque  : 12 Nm

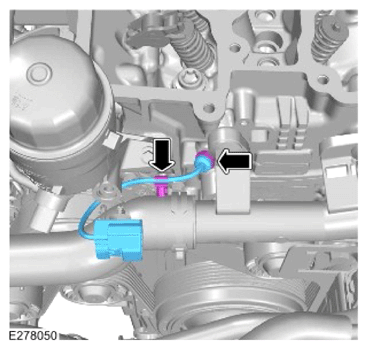

15. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the oil temperature sensor.

      Torque  : 11 Nm

    • Secure the clip.

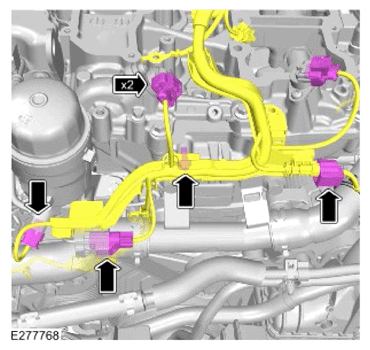

16. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the wiring harness into the correct position.
    • Connect the 5 electrical connectors.
    • Install and tighten the bolt.

      Torque  : 6 Nm

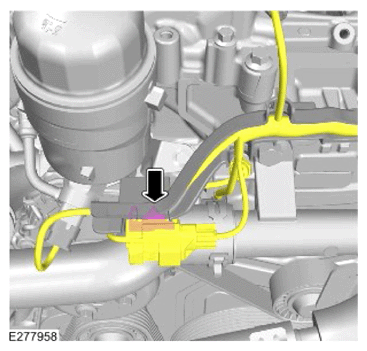

17. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the oil temperature sensor connector clip.

18. Install the valve cover.

    Refer to: VALVE COVER (G2498214)

19. Install the turbocharger.

    Refer to: TURBOCHARGER (G2270371)

20. Install the intake manifold.

    Refer to: INTAKE MANIFOLD - VEHICLES WITH: PHEV (G2756535)

21. Install the oil filter element.

    Refer to: OIL FILTER ELEMENT (G2498216)

22. Connect the 12V system.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

    The following step(s) applies to:

    Plug in hybrid electric vehicles only

23. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Power Up the HV  system. Only technicians qualified to EVAP  level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the EV  Safety Rules.

    Refer to: PHEV POWER DOWN/UP - COMPLETE VEHICLE - PATHFINDER
