Speed Control Switch - INGENIUM I4 2.0L Petrol (G1899121): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Make the Supplemental Restraint System (SRS) safe.
Refer to: STANDARD WORKSHOP PRACTICES
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the driver airbag.
Refer to: DRIVER AIRBAG MODULE
NOTE: Make sure that the harness is routed to the position noted on removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the retaining screws.
- Partially remove the paddle shifter.
- Disconnect the electrical connector.
- Remove the paddle shifter.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

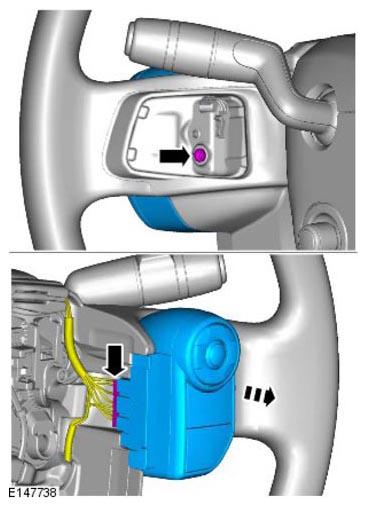

- Remove the retaining screw.
- Disconnect the electrical connector.
- Remove the speed control switch.
