Speed Control Switch - INGENIUM I4 2.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1817314): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

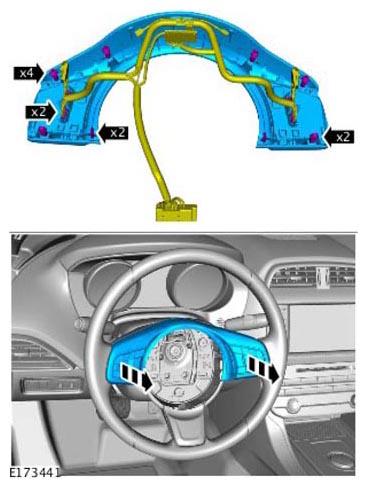

- Make the SRS system safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
- Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Refer to: DRIVER AIRBAG MODULE
-

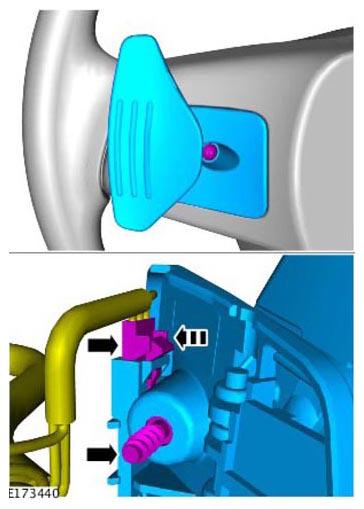

NOTE: Repeat the step for the other side.

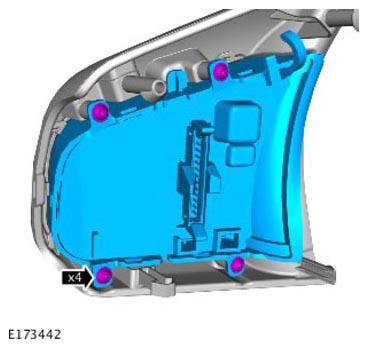

Torque : 3Nm
Torque : 2Nm
