Roof Opening Panel Glass (G1851641): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

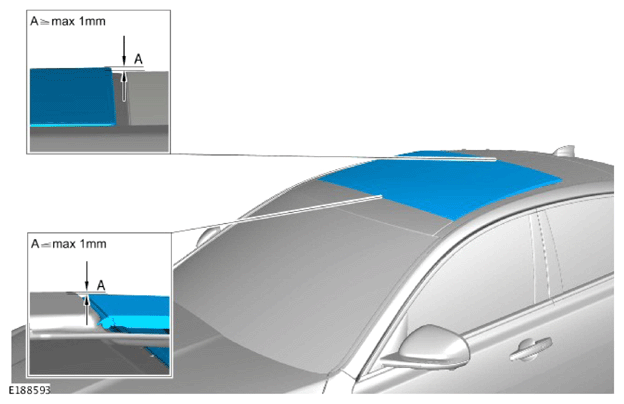

  1. NOTE: Roof opening panel should position in the center of its aperture.
    G14011642Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Align the roof opening panel.

    Refer to: ROOF OPENING PANEL ALIGNMENT

  2. To install, reverse the removal procedure.
