Roof Opening Panel Alignment (G1866215)

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

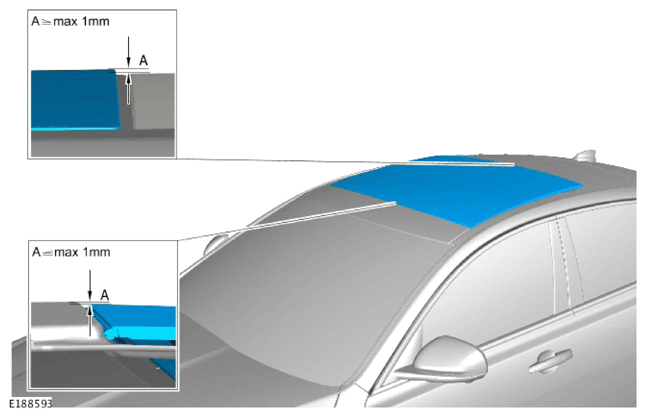

NOTE: With the opening panel closed, check the alignment of the glass to the roof panel as illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

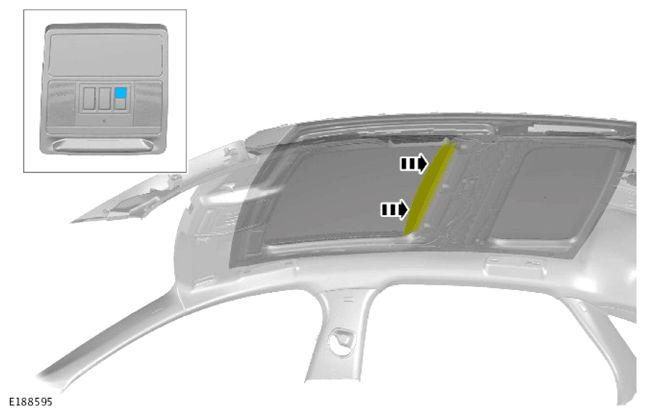

Open the opening panel blind.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

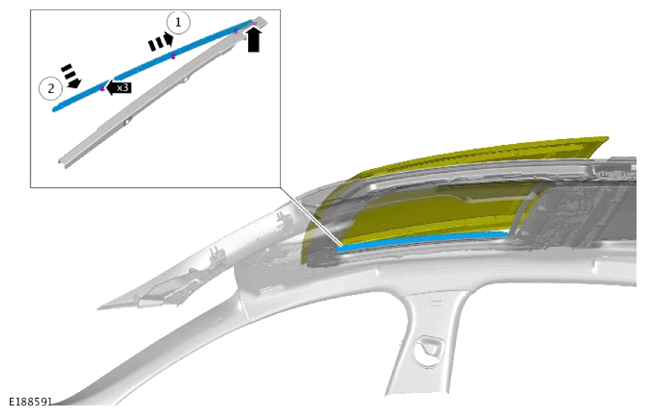

NOTE: This step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

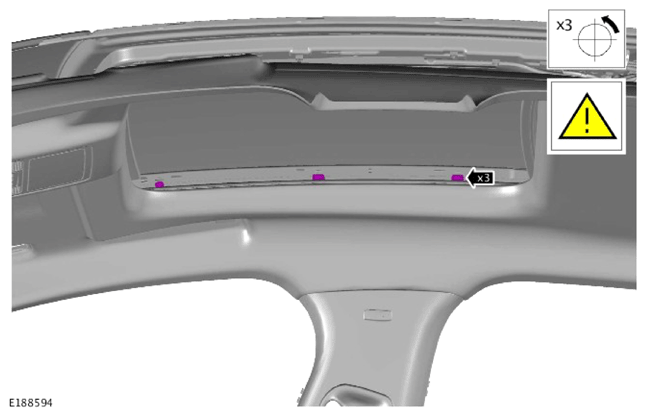

CAUTION: Loosen but do not fully remove the bolts.

NOTE: This step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

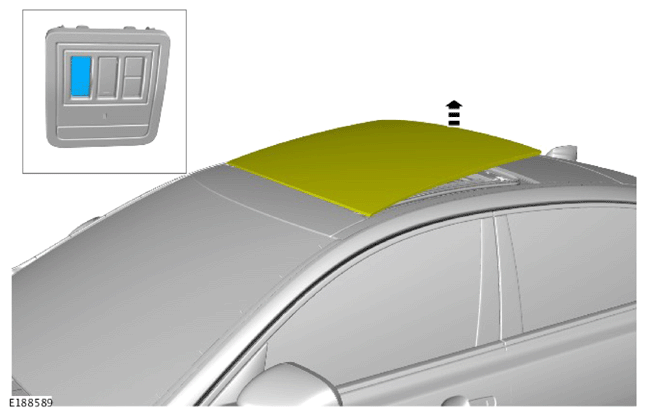

NOTE: Roof opening panel should position in the center of its aperture.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Align the roof opening panel.
NOTE: This step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

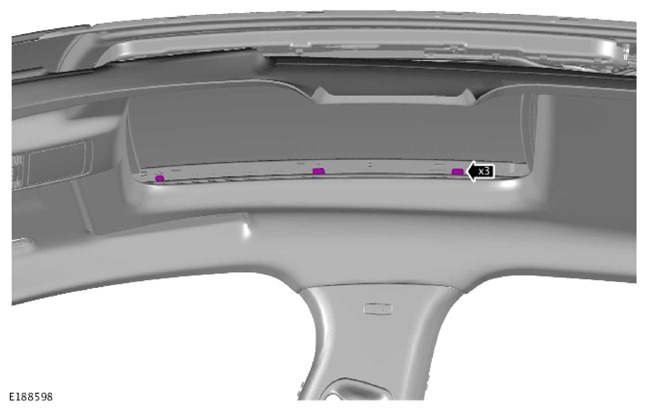

Torque : 5.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

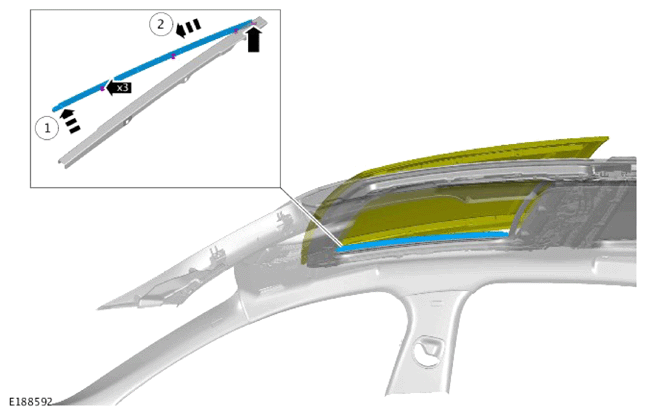

NOTE: This step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
