Roof Opening Panel Frame (G1851640): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Make the airbag supplementary restraint system (SRS) safe.
Refer to: STANDARD WORKSHOP PRACTICES
-
NOTE: Repeat the step for the other side.
Remove the side air curtain module.
Refer to: SIDE AIR CURTAIN MODULE

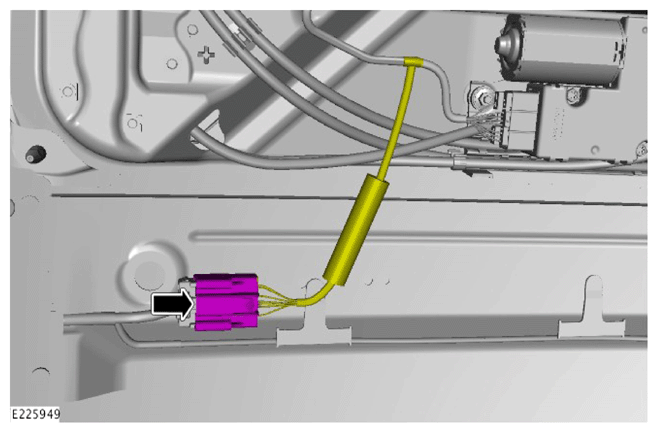

Disconnect the roof opening panel electrical connector.
-
NOTE: Repeat the step for the other side.

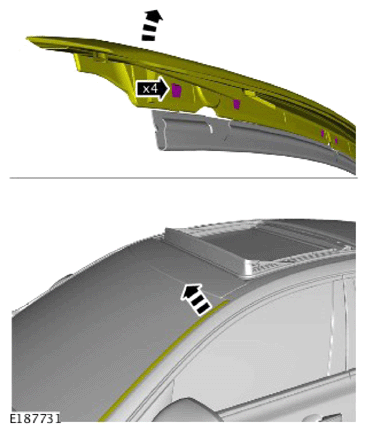

Remove the A-pillar outer finisher.
-
NOTE: Repeat this step for the other side.

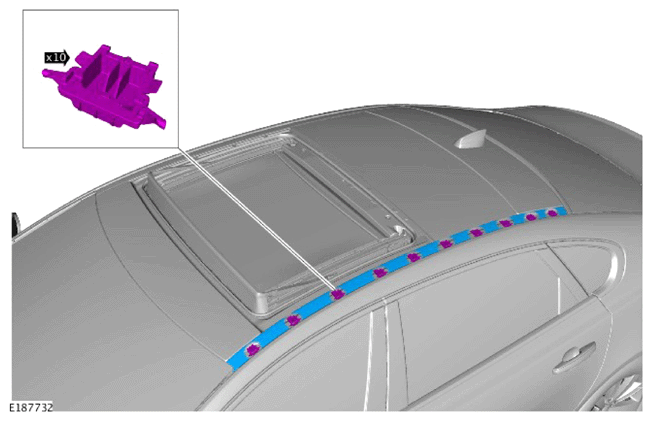

Remove the roof mouldings.

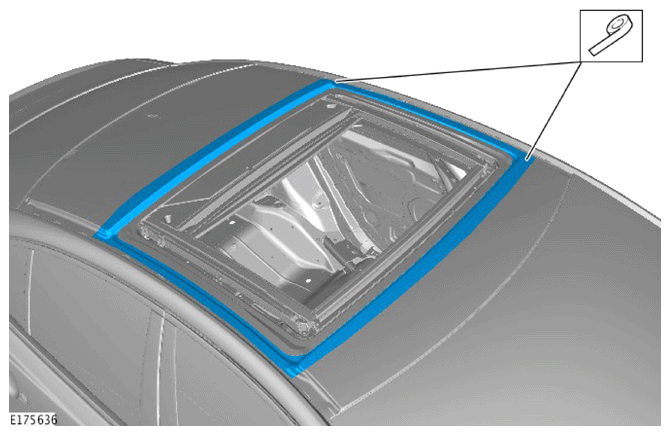

Using a suitable adhesive tape, protect the surrounding paintwork.
General Equipment: Adhesive tape
-
CAUTION: Make sure not to damage the alignment pins when cutting the bonding material.

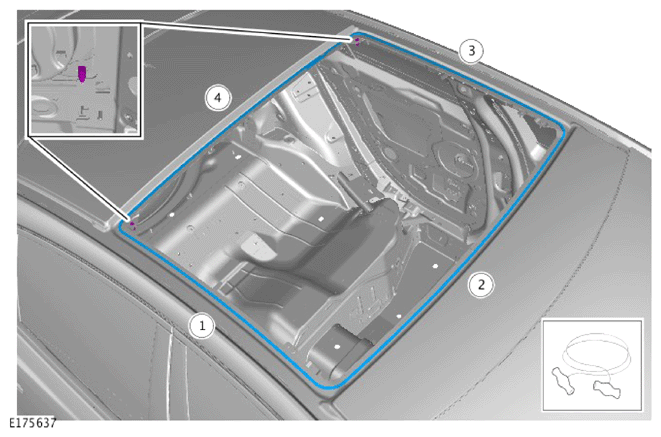

Use a glazing cutting wire to cut the adhesive.
General Equipment: Windscreen removal/installation equipment
-
NOTE: This step requires the aid of another technician.

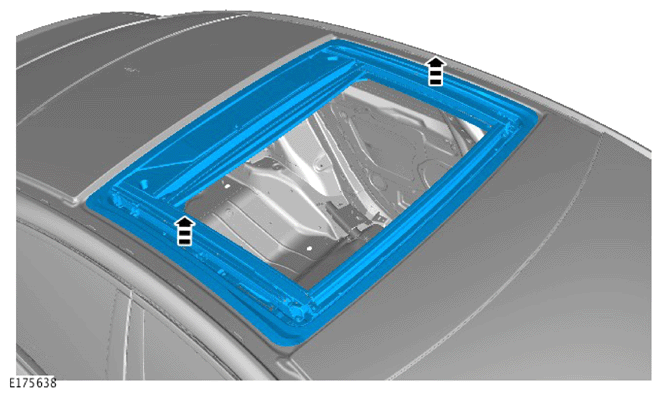

Remove the roof opening panel frame assembly.

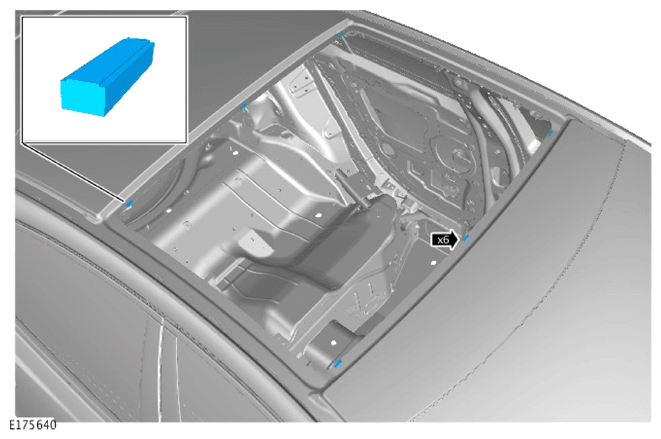

Remove and discard the 6 roof opening panel spacers.
