Instrument Panel Console - [+] Vehicles With Head Up Display (G2367422): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Take extra care not to damage the wiring harness clips.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: WINDSHIELD
Refer to: DRIVER SIDE REGISTER
Refer to: PASSENGER SIDE REGISTER
Refer to: FLOOR CONSOLE (G1851773)
Refer to: PASSENGER AIRBAG MODULE

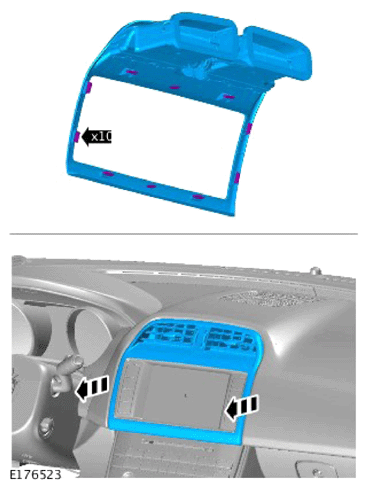

Refer to: AUDIO HEAD UNIT

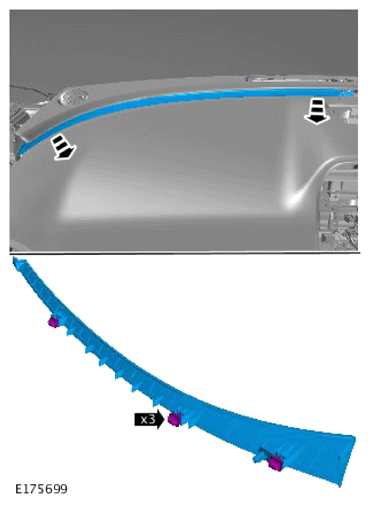

Refer to: A-PILLAR TRIM PANEL
Refer to: INSTRUMENT CLUSTER
Refer to: CLOCKSPRING
Refer to: SUNLOAD SENSOR

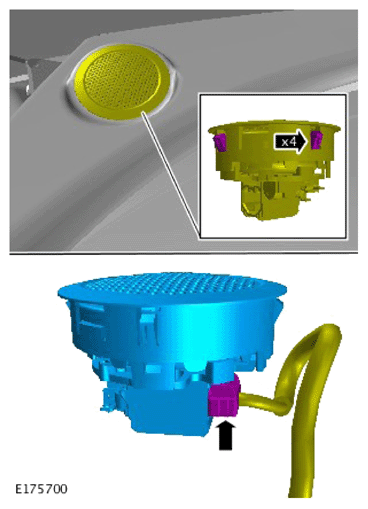

Refer to: INSTRUMENT PANEL SPEAKER
Refer to: IN-VEHICLE TEMPERATURE SENSOR

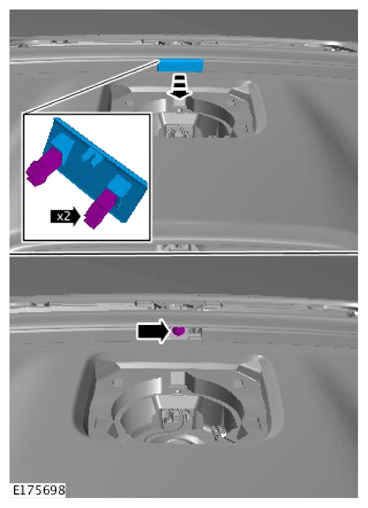

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

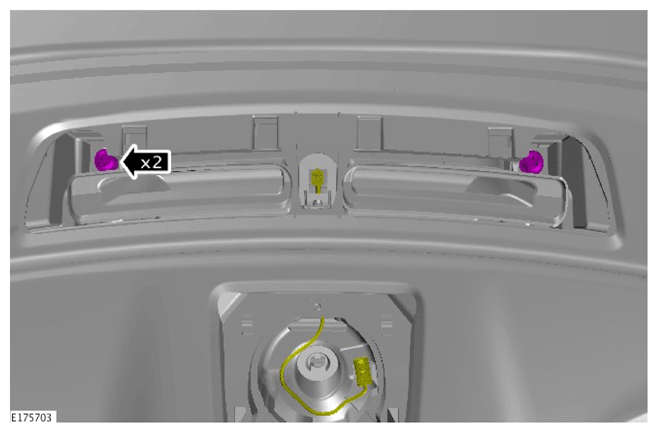

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Take extra care not to damage the component.

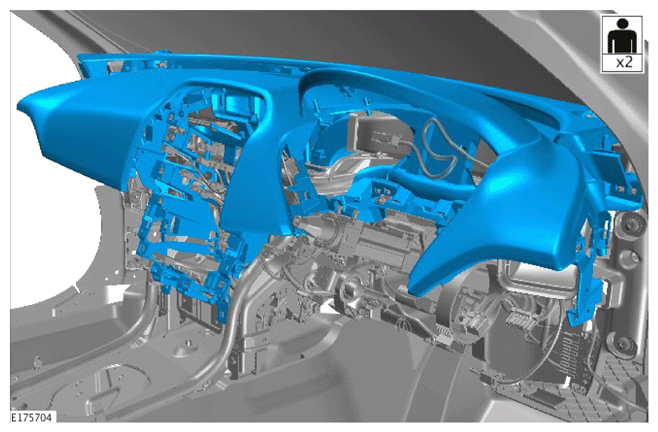

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm
CAUTION: Take extra care not to damage the component.

NOTE: Repeat step for the other side.

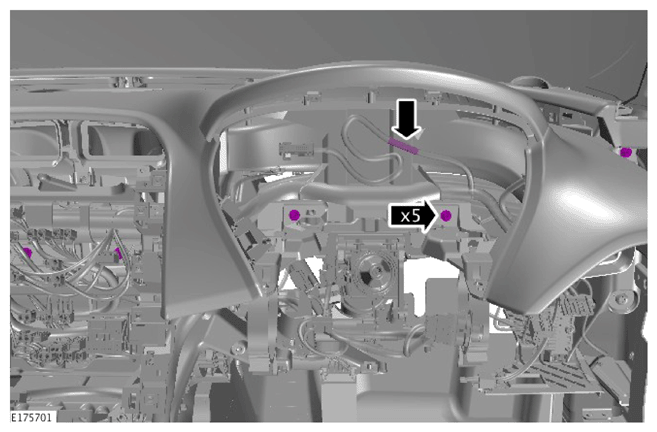

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Take extra care not to damage the component.

NOTE: Repeat step for the other side.

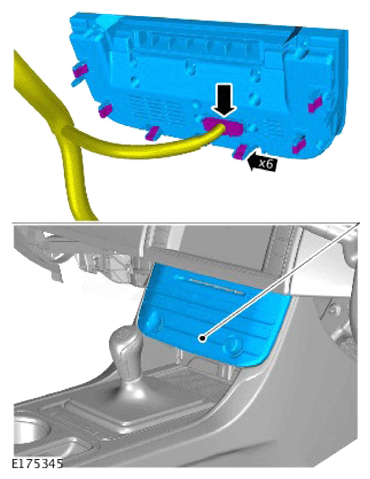

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

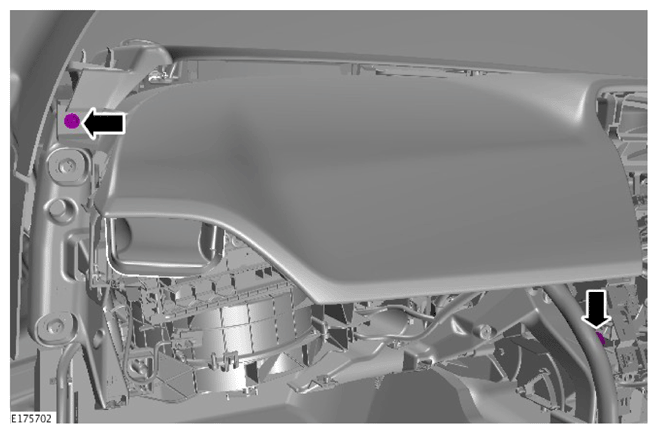

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 20Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm
CAUTION:
- Take extra care not to damage the component.
- Protect the surrounding paintwork to avoid damage.
- Protect the surrounding trim to avoid damage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
