Oil Pan (G2244089): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Always follow the fuel system health and safety precautions, when doing any repairs to the fuel system.

    Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING .

  3. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

  4. Drain the engine oil.

    Refer to: ENGINE OIL VACUUM DRAINING AND FILLING .

  5. Drain the front differential oil.

    Refer to: DIFFERENTIAL DRAINING AND FILLING .

  6. Remove the engine assembly.

    Refer to: ENGINE - AWD .

  7. G11285712Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s)  : JLR-303-1304

    • Install and tighten the 2 bolts.

      Torque  : 10Nm

  8. NOTE: Note the installed position of the supercharger belt.
    G11286497Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using a suitable tool release the tension from the supercharger belt.
    • Remove the supercharger belt.
  9. NOTE: Note the installed position of the accessory drive belt.
    G11286498Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using a suitable tool release the tension from the accessory drive belt.
    • Reposition the accessory drive belt away from the crankshaft pulley.
  10. NOTE: Note the installed position of the accessory drive belt.
    G11302301Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

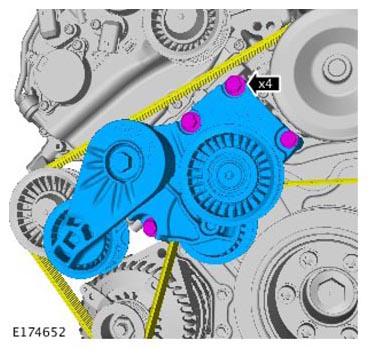

    Remove the 4 bolts and the accessory drive belt tensioner.

  11. NOTE: Note the installed position of the accessory drive belt.
    G11302302Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

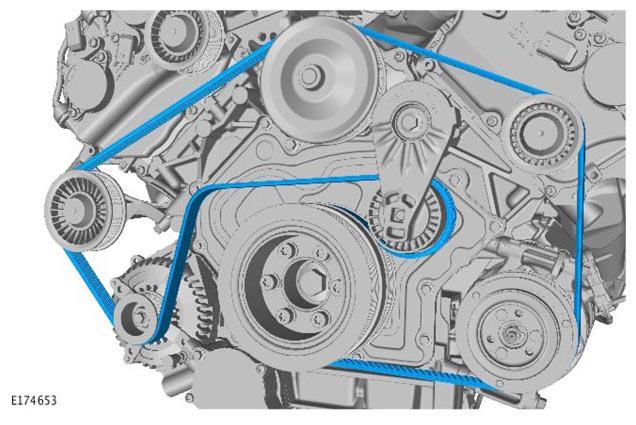

    Remove the accessory drive belt.

  12. G11284916Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 bolts.

  13. G11284917Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tools as illustrated.

    Special Tool(s)  : 303-1437, 303-1438

  14. G11284918Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 bolts.

    Torque  : 25Nm

  15. G11285712Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the special tool.

      Special Tool(s)  : JLR-303-1304

  16. G11284919Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable axle stand, support the special tools.

    Special Tool(s)  : 303-1437, 303-1438

    General Equipment  : Axle stands

  17. NOTE: The crankshaft pulley bolt will be very tight.
    G11284920Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to remove the crankshaft pulley bolt.

  18. G11285712Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s)  : JLR-303-1304

    • Install and tighten the 2 bolts.

      Torque  : 10Nm

  19. G11284918Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts from the special tool.
  20. G11284917Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tools.

    Special Tool(s)  : 303-1437, 303-1438

  21. G11284923Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the bolt.

  22. G11284924Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 bolts.

  23. G11284925Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s)  : 303-1440

  24. G11284926Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s)  : 303-1441

  25. G11284927Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s)  : 303-1439

    • Install and tighten the 4 bolts.

      Torque  : 25Nm

  26. G11284928Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable tool rotate the special tool counter clockwise.

  27. NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.
    G11284929Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the crankshaft pulley.

  28. G11284930Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the special tool from the crankshaft pulley.
  29. G11284931Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool from the crankshaft pulley.

  30. CAUTION: The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    G11309799Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool as illustrated.

      Special Tool(s)  : JLR-303-1304

      Torque  : 10Nm

    • Remove the 10 drive plate bolts.
    • Remove the drive plate.
  31. G14001333Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the front halfshaft support bearing.
  32. G11302470Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the protective cover away from the generator positive cable.

  33. G11299806Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the nut and reposition the positive cable away from the generator.

  34. G11299807Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the generator electrical connector.

  35. G11299808Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the generator.
  36. G11285429Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the vacuum pump.
  37. G11299688Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the idle pulley.
  38. G11285398Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the wiring harness clip.

  39. CAUTION: Be prepared to collect escaping fuel.
    G11299812Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Release the 2 unions and remove the fuel rail crossover line.
  40. CAUTION: Be prepared to collect escaping fuel.
    G11285400Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the union.
    • Remove the nut.
  41. G11299814Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 fuel pump electrical connectors.
    • Release the wiring clip and reposition away from the oil pan.
  42. G11299815Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the wiring harness clip.

  43. G11299816Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 wiring harness clips.

  44. G11299817Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the wiring harness away from the oil pan.

  45. G11299818Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the engine mount bracket.
  46. G11299819Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the cover from the fuel pump.
  47. CAUTION: Be prepared to collect escaping fuel.
    G11299820Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 2 unions and reposition the fuel delivery lines away from the fuel pumps.

  48. G11299821Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove bolt and reposition the fuel delivery lines away from the oil pan.

  49. CAUTION: Be prepared to collect escaping fuel.
    G11285412Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts from the High Pressure (HP) fuel pump lines.
    • Release the 2 unions.
    • Remove and discard the HP fuel pump lines.
  50. G11299823Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the covers from the HP fuel pumps.

  51. CAUTION: Be prepared to collect escaping oil.
    G11299824Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the 2 HP fuel pumps.
  52. NOTE: Be prepared to collect escaping oil.
    G11299825Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 2 fuel pump tappets from the oil pan assembly.

  53. G11299826Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the front differential assembly.
  54. G11299827Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the Crankshaft Position (CKP) sensor electrical connector.

  55. G11299828Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the CKP sensor.
  56. G11299829Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the oil level sensor electrical connector.
    • Release the 2 wiring harness clips.
    • Reposition the wiring harness away from the oil pan.
  57. G11299830Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 4 wiring harness clips.
    • Reposition the wiring harness away from the oil pan.
  58. CAUTION: Discard the component.
    G11299831Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 12 bolts.
    • Remove and discard the front cover.
  59. G11299832Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 bolts from the rear of the cylinder block.

  60. G11299833Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the wiring harness bracket as illustrated and reposition away from the oil pan.

  61. NOTE: Note the position of the bolts indicated prior to removal.
    G11299834Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 16 bolts from the oil pan.

  62. NOTE: Make sure to use the aluminum lug provided on the oil pan to lever against.
    G11299835Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable tool lever the oil pan assembly from the cylinder block.

  63. NOTE: Do not disassemble further if the component is removed for access only.
    G11299836Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the oil level sensor.
    • Remove and discard the oil level sensor O-ring seal.
